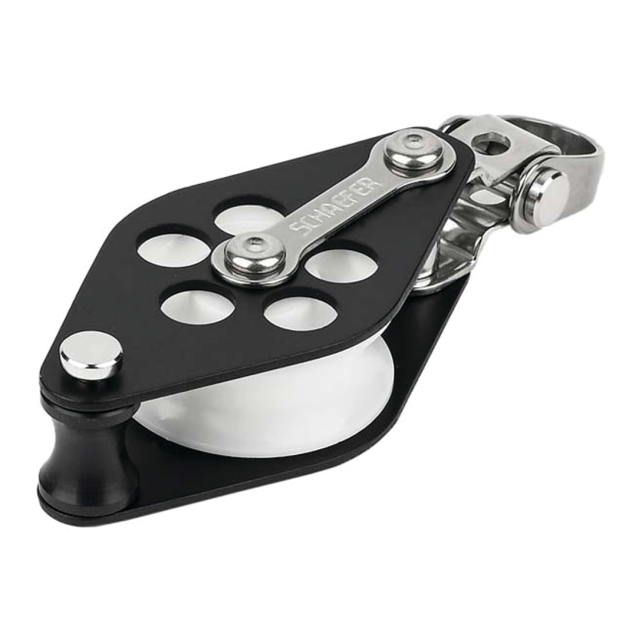

37 mm 3 Series Block - Front Side Shackle, Becket
37 mm 3 Series Block - Front Side Shackle, Becket
SKU: 28091 Item ID: SCH 303-13
Description
Schaefer's 3 Series blocks offer strong, high quality metal construction built to take the punishment associated with running rigging mounted on the deck or spars. Excellent for use on small cruisers, daysailors and high performance racing dinghies.
• Aluminum with white Delrin sheaves
• Sheave width: 9/16" (14mm)
• Pin diameter: 3/16" (5mm)
• SWL: 1,000 lbs. (410kg)
Specifications
MFG #:303-13
Material
Aluminum
Type
Front Side Shackle, Becket
Max Line
7/16" (11mm)
Weight
2.7oz. (76g)
SWL
1000 lbs (410kg)
Width
1-9/16" (40mm)
Length
4-1/2" (114mm)
Sheave Diameter
1-7/16" (37mm)
Barcode
740507003257
