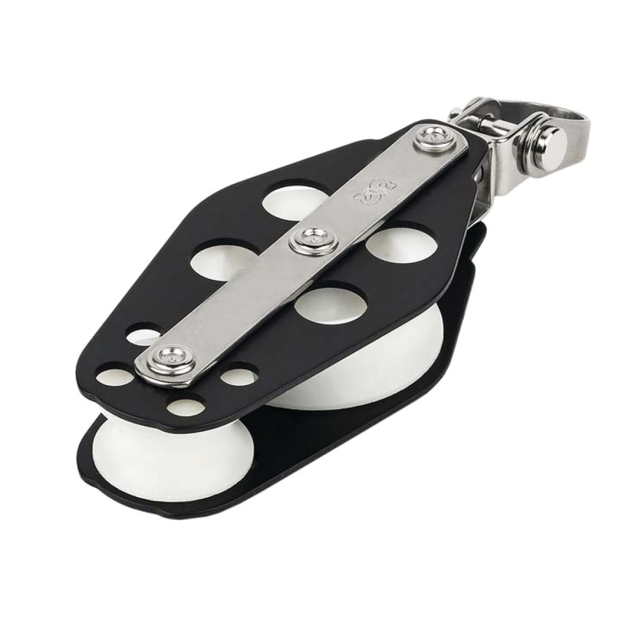

37 mm 3 Series Fiddle Block - Swivel
Description
Schaefer's 3 Series blocks offer strong, high quality metal construction built to take the punishment associated with running rigging mounted on the deck or spars. Excellent for use on small cruisers, daysailors and high performance racing dinghies.
• Aluminum with white Delrin sheaves
• Sheave width: 9/16" (14mm)
• Pin diameter: 3/16" (5mm)
• SWL: 1,000 lbs. (410kg)
Specifications
MFG #:303-45
Length
5-3/8" (137mm)
Material
Aluminum
Max Line
7/16" (11mm)
Sheave Diameter
1-7/16" (37mm)
SWL
1000 lbs (410kg)
Type
Fiddle, Swivel
Weight
4.4oz. (125g)
Width
1-7/8" (48mm)
Barcode
740507003349
