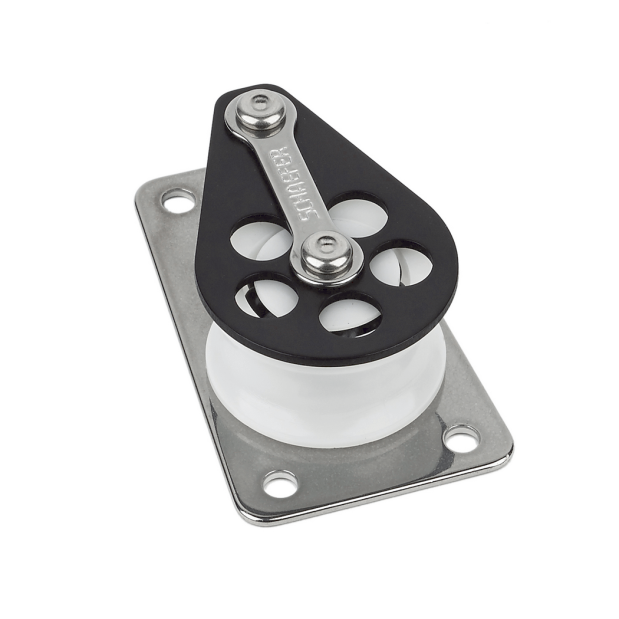

37 mm Flat Base Ball Bearing Cheek Block
CHEEK BALL BRG BLOCK 1000#SWL

37 mm Flat Base Ball Bearing Cheek Block

SKU: 173933 Item ID: SCH 300-09
Your Price:$108.15/ Each
Availability:
Special Order Only
Quantity:
Return Policy

Description

Flat, stainless base plate distributes load to a larger surface area than other designs which place loads on mounting bolts only. Use on spars and decks to lead sheets, halyards, reefing gear, and any control line requiring a strong, smooth lead.

• Base is polished stainless steel
• Cheek plate is black anodized aluminum
• Takes (4) #10 RH fasteners (5mm)

Are You a Pro?

Fisheries offers discounted pro pricing, real-time inventory and same-day shipping -- as well as our solid customer service reps.

Apply Now

Specifications

MFG #:300-09
SWL
1,000 lbs. (450kg)
Weight
2.5 oz. (71g)
Max. Line
7/16" (11mm)
Sheave Dia.
1-7/16" (37mm)
Length
2-7/8" (73mm)
Width
1-3/4" (44mm)
Height
3/4" (19mm)
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcodes
074050700296
740507002908
