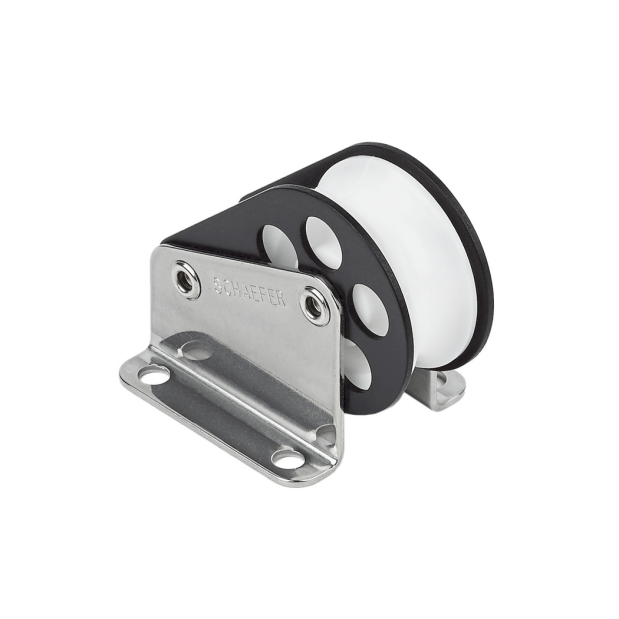

37 mm Halyard Control Lead Block
37 mm Halyard Control Lead Block
SKU: 28101 Item ID: SCH 303-50
Description
Leads external halyards, topping lifts and control line aft from the mast base. Delrin(tm) sheave ensures smooth operation and high strength. Stainless base and Anodized aluminum cheeks provide a solid platform.
• Polished stainless steel mounting flanges
• Cheek material is black anodized aluminum
Specifications
MFG #:303-50
Length
1-3/4" (44mm)
Max Wire
7/16" (11mm)
Sheave Dia.
1-7/16" (37mm)
SWL
1,000 lbs. (454kg)
Weight
3oz. (85g)
Width
1-5/8" (41mm)
Barcode
740507003356
