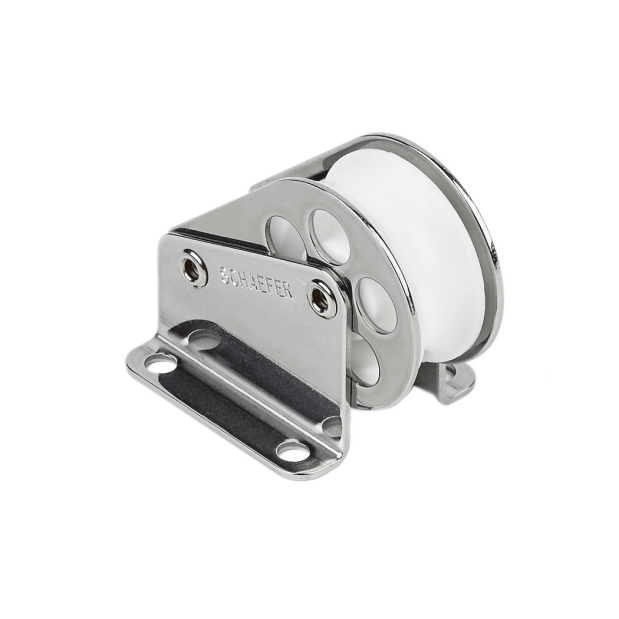

37 mm Halyard Lift Turning Block
Description
Leads halyard, toping lift and other control lines aft with ease. Block is mounted to bisect halyard load angle for maximum tensile strength.
• Polished stainless steel mounting flanges
• Polished stainless steel cheeks
• Delrin™ sheaves
• Takes (4) #10 RH fasteners (5mm)
Specifications
MFG #:03-50
Height
1-31/32" (50mm)
Length
1-3/4" (44mm)
Max Wire
7/16" (11mm)
Sheave Dia.
1-7/16" (37mm)
SWL
1,000 lbs. (454kg)
Weight
3.5oz. (99g)
Width
1-5/8" (41mm)
Barcode
740507000539
