Description

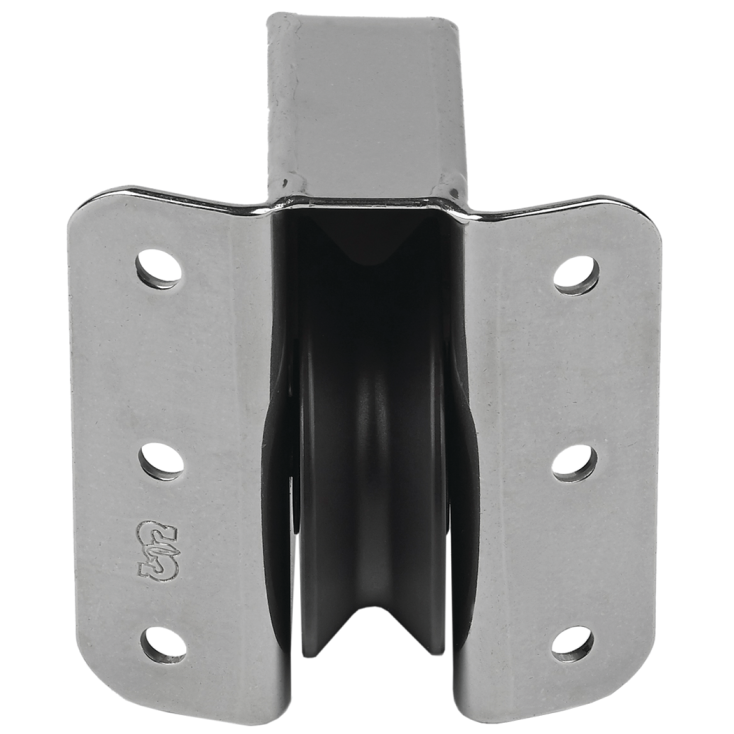

For leading halyards or control lines internally, Schaefer's exit boxes with stainless steel construction and spacers, plus aluminum sheaves handle high static halyard and reefing loads. The front of the cage is flared to fit curved mast sections with an approximante 3" radius. Takes (6) #10 RH fasteners (5mm).
Specifications
MFG #:34-35
Halyard Opening
1/2" (12mm)
Mast Slot
2-5/8" x 13/16" (67mm x 21mm)
Max Wire Size
3/16" (5mm)
Max. Line
1/2"
Sheave Dia.
2" (51mm)
SWL
2,250 lbs. (1020kg)
Weight
8.2oz. (234g)
Barcode
740507003899
