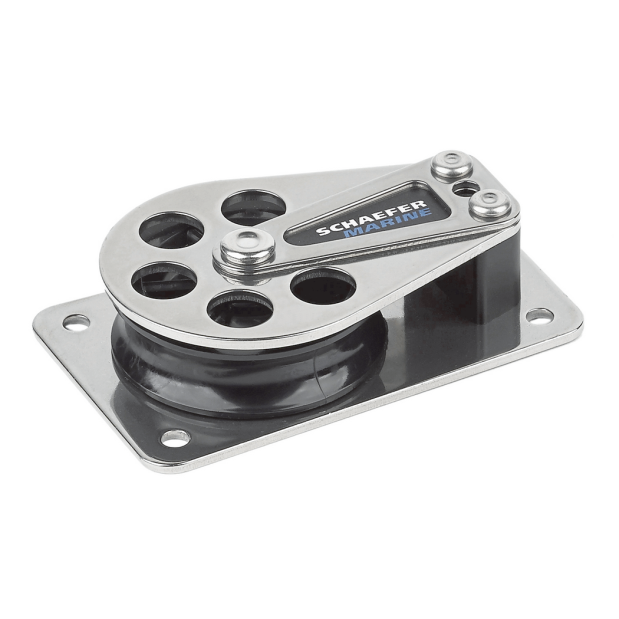

51 mm Flat Base Stainless Cheek Block
51 mm Flat Base Stainless Cheek Block
SKU: 136484 Item ID: SCH 505-11
Description
Flat, stainless base plate distributes load to a larger surface area than other designs which place loads on mounting bolts only. Use on spars and decks to lead sheets, halyards, reefing gear, and any control line requiring a strong, smooth lead.
• Base is polished stainless steel
• Cheek plate is black anodized aluminum
• Takes (4) #10 RH fasteners (5mm)
Specifications
MFG #:505-11
Height
7/8" (22mm)
Length
3-5/8" (92mm)
Material
Stainless
Max. Line
7/16" (11mm)
Sheave Dia.
2" (51mm)
Sheave Material
Delrin
SWL
1,750 lbs. (795kg)
Weight
6.9 oz. (196g)
Width
2-7/32" (57mm)
Barcode
740507011962
