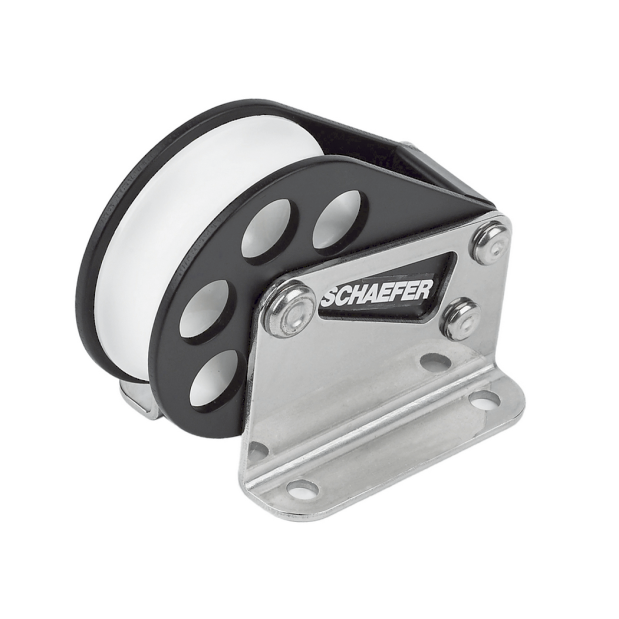

51 mm Halyard Control Lead Block
51 mm Halyard Control Lead Block
SKU: 47049 Item ID: SCH 504-60
Description
Leads external halyards, topping lifts and control line aft from the mast base. Delrin(tm) sheave ensures smooth operation and high strength. Stainless base and Anodized aluminum cheeks provide a solid platform.
• Polished stainless steel mounting flanges
• Cheek material is black anodized aluminum
Specifications
MFG #:504-60
Sheave Dia.
2" (51mm)
SWL
1,750 lbs. (795kg)
Max Wire
7/16" (11mm)
Weight
5.5oz. (156g)
Length
2-9/32" (58mm)
Width
1-5/16" (49mm)
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
740507011795
