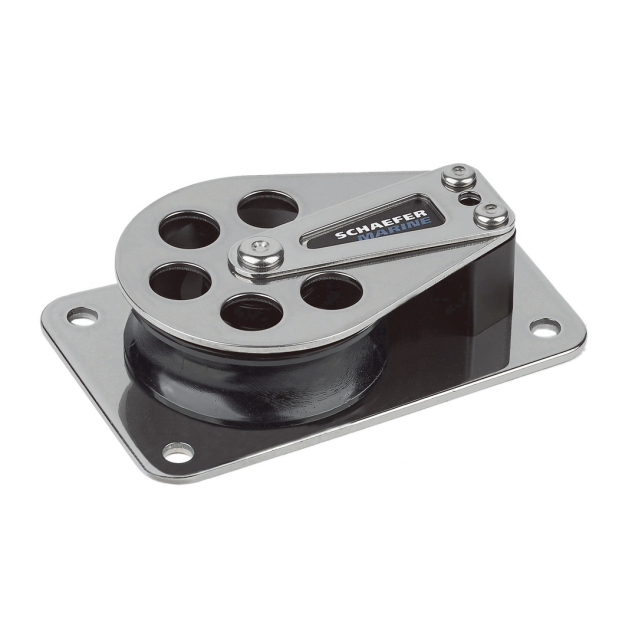

60 mm Flat Base Cheek Block - SS Cheek, Alum. Shv
SCH 705-10 CHEEK BLOCK SS ALUM SHEAVE

60 mm Flat Base Cheek Block - Alum. Sheave

SKU: 169600 Item ID: SCH 705-10
  • Stainless steel cheek
  • Aluminum sheave
  • Polished stainless base
Your Price:$195.22/ Each
Availability:
Special Order Only
Quantity:
Return Policy

Description

Flat, stainless base plate distributes load to a larger surface area than other designs which place loads on mounting bolts only. Use on spars and decks to lead sheets, halyards, reefing gear, and any control line requiring a strong, smooth lead.

• All bases are polished stainless steel
• SWL of Series 7 blocks is 2250 lbs. (1020kg)

Are You a Pro?

Fisheries offers discounted pro pricing, real-time inventory and same-day shipping -- as well as our solid customer service reps.

Apply Now

Specifications

MFG #:705-10
Cheek Material
Stainless
Length
4-3/8" (111mm)
Max. Line
1/2" (13mm)
Sheave Dia.
2-3/8" (60mm)
Sheave Material
Aluminum
SWL
2,250 lbs. (1020kg)
Weight
12.4 oz. (351g)
Width
2-3/4" (70mm)
Barcode
740507010996
