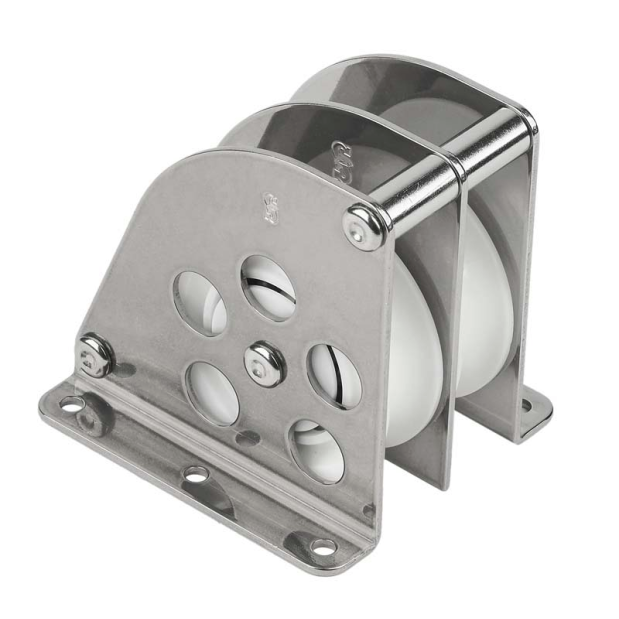

Double Over-The-Top Ball Bearing Block
60 mm Double Over-The-Top Block
SKU: 179338 Item ID: SCH 706-41
Description
Schaefer "Over The Top" blocks are designed to guide halyards and control lines up and over cabinhouses, coamings, or rails.
• Polished stainless steel cages
• Ball bearing sheaves for low friction
• Uses (6) #10 RH fasteners (5mm)
Specifications
MFG #:706-41
Bearing Height
2-5/16" (58mm)
Height
3-7/16" (87mm)
Length
3-3/8" (86mm)
Max. Line
1/2" (13mm)
Sheave Dia.
2-3/8" (60mm)
SWL
1,200 lbs. (545kg)
Weight
1 lb. 2 oz. (510g)
Width
3-5/32" (80mm)
Barcodes
740507011245
074050701125
074050701125
