60 mm 7 Series Utility Block/Mast Collar
Image Coming Soon

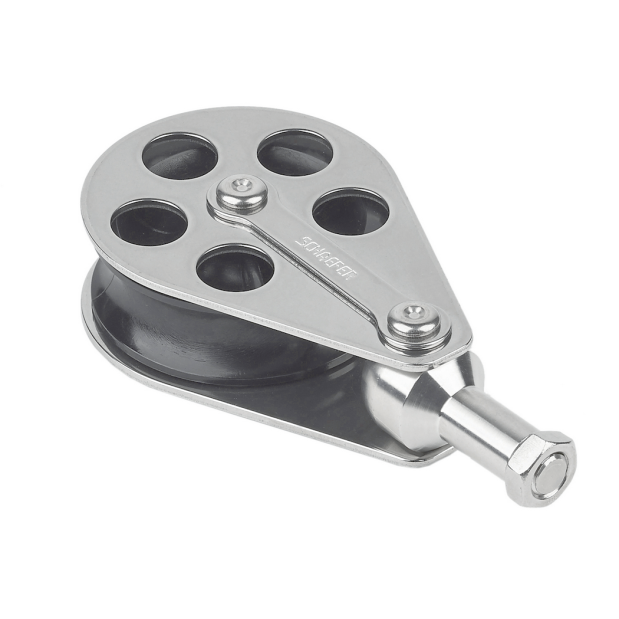

SCH 705-20 ISOMAT MAST COLLAR BLOCK
Image Coming Soon
SCH 705-20 ISOMAT MAST COLLAR BLOCK

60 mm 7 Series Utility Block/Mast Collar

SKU: 168966 Item ID: SCH 705-20
  • 2-3/8" Delrin sheave
  • 1/2" Max line
  • 2250 lbs SWL
Your Price:$170.13/ Each
Availability:
Special Order Only
Quantity:
Return Policy

Description

705-20 fits Isomat mast collar with a pin diameter of .510". Stainless steel cheeks and Delrin™ sheave ensure smooth operation and high safe working load.

Are You a Pro?

Fisheries offers discounted pro pricing, real-time inventory and same-day shipping -- as well as our solid customer service reps.

Apply Now

Specifications

MFG #:705-20
Sheave Diameter
2-3/8" (60 mm)
Max Line
1/2" (13 mm)
Pin Diameter
.510 Hole
Length
3-23/32" (94 mm)
Width
2-1/2" (64 mm)
Thickness
1" (25 mm)
Safe Working Load
2250 lb (1020 kg)
Weight
1 lb. 3 oz (539 g)
