1IN X 1/8IN X 8FT SILVER T-TRACK
Share THIS PAGE:

Silver Anodized Aluminum T-Track

1" & 1-1/4" Widths • Silver Anodized 6061-T6 Aluminum T-Track

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Schaefer aluminum T-track incorporates a concave-shaped riser that allows the track to remain steady when mounted on curved surfaces like masts or booms. The shaped bottom also holds sealant well when mounting on decks and cap rails.

This T-track is precision machined for proper countersink depths on fastener and stop pin holes.
All Schaefer T-track now comes with additional pin-stop holes at 1-3/8" intervals for finer adjustment of car position and sheeting angle. So you now get three adjustment holes between fasteners instead of just one.

3/4" track — measures 3/4" x 1/8" and uses #10 flat head fasteners spaced every 3 inches. The pin-stop holes are 1/4" in diameter, and the matching cosmetic end stops are SCH 74-34
1" track — measures 1" x 1/8" and uses 1/4" flat head fasteners spaced every 4 inches. The pin-stop holes are 1/4" in diameter, and the matching cosmetic end stops are SCH 74-35
1-1/4" track — measures 1-1/4" x 3/16" and uses 5/16" flat head fasteners spaced every 4 inches. The pin-stop holes are 3/8" in diameter, and the matching cosmetic end stops are SCH 74-36
1-1/2" track — measures 1-1/2" x 1/4" and uses 3/8" flat head fasteners spaced every 4 inches. The pin-stop holes are 7/16" in diameter, and the matching cosmetic end stops are SCH 74-39

This track is also available with black anodizing. See Related Products, below.

Note — due to its length, track over 8 ft in length must be shipped via truck or air freight.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDSchaefer Marine#AvailabilityDescriptionUOMYour PriceQTY

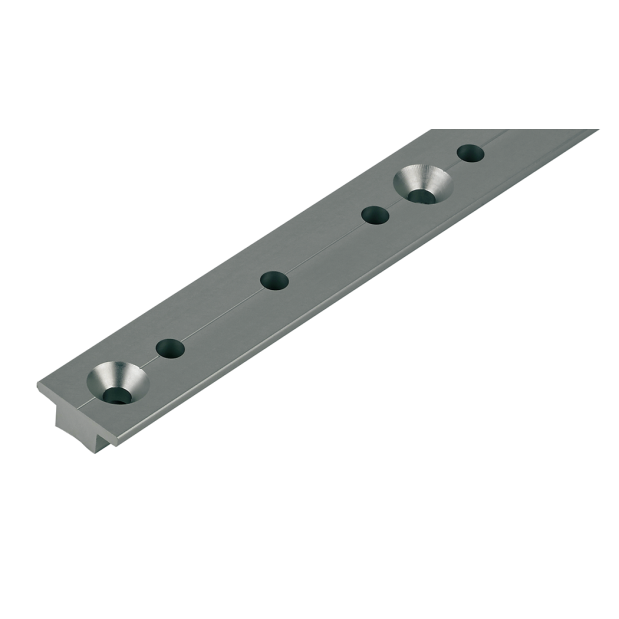

186466SCH 40-62-C 40-62-CLoading...1" Silver Anodized Aluminum T-Track - 2 ftLoading...
186467SCH 40-64-C 40-64-CLoading...1" Silver Anodized Aluminum T-Track - 4 ftLoading...
186468SCH 40-66-C 40-66-CLoading...1" Silver Anodized Aluminum T-Track - 6 ftLoading...
186469SCH 40-68-C 40-68-CLoading...1" Silver Anodized Aluminum T-Track - 8 ftLoading...
186470SCH 40-70-C 40-70-CLoading...1" Silver Anodized Aluminum T-Track - 10 ftLoading...
194018SCH 40-120C 40-120CLoading...1" Silver Anodized Aluminum T-Track - 12 ftLoading...

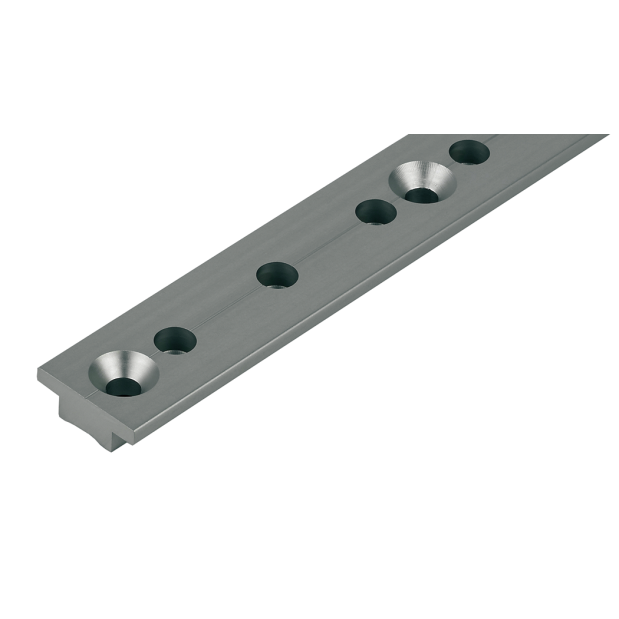

186471SCH 40-72-C 40-72-CLoading...1-1/4" Silver Anodized Aluminum T-Track - 2 ftLoading...
186472SCH 40-74-C 40-74-CLoading...1-1/4" Silver Anodized Aluminum T-Track - 4 ftLoading...
184086SCH 40-76-C 40-76-CLoading...1-1/4" Silver Anodized Aluminum T-Track - 6 ftLoading...
186474SCH 40-78-C 40-78-CLoading...1-1/4" Silver Anodized Aluminum T-Track - 8 ftLoading...
181806SCH 40-80-C 40-80-CLoading...1-1/4" Silver Anodized Aluminum T-Track - 10 ftLoading...
186475SCH 40-82-C 40-82-CLoading...1-1/4" Silver Anodized Aluminum T-Track - 12 ftLoading...
Add To Cart
