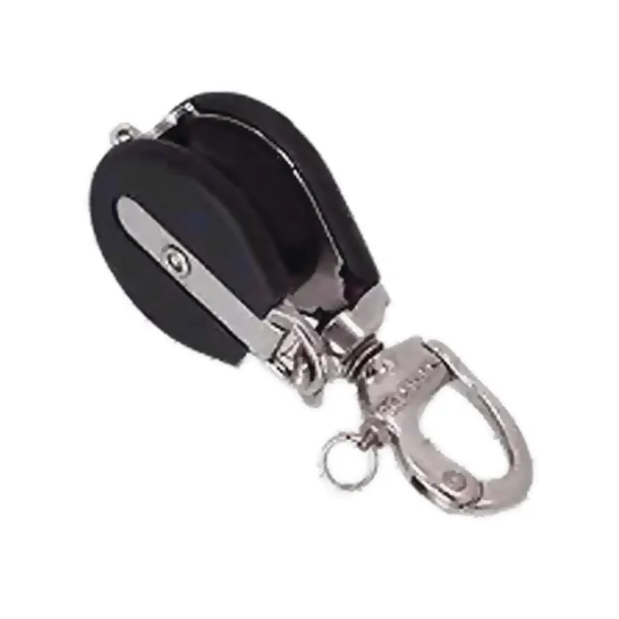

76 mm Snatch Block - Snap Shackle
76 mm Snatch Block - Snap Shackle
SKU: 170042 Item ID: SCH 11-99
Description
The 11-99 is Schaefer's largest snatch block. Featuring a powerful 3" aluminum sheave and safe for loads up to 5000 lbs (2270kg) the 11-99 has innumerous applications. Aluminum sheave runs on nomex(tm)/Teflon(tm) bearing for low friction yet high strength. Urethane cheek covers over a stainless steel body provide an abundance of strength.
• Sheave Dia. 3" (76 mm)
• Max Line 3/4" (19 mm)
• Boat Size Up To LOA, Displ., Sail Area 45', 30000 lbs., 900 sq. ft. (13.6 m, 13636 kg, 83.6 m2)
• SWL 5000 lbs. (2270 kg)
Specifications
MFG #:11-99
Length
7-15/16" (202mm)
Max. Line
3/4" (19mm)
Sheave Dia.
3" (76mm)
SWL
5,000 lbs. (2270kg)
Weight
2 lbs. 7oz.
Width
3-5/8" (92mm)
Barcodes
074050700180
740507001857
740507001857
