Twin Sheet Lead Blocks

Extra Wide Sheave Allows for the Passage of Two Jib Sheets

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
During sail changes, the ability to lead twin sheets allows for the option of hoisting the new jib before lowering the old one.
Additionally, the hour-glass sheave and tilting cage allow for line entrance and exit angles of as much as 15° to either side of the track. This increases the options for sheet leads and winch placement.

• Ideal on racing boats to allow quick sail changes
• Low profile design keeps sheets close to the deck for proper lead to deck mounted winches
• Aluminum sheaves turn on low-friction Nomex/Teflon® bearings
• Spring pin stops allow quick adjustment for changing wind conditions

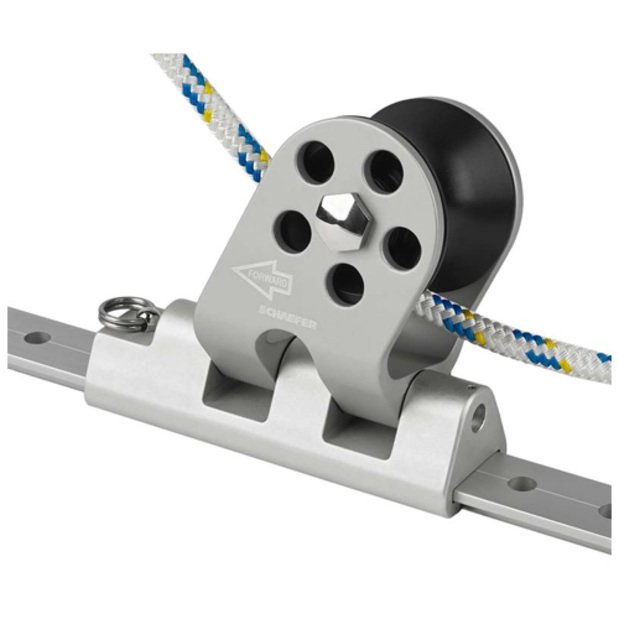

• The extra beefy model #32-58 has a canted sheave cage which results in a higher working load

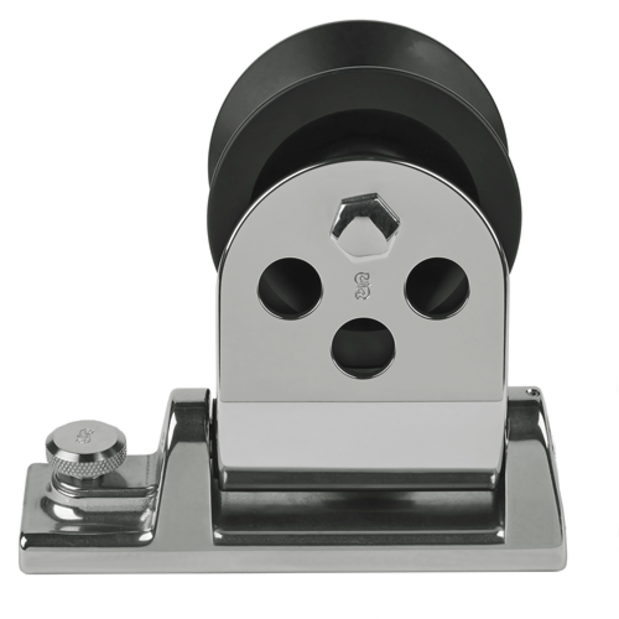

• The big boat, stainless model 32-89 has a stainless steel screw-style locking pin

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDSchaefer Marine#AvailabilityDescriptionUOMYour PriceQTY

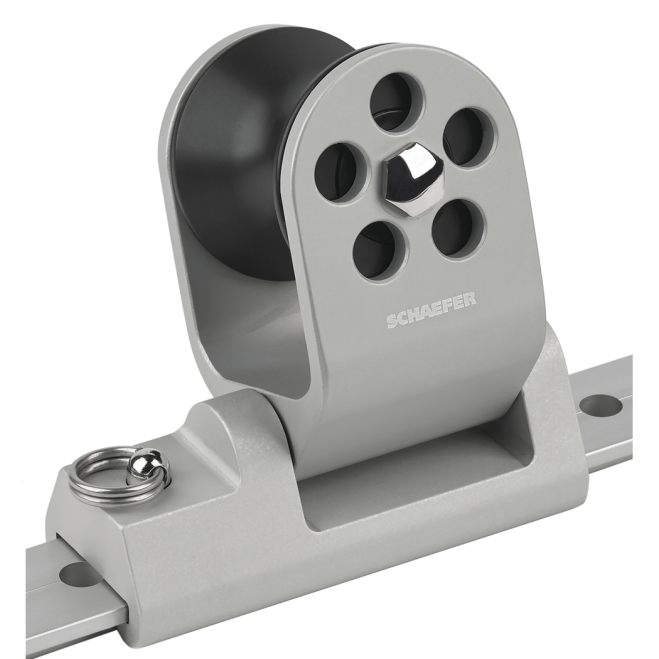

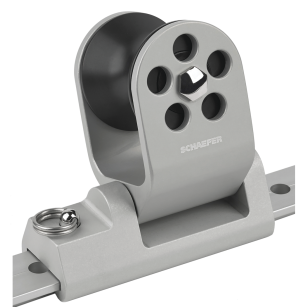

208580SCH 32-88 32-88Loading...Twin Sheet Lead Blocks, 1" T-Track Silver Aluminum (2500 lb SWL), 3-1⁄2"L x 1-11⁄32"W x 3-9⁄32"HLoading...

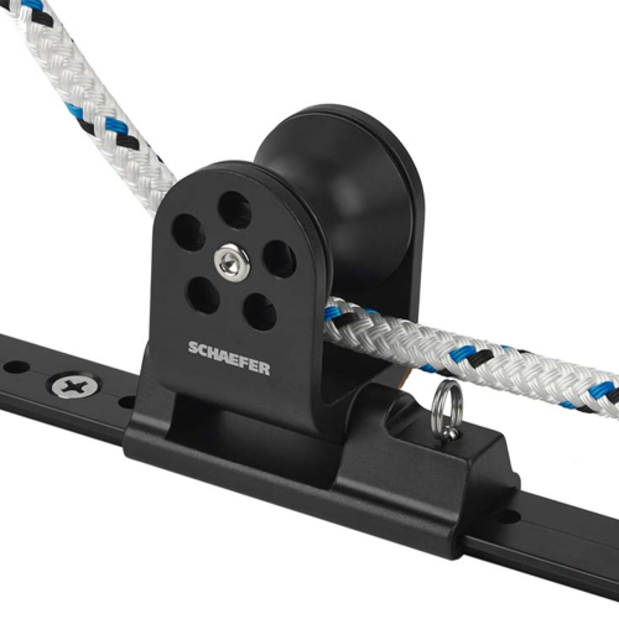

49040SCH 32-77 32-77Loading...Twin Sheet Lead Blocks, 1" T-Track Black Aluminum (2500 lb SWL), 3-1⁄2"L x 1-11⁄32"W x 3-9⁄32"HLoading...

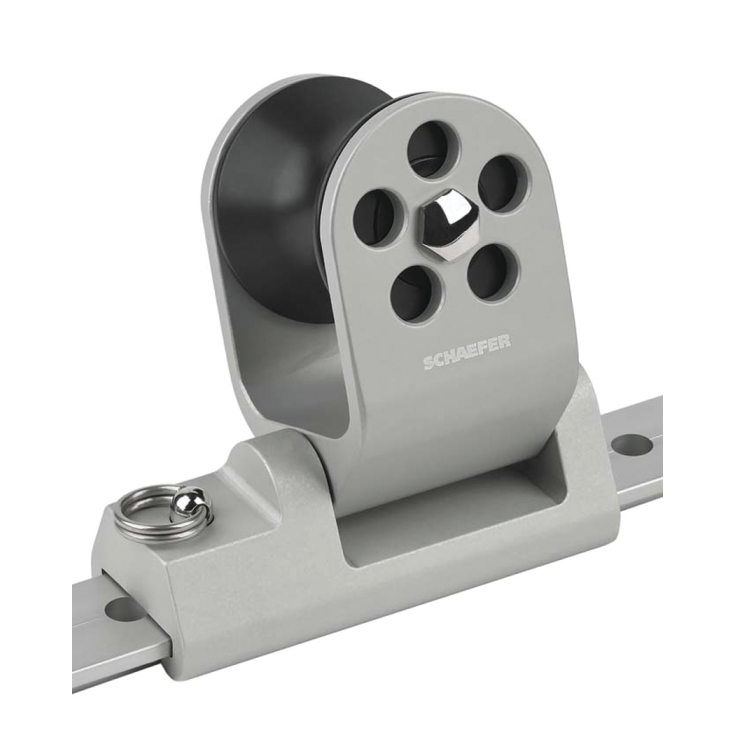

49041SCH 32-98 32-98Loading...Twin Sheet Lead Blocks, 1-1⁄4" T-Track Silver Aluminum (3500 lb SWL), 4-1⁄2"L x 1-3⁄4"W x 4-1⁄2"HLoading...

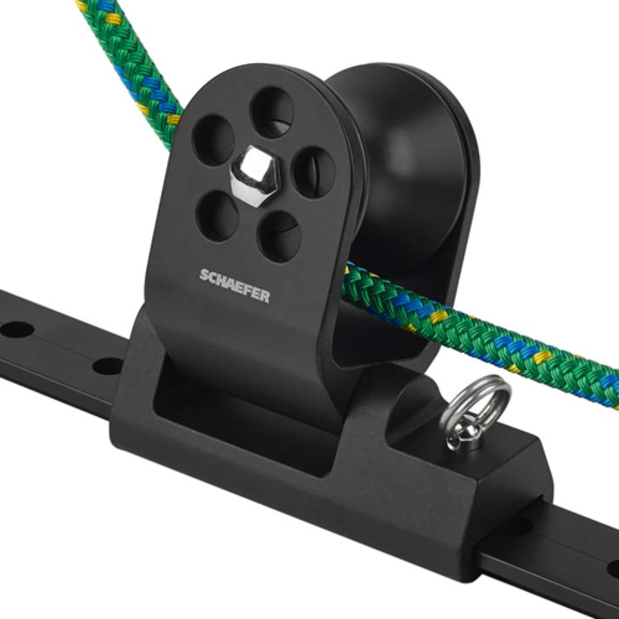

27769SCH 32-97 32-97Loading...Twin Sheet Lead Blocks, 1-1⁄4" T-Track Black Aluminum (3500 lb SWL), 4-1⁄2"L x 1-3⁄4"W x 4-1⁄2"HLoading...
87310SCH 32-58 32-58Loading...Twin Sheet Lead Blocks, 1-1⁄4" T-Track Silver Aluminum (4400 lb SWL), 5-7⁄8"L x 1-3⁄4"W x 5-1⁄8"HLoading...
382986SCH 32-82 32-82Loading...Loading...
18012SCH 32-89 32-89Loading...Twin Sheet Lead Blocks, 1-1⁄2" T-Track Silver Stainless (10000 lb SWL), 6-3⁄4"L x 1-15⁄16"W x 6-7⁄32"HLoading...
