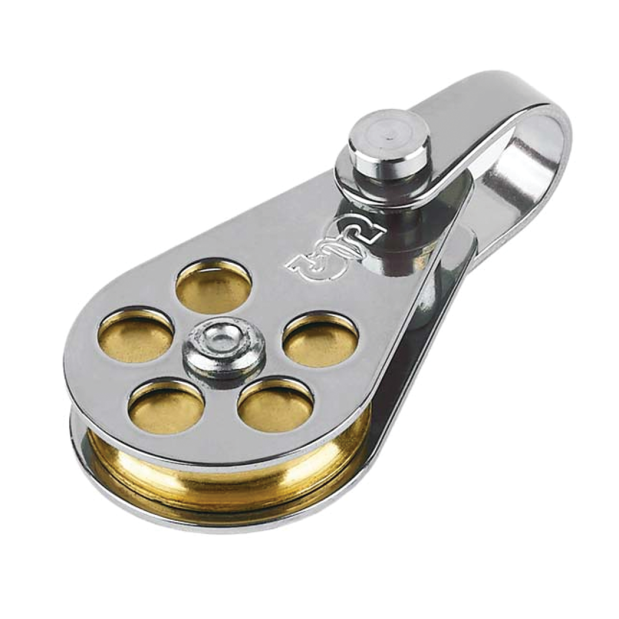

27 mm Wire Block - Bronze Sheave
Description
Wire blocks with narrow heads and sheaves incorporate a full radius score to provide support to the rated wire size. Stainless cheeks offer high abrasion and chafe resistance, and swing open to accept swaged or nicropressed wires. Bronze sheave runs on a Nomex™/Teflon™ bearing for low friction and high safe working load.
Specifications
MFG #:33-02
Length
2-19/32" (66mm)
Max. Wire Dia.
1/8" (3mm)
Pin
3/16" (5mm)
Sheave Dia.
1-1/16" (27mm)
SWL
900 lb (410 kg)
Weight
1.75 oz. (50g)
Width
1-3/16" (30mm)
Barcode
740507003776
