Rail Mount Antenna Bracket

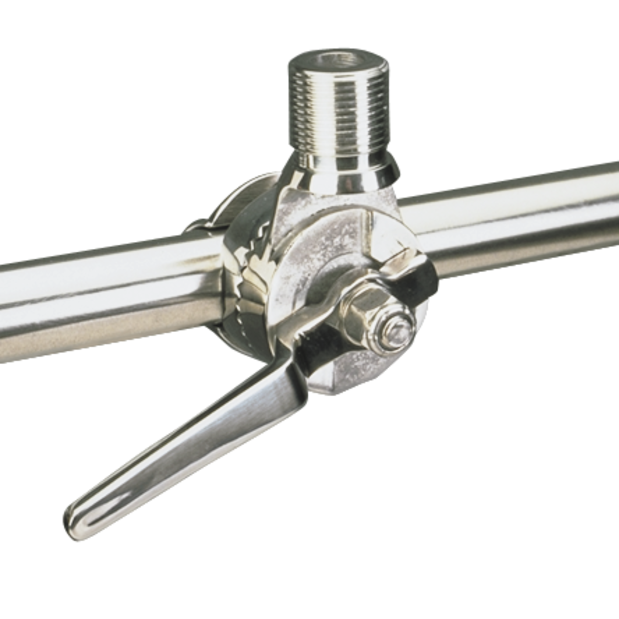

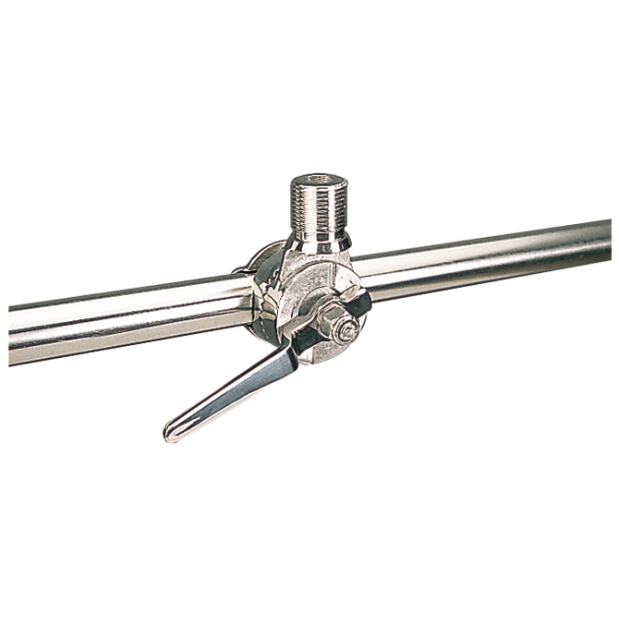

The SEA-DOG LINE Rail Mount Antenna Bracket (Model 327145-1) is a high-quality marine hardware component designed for durability and versatility in challenging marine environments. Engineered from investment-cast 316 stainless steel, this antenna bracket supports secure mounting of Loran, GPS, and CB antennas on both vertical and horizontal rails, making it indispensable for boaters seeking reliability and ease of use. Its ratcheting lever system simplifies antenna lowering for bridge clearance or storage, while its corrosion-resistant construction ensures longevity in saltwater conditions.

Universal Rail Compatibility

A standout feature of this bracket is its adaptability to both 7/8" and 1" diameter rails, whether vertical or horizontal. This flexibility allows boaters to install antennas on handrails, mast bases, or other tubular structures without requiring custom fittings. The dual-size clamping mechanism employs UV-stabilized nylon inserts to prevent galvanic corrosion between the stainless steel bracket and aluminum rails, a common issue in mixed-metal marine applications.

Functional Design for Practical Boating Needs

• Ratcheting Lay-Down Mechanism: The lever-actuated ratchet system enables single-handed operation to lower antennas up to 8 feet in length, a critical feature when navigating low bridges or preparing for trailering. This mechanism locks securely in both upright and stowed positions, minimizing vibration-induced loosening during transit. However, SEA-DOG explicitly advises against using whips exceeding 8 feet due to increased torque stress on the mounting point.
• Antenna Compatibility and Thread Specifications: Designed for antennas with standard 1"-14 UNF threaded bases, the 327145-1 accommodates most VHF, GPS, and AIS antennas on the market. The through-base wiring channel facilitates clean cable routing, reducing trip hazards and protecting connections from moisture ingress. For users requiring permanent installations, SEA-DOG’s fixed-base variant (Model 327141-1) offers a non-ratcheting alternative with similar material specs.

Mounting Orientation Considerations

While the bracket functions equally well on vertical and horizontal rails, optimal signal performance requires vertical antenna alignment. When installing on horizontal rails, ensure the antenna whip remains perpendicular to the waterline to maintain polarization efficiency. Torque specifications recommend tightening mounting bolts to 25-30 lb-ft using a marine-grade thread locker to prevent loosening from wave impact.

Preventative Maintenance Schedule

Despite its corrosion-resistant construction, biannual inspections are advised:

• Disassemble and Clean: Annually remove the bracket to flush sand and salt crystals from threaded components using fresh water.
• Lubrication: Apply dielectric grease to the ratchet mechanism’s pivot points and threading to ensure smooth operation.
• Hardware Check: Replace any nylon lock nuts showing UV degradation or thread deformation.

Frequently Asked Questions

Can this bracket support a 10-foot VHF antenna?
No. SEA-DOG explicitly recommends against using whips exceeding 8 feet due to excessive leverage stress on the ratchet mechanism. For taller antennas, consider a deck-mounted base with reinforced backing plates.

Is this bracket compatible with aluminum radar arches?
Yes, provided the arch’s tubing diameter falls between 7/8" and 1". Use insulating nylon inserts included with the bracket to prevent galvanic corrosion between stainless steel and aluminum.

How does the 316 stainless steel compare to 304 in marine environments?
316 stainless contains 2-3% molybdenum, enhancing resistance to chlorides and acidic conditions found in seawater. 304 lacks molybdenum, making it prone to pitting in saltwater over time.
