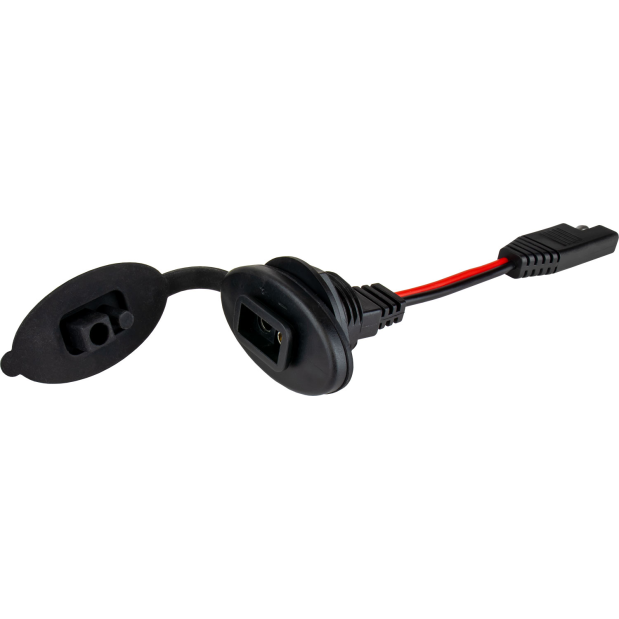

426955-1 of Sea-Dog Line SAE Power Socket - Back Nut Mount
diagram of Sea-Dog Line SAE Power Socket - Back Nut Mount
426955-1 of Sea-Dog Line SAE Power Socket - Back Nut Mount
diagram of Sea-Dog Line SAE Power Socket - Back Nut Mount

SAE Power Socket - Back Nut Mount

SKU: 1026526 Item ID: SDL 426955-1
  • 12/24V DC
  • 20A Max at 12V
Your Price:$12.87/ Each
Availability:
Special Order Only
Quantity:
Each
Return Policy

Description

Polarized Electrical Connector is an SAE type, two-prong plug and socket connector set. Great for Solar panel connections and battery maintaining. 14-gauge duplex wire. Installation is as easy as drilling a 7/8" hole, inserting the socket body, tightening the locking nut and connecting the wires. 20A. 12-24 VDC.
• Volts 12-24
• Max Amps 20a @ 12v
• Wire Gauge 14 AWM

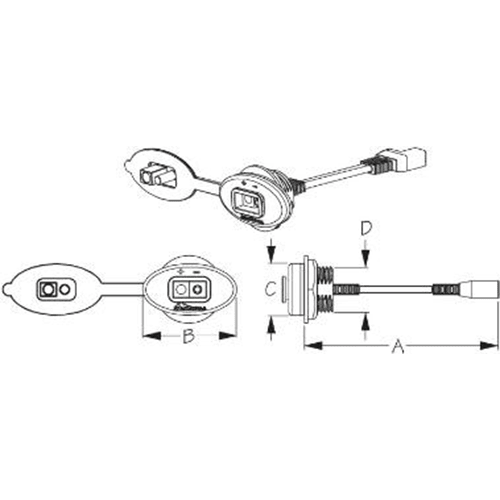

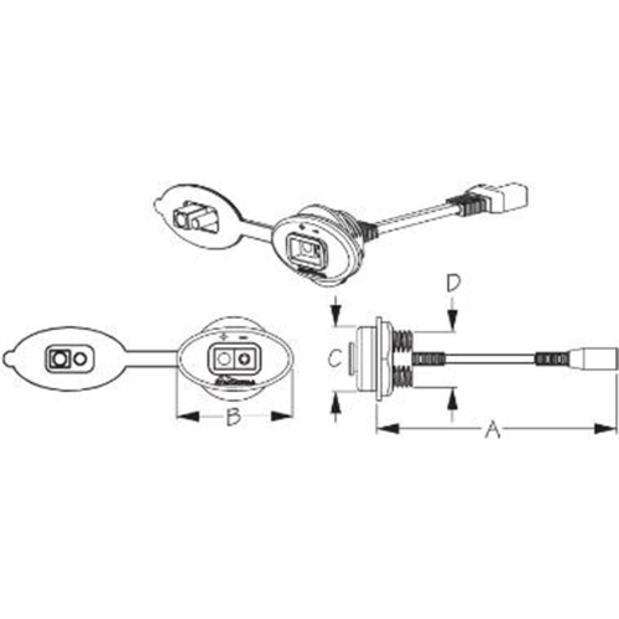

• A 5"
• B 1-13/16"
• C 1"
• D 7/8"

Specifications

MFG #:426955-1
