Description

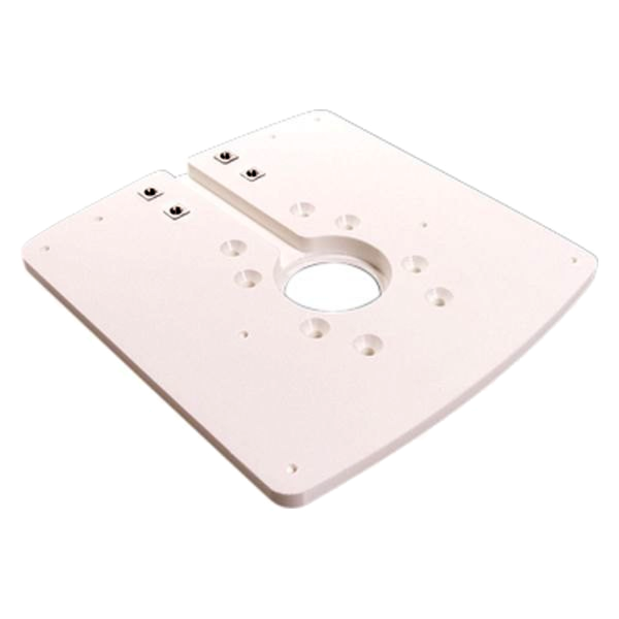

This top plate is pre-drilled for attachment to Seaview modular instrument mounts, and is for use with the radars listed below.
There are dimple holes on the upper surface of the top plate that match up with an included drill template, allowing you to precisely drill the appropriate holes for your specific radar.
The end result is a nice clean look with no unwanted visible holes.
The ADA-R2 top plate is constructed of an anodized aluminum plate encased in thick, UV-stable, white ABS plastic.
The aft end has pre-drilled holes for an optional light bar for mounting accessories such as a light or GPS antenna.
Note that you should select a top plate only after you have chosen an appropriate modular mount for your installation.
Your choice of mount will, in part, determine which top plates you can use.
This top plate, should only be used with M1 style mounts (7" x 7" base)
If you choose to install a modular light bar to mount an accessory, choose the model LTB-R for all radome installations, and the model LTB-OA for the Furuno open array.
Use the ADA-R2 top plate with these radars and any M1 style modular mount:
• Furuno 1942 open array radars
• JRC 24" radar domes
• Lowrance LRA 2400HD 24" radar domes
• Northstar 24" HD radar domes
• Simrad 24" HD radar domes
