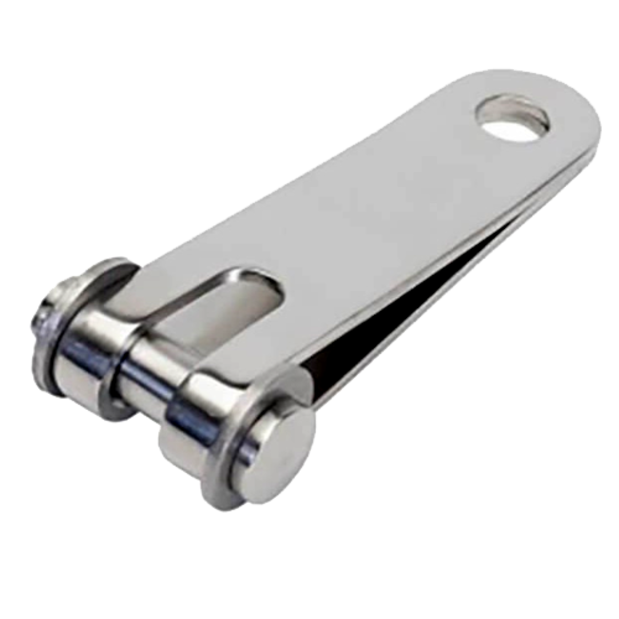

Eye/Fork Extension Link
Eye/Fork Extension Link
Eye/Fork Extension Link, 8 or 10mm Forestay w/16.5mm Eye Dia.
SKU: 204573 Item ID: SLD 517-062-01
Description
When roller furlers are installed on boats with bow anchors or windlasses, it is sometimes necessary to use an extension link to raise the drum of the furler to clear the obstruction. A standard double jaw (fork/fork) toggle should always be fitted between the extension link and the forestay attachment of the boat in order to achieve proper articulation in all directions.

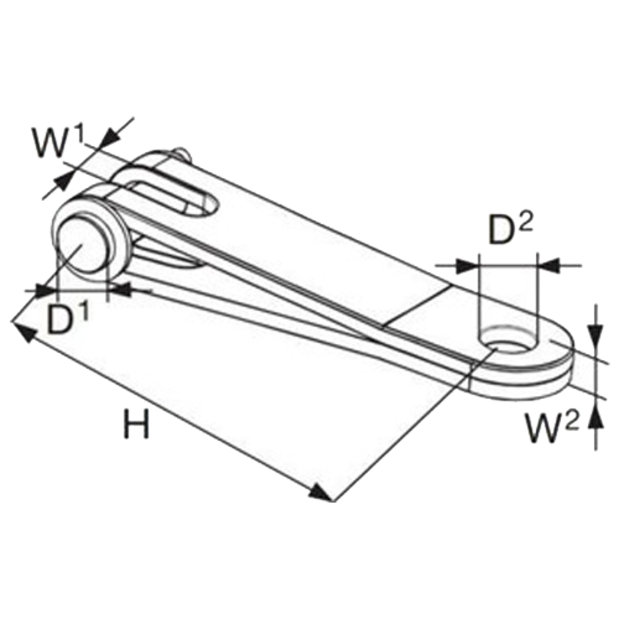

Specifications
MFG #:517-062-01
| Link Size8 or 10mm Forestay w/16.5mm Eye Dia.
Eye Dia.
16.5mm
Pin Dia.
16mm
Length
130mm
Forestay Dia.
8 or 10mm
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Product Options
| Selected | SKU # | MFG # | Availability | Link Size | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 204573 | MFG #: 517-062-01 | Special Order Only | 8 or 10mm Forestay w/16.5mm Eye Dia. | $116.00 | |||
| SKU #: 204572 | MFG #: 517-063-01 | Special Order Only | 6 or 7mm Forestay w/12mm Eye Dia. | $59.20 | |||
| SKU #: 204574 | MFG #: 517-075-01 | Special Order Only | 12 or 14mm Forestay w/20mm Eye Dia. | $548.00 |
