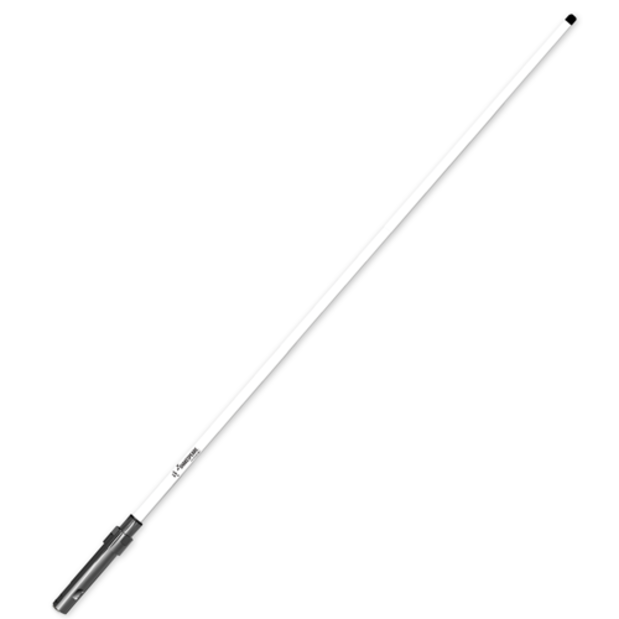

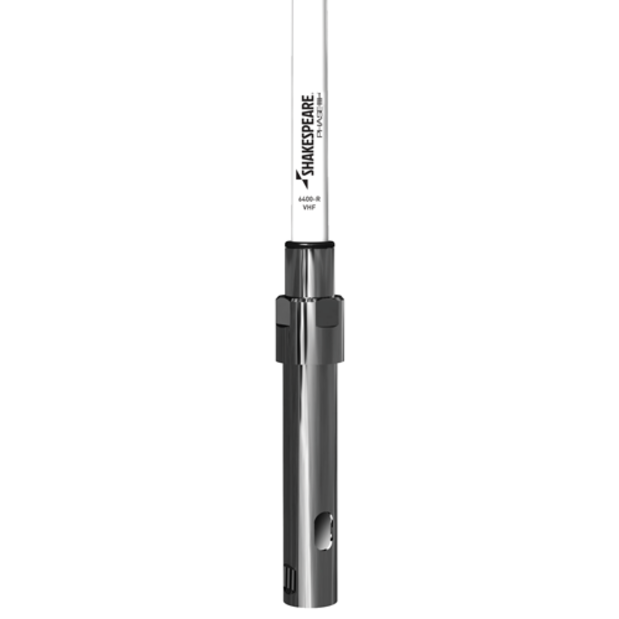

6400-R Phase III VHF Antenna - 4 ft, 3 dB
6400-r of Shakespeare 6400-R Phase III VHF Antenna - 4 ft, 3 dB
6400 of Shakespeare 6400-R Phase III VHF Antenna - 4 ft, 3 dB
6400-r of Shakespeare 6400-R Phase III VHF Antenna - 4 ft, 3 dB
6400 of Shakespeare 6400-R Phase III VHF Antenna - 4 ft, 3 dB

6400-R Phase III VHF Antenna - 4 ft, 3 dB

SKU: 456069 Item ID: SHK 6400-R
  • 3dB Gain
  • Collinear-Phased 5/8 Wave
Your Price:$427.29/ Each
Availability:
Special Order Only
Quantity:
Return Policy

Description

Collinear-Phased 5/8 Wave Elements This high performing, 4' VHF antenna is infused with the quality of our incomparable Phase III electronic elements. The commercial grade antenna is great for hardtops, T-tops and other locations aloft where the compact size can deliver reliable communications via VHF radios. The master craftsmanship of the ethafoam spacer system in the fiberglass radome positions this antenna within our finest line.
• Silver-plated outer conductor, copper inner conductor
• Stainless steel mounting sleeve

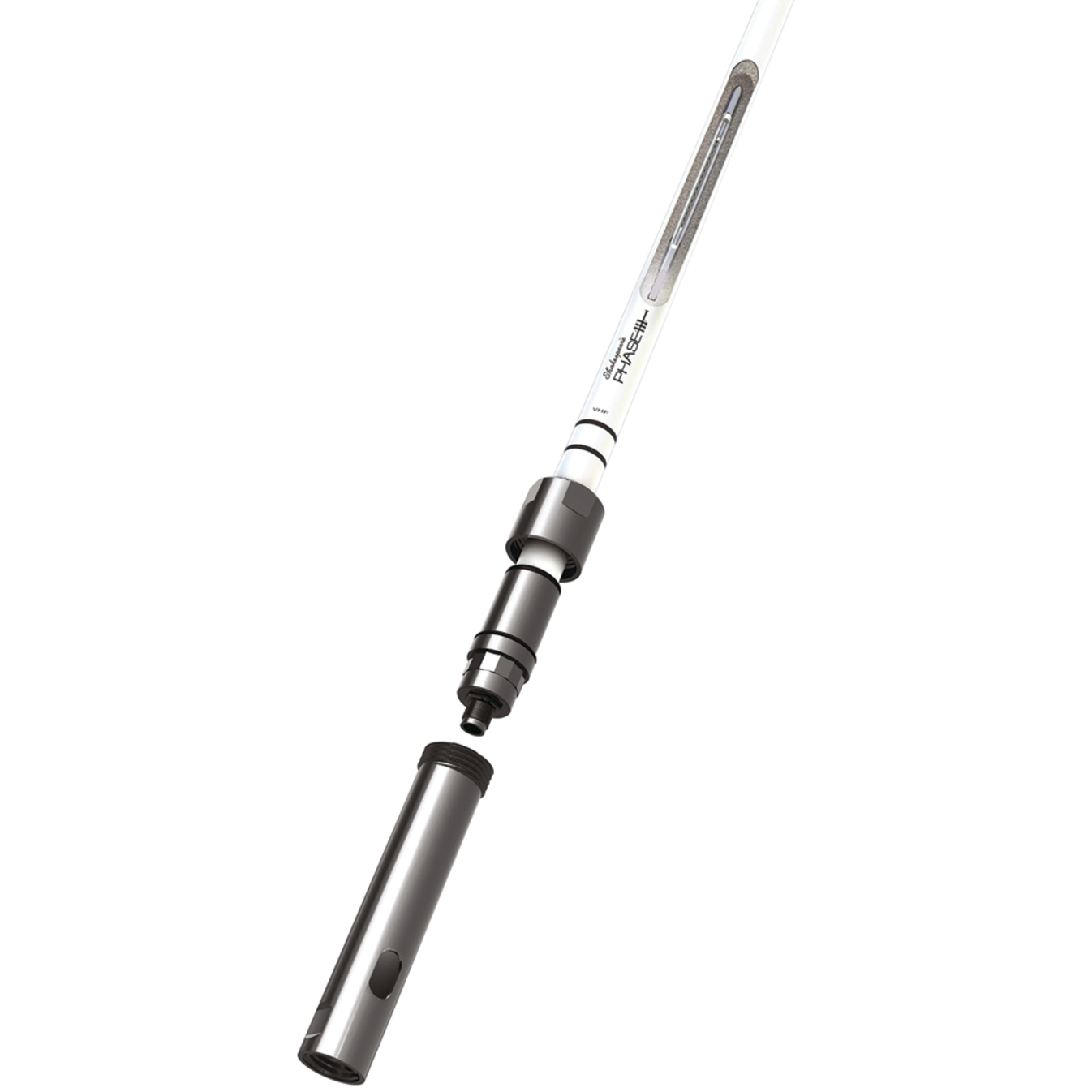

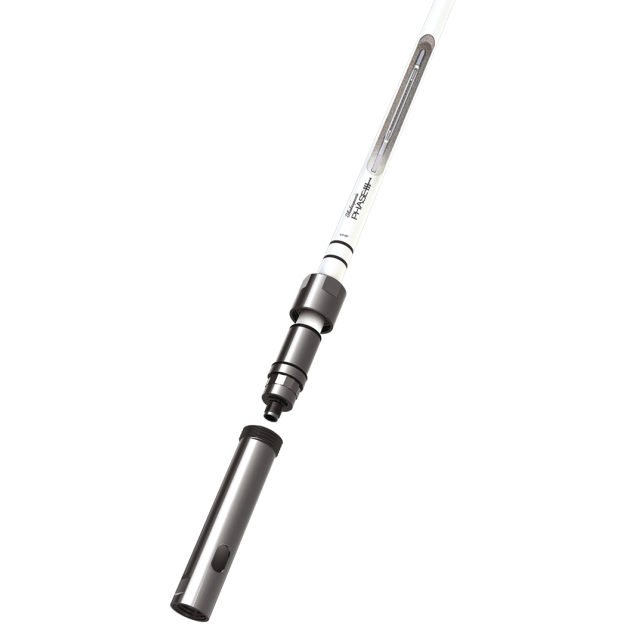

• Type SO-239 connector inside mounting sleeve for easy mounting and dismounting for stowage
• Suggested mount: Shakespeare® Style 4187-HD Ratchet Mount6396-AIS-R Phase III AIS Antenna - 4 ft, 3 dB

Specifications

MFG #:6400-R
Bandwidth
3 MHz within 2.0:1 VSWR
Boat Length
14 - 22 ft.
Connector
SO-239
Gain
3 db
Height
4ft. (1.21m)
Impedance
50 ohms
SWR
<1.5:1 at 156.8 MHz
Weight
7 lbs.
Barcode
719441200633
