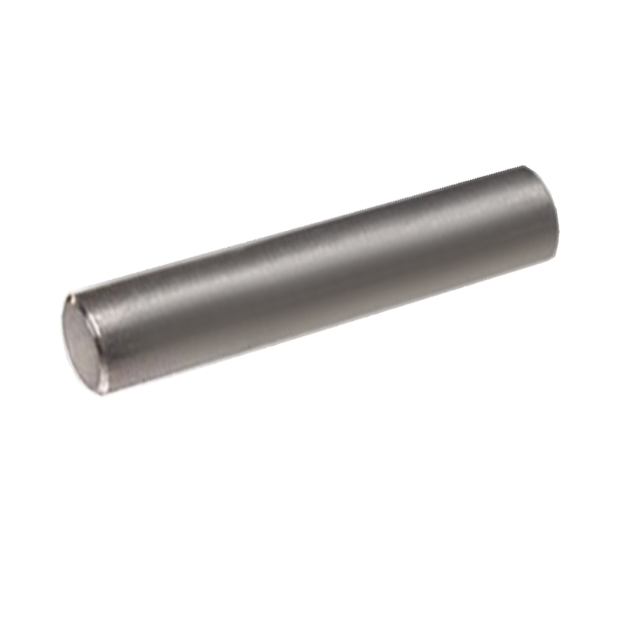

Drive Pin for 5-blade propellers used on SE120, SE130, SE150, SE170, SE210, SE250 and SE300 thrusters.
Secures propeller to gear leg drive shaft.
Looked at another way, these are Drive Pins for 5-blade propellers used in 215mm, 250mm and 300mm diameter tunnels,
but not for SH360 and SH400 hydraulic thrusters that use 300mm tunnels.
Reference:
• SE120 thruster uses a 215mm tunnel
• SE130 thruster uses a 250mm tunnel
• SE150 thruster uses a 215mm tunnel
• SE170 thruster uses a 250mm tunnel
• SE210 thruster uses a 250 or 300mm tunnel
Note that this propeller drive pin does not function as a shear pin. The thruster's shear pin is located up higher, at the motor/gear leg junction.
