Sleipner S-link System Connectors

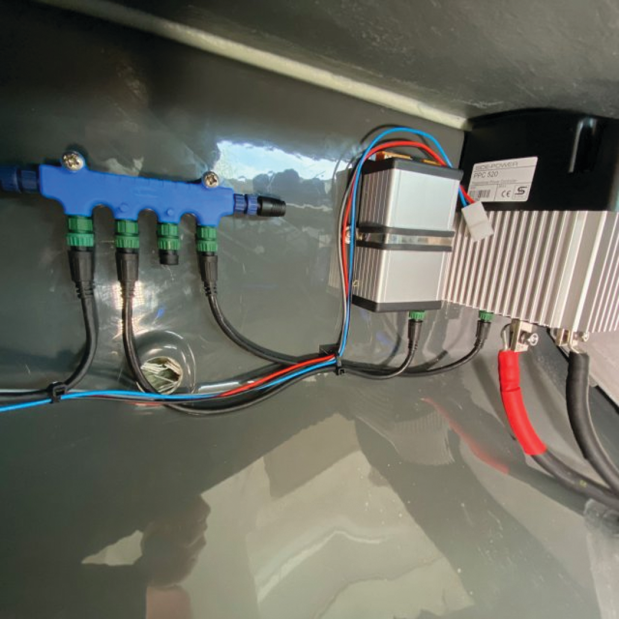

S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Units with low power consumption are powered directly from the S-Link bus therefore one power cable must be connected to the BACKBONE Cable through a T-Connector.

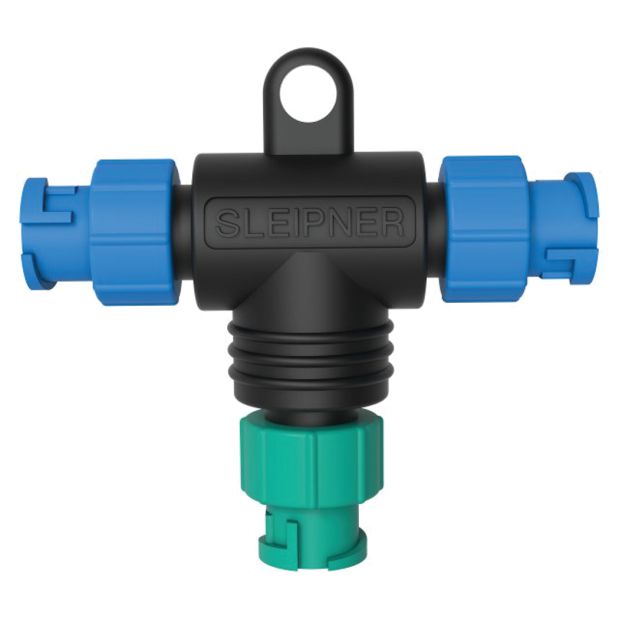

T-Connector
Used for connection of SPUR or POWER Cable to the BACKBONE Cable. One T-Connector for each connected cable.

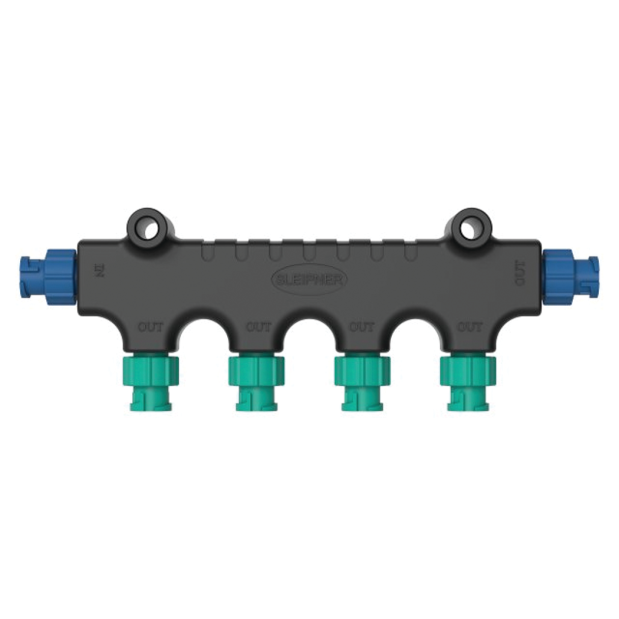

4-Port T-Connector
The 4-PORT T-connector allows multiple SPUR Cables to be connected. The 4-PORT T-connector comes with two sealing caps to protect unused ports.

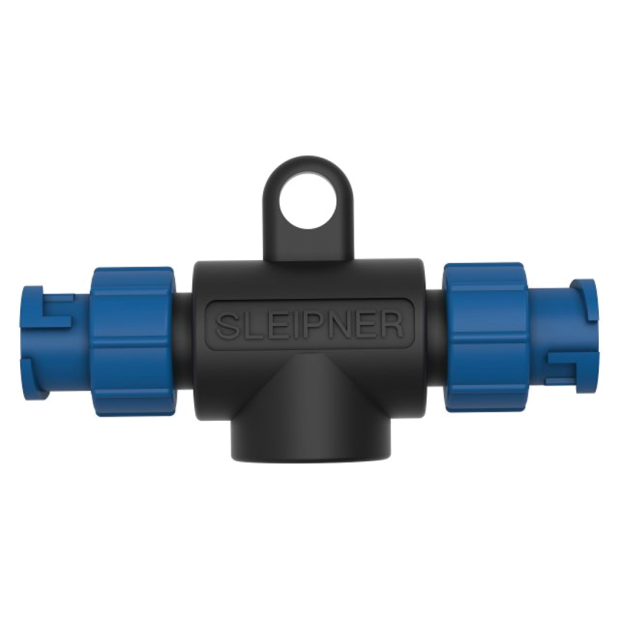

Backbone Extender
Connects two BACKBONE Cables to extend the length.

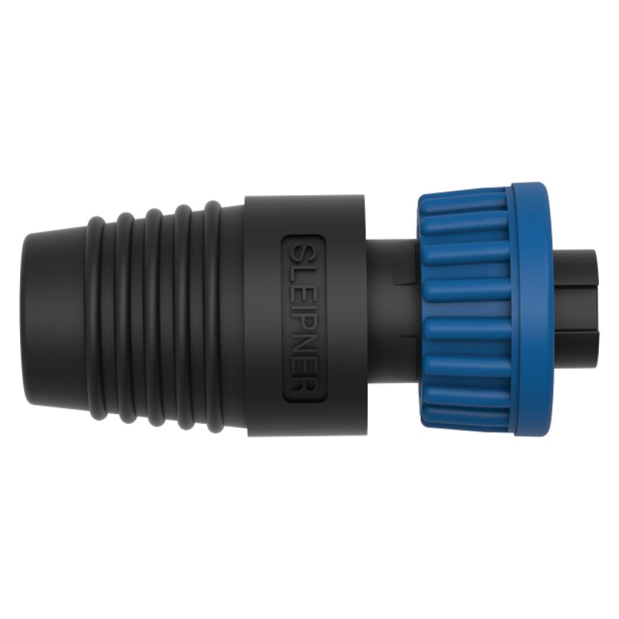

End Terminator
Must be one at each end of the BACKBONE bus.

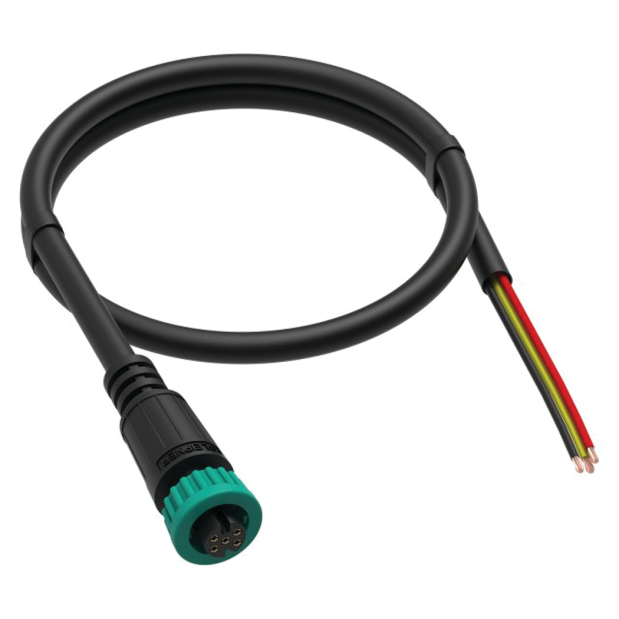

Power Cable
Required in all installations for connection of BACKBONE Cable to a power supply and should be protected with a 2A fuse.

Check out the document Sleipner-S-link.pdf under "Manufacturers Resources" on this page.
