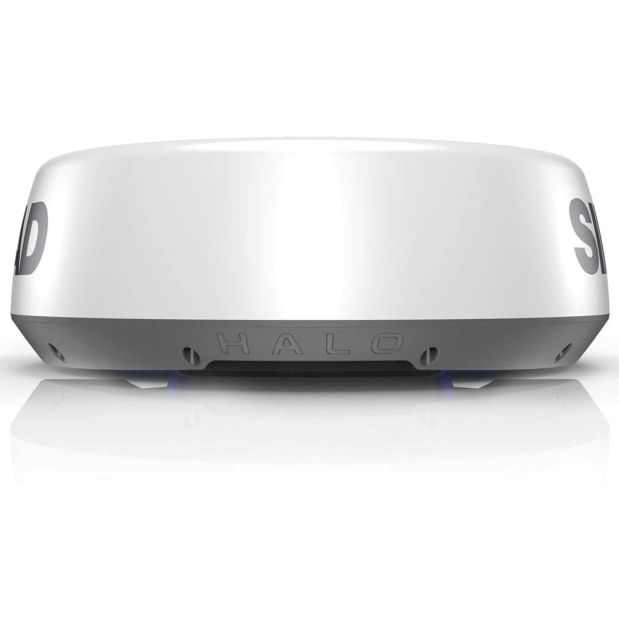

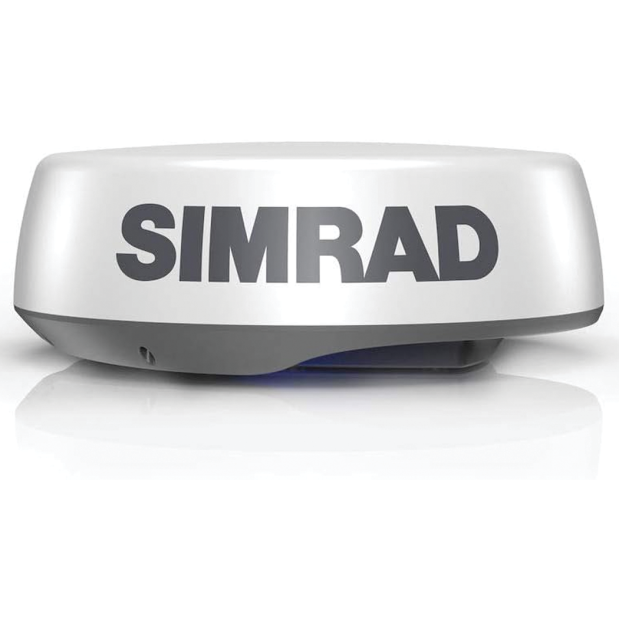

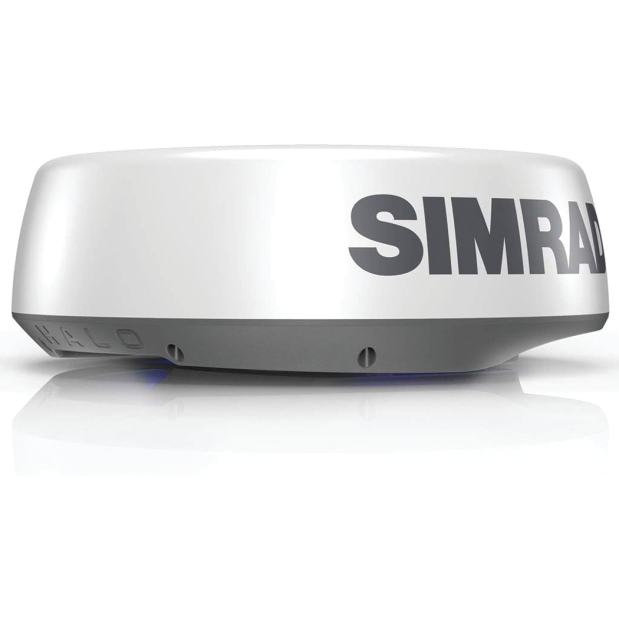

HALO24 Radar - Simrad MFD Interface

HALO24 transforms radar technology by providing an near real-time perspective, featuring an industry-leading 60 RPM functionality at close distances for optimal collision prevention. Instantly detect dangers using VelocityTrack™ Doppler technology, while benefiting from concurrent short and long-range surveillance—extending up to 48 nautical miles—from a single compact 24-inch dome antenna.

See Near and Far with One Compact Dome
Ideal for various smaller powerboats, the HALO24 features a compact dome antenna and offers superior detection capabilities across short, mid, and long ranges. Its Dual Range mode allows simultaneous monitoring of two distance ranges, enabling users to track distant weather systems while remaining vigilant for nearby collision threats. The radar's pulse compression technology ensures optimal detection performance at both selected ranges, while beam sharpening enhances the distinction between small or distant objects.

The Ultimate View for Collision Avoidance
HALO24 radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance.

VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO24 radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.

Ready When You Are
HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.

• 48 nm range from a compact 24-inch dome
• The lightest 24’’ radar (6.75kg, 14.9lb)
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both near and far
• Ultra-fast 60 RPM operation at ranges up to 1.5 nm
• VelocityTrack™ Doppler technology for collision avoidance
• Easy operation with harbour, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range)
• Instantly awake from standby
• Best in class weather & target detection
• Radar Modes: Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion
• Approvals Compliance: FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
