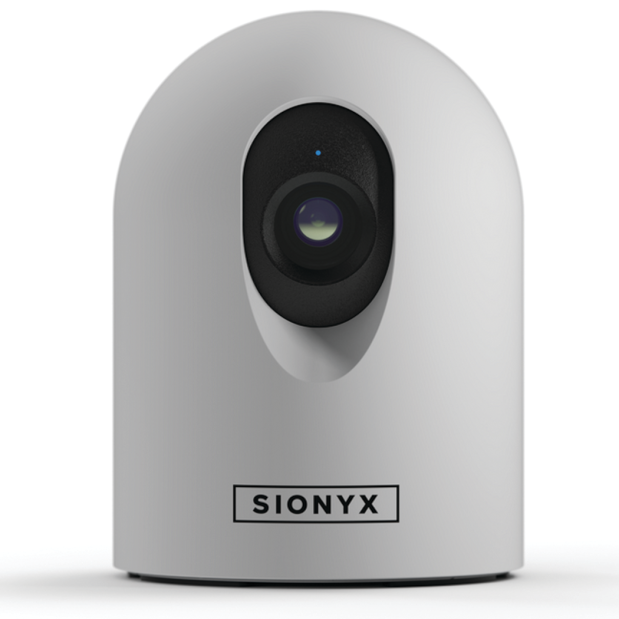

Nightwave Digital Marine Night Vision Camera

The Nightwave Digital Marine Night Vision Camera represents the forefront of ultra-low-light marine imaging technology.

Nightwave Digital provides unparalleled clarity—even in the absence of moonlight—due to its enhanced IP (PoE) digital connectivity and sophisticated Black Silicon CMOS sensor, surpassing conventional thermal cameras.

Nightwave Digital ensures superior resolution, enhanced reliability, and effortless integration with networked MFD systems. Designed with versatile mounting options and a user-friendly setup, it caters to captains seeking safety without unnecessary complications. Reduced uncertainty leads to increased peace of mind.

Whether you are cruising, fishing, or docking in the dark, Nightwave Digital enables you to remain safe while savoring every moment on the water.

Improved Camera Attributes Enhanced connectivity; whereas the original Nightwave D-1 Analog necessitated an analog video input for connection to a Multi-Function Display (MFD), this updated camera utilizes a network connection. A Cat 5 Ethernet Cable and RJ45 Clip facilitate greater connectivity with all leading brand MFDs available in the market.

Improved resolution; the camera can now detect objects nearly twice as far away, and the significance of the enhanced resolution is particularly noticeable on larger screens measuring 16 inches and above. It will now deliver a full-screen image without any pixelation.

The previous camera setup required a single camera to connect to just one screen. With the introduction of POE Network Compatibility, it is now possible to use a single camera to transmit images to multiple screens located in various areas of the boat (for example, the helm and the flybridge). Additionally, multiple cameras (for instance, one directed forward and another directed backward) can be connected to a single screen.

*Please Note; This camera lacks pan-tilt functionality. The rationale for this is that it offers a 44-degree field of view (wide view), which is equivalent to what the naked eye perceives when looking straight ahead. Unless a boater is engaged in search and rescue operations, they are unlikely to be concerned with what is to their sides or behind them; their primary focus should be on "what is in front of them." It serves as a "go-forward safety-navigation camera." This design enables us to significantly reduce the costs associated with our cameras.

• Seamless integration with all major brand MFDs
• Network (POE) compatibility
• Engineered for large screens (higher resolution)
• Connectivity with app control via Wi-Fi
• One camera to multiple MFDs or multiple cameras to one MFD

Detection Range
• Man-Sized Object: 984' (300 m)
• Marine Vessel: 2.5 miles (4.02 km)

Low-Light Sensor
• Image Sensor Color: XQE1350 BSI CMOS
• Resolution: 1280 x 1024
• Frame Rate: Up To 30 hz
• Min Illumination Moonless Starlight: <0.001 Lux
• Focus Range Fixed: 10 m (32') to infinity
• Horizontal Field Of View: 44 deg.
• Day and Night: Auto day/night filter
• Visible Spectrum: 400 - 1200 nm
• Lens: 16 mm F/1.4

Physical Properties
• Weight: 2.2 Lbs (1 kg)
• Dimensions: 5" x 6.9" (127 x 175 mm)
• Material: UV resistant polycarbonate

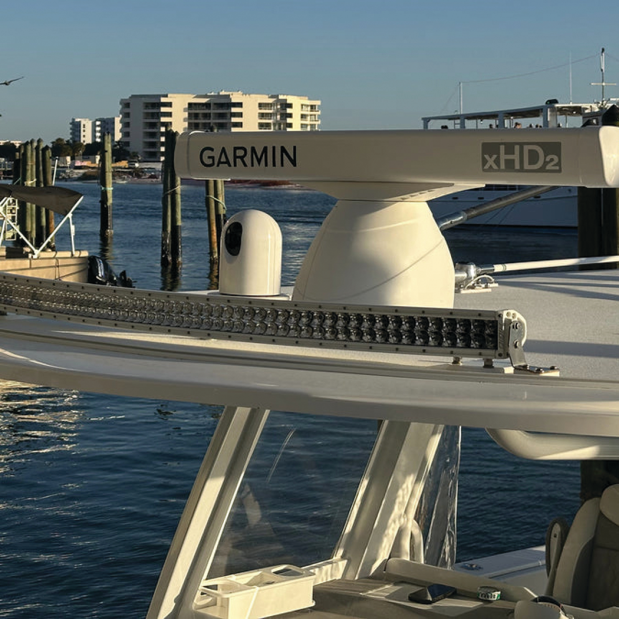

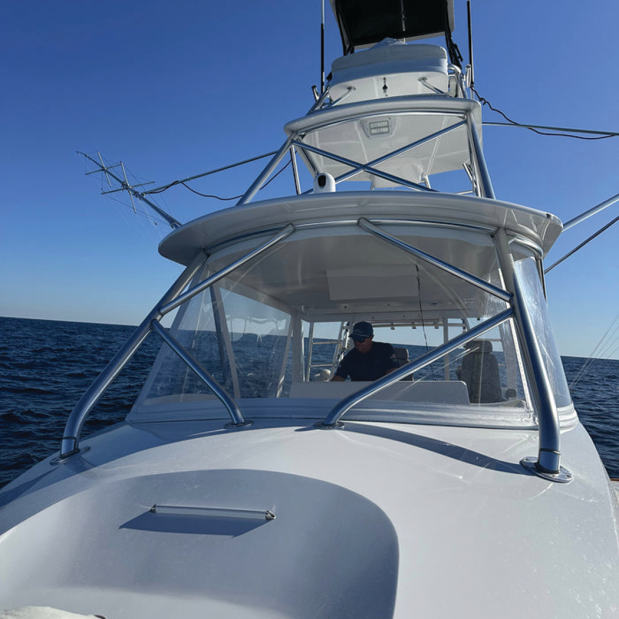

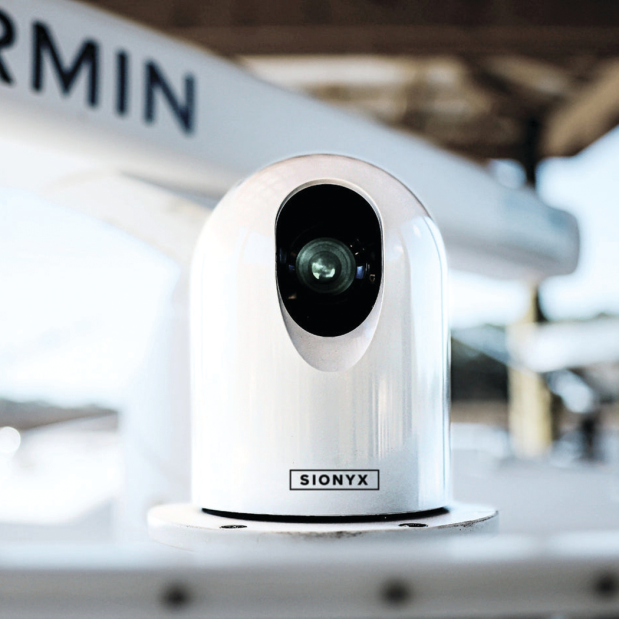

• Mounting Options: Ball upright or ball down 4-bolt pattern into fiberglass/wood/metal or 4 1/4-20 pattern into base

System
• Power Poe: (37-57V DC / Typ 48V DC)
• Consumption: 5w Nominal
• Image Settings: Brightness, contrast, sharpness, saturation, day and night, HDR, orientation, noise reduction
• Mobile App: Ios and Android, Wi-Fi + Bluetooth, software updates, image settings
• IP Video Out: H264 Main Profile Main: 1280 x 1024 / Sub : 640 x 512, 30 FPS, 30 GOP

Environmental
• Operating Temperature: -4 - 122° F(-20 - +50° C)
• Storage Temperature: -4 - 158° F (-30 - +70° C)
• Water Ingress: IP67
• Shock and Vibration: 20G Vertical, 10G Horizontal, Iec 60945; Mil-Std-810E
• Wind: 100 mph (161 kph)
• Solar UV Exposure: Mil-Std-810G

Network Compatibility
• Garmin, Raymarine, Navico (Simrad)
