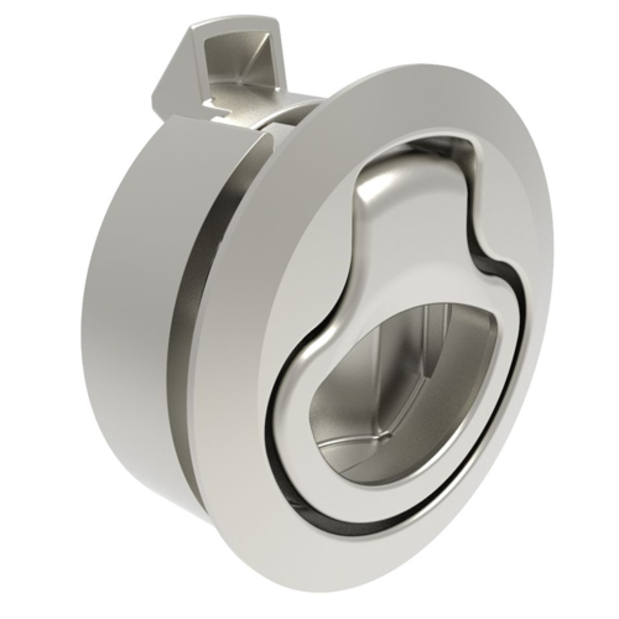

M1 Push-to-Close Latch 2" (50mm) 316 Stainless Steel (2-7mm Panel)

Attractive flush-mount styling, a recessed handle, and concealed mounting hardware give these latches an appealing look. A solid feel and push-to-close convenience give them appealing functionality. And corrosion-resistant construction keeps them functional and looking beautiful for a long time, even in outdoor applications.

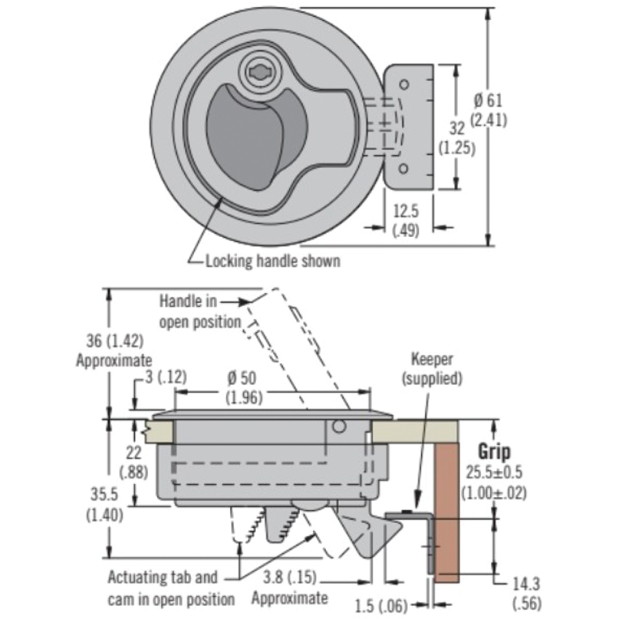

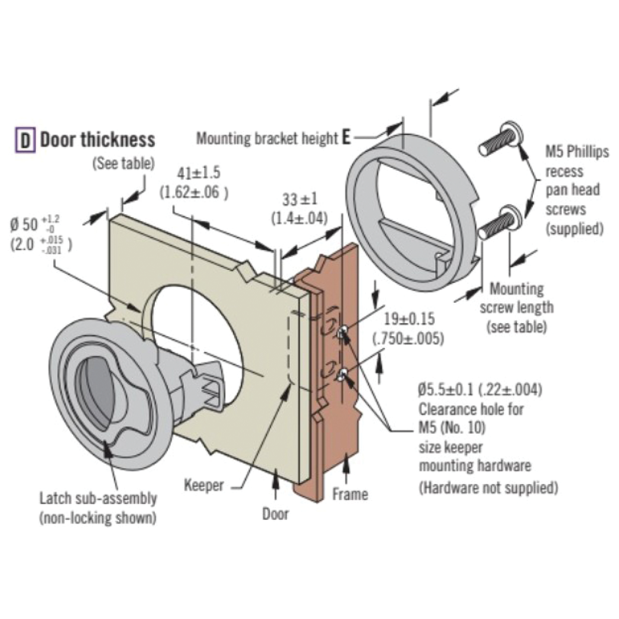

Installs easily from front of panel through single round-hole, and attaches from rear with mounting bracket and hardware. Fits flush to panel when installed, with minimal protrusion inside of cabinet.

• Single 2" round-hole installation
• Loe profile - only protrudes 1/8" above mounting surface
• Slightly angled pawl ensures tight grip on keeper, within tolerances
• Spring-loaded handle helps prevent rattle

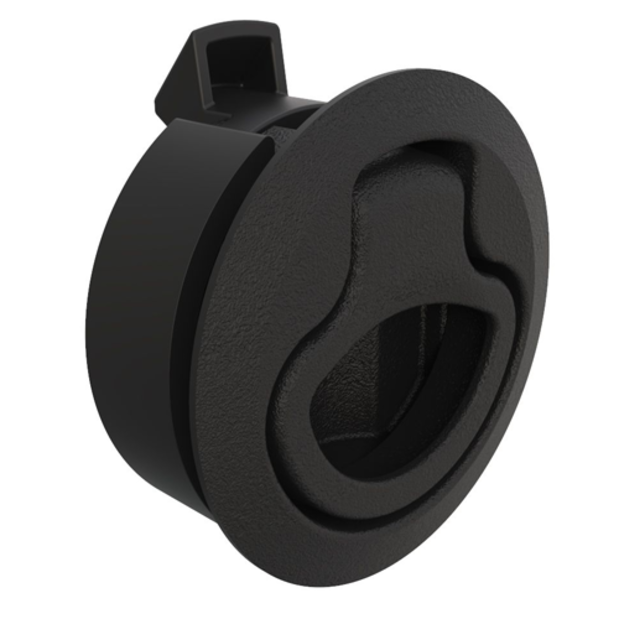

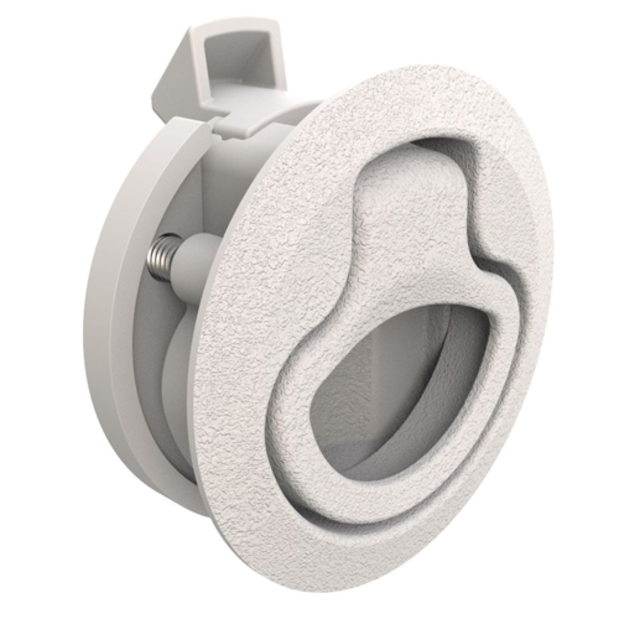

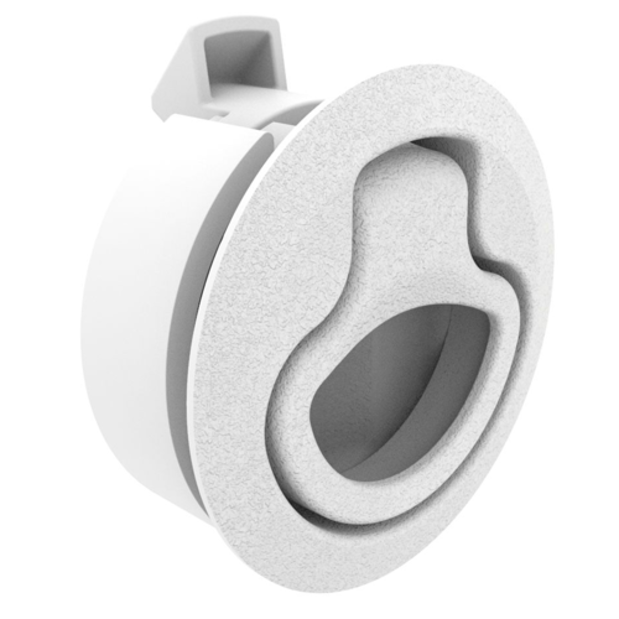

• Available in polycarbonate and stainless steel corrosion-resistant materials for long-life performance
• Inside actuation allows opening latch from interior of compartment
• Multiple sizes accommodate a variety of enclosure sizes and panel thicknesses - by special order; inquire at 800-426-6930
• Maximum static working load for stainless steel models: 187 lb (835 N)
• Maximum static working load for polycarbonate models: 60 lb (270 N)

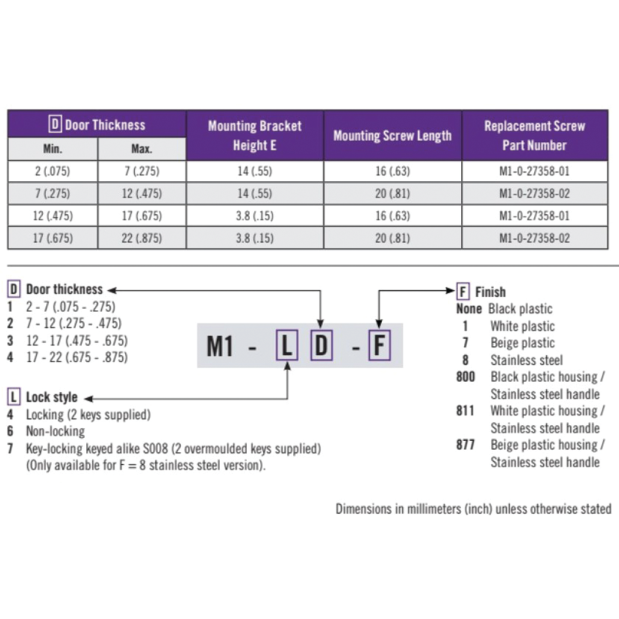

• Panel thickness range: 0.275" - 0.475"

Click here for additional information, specifications and installation instructions for this product.
