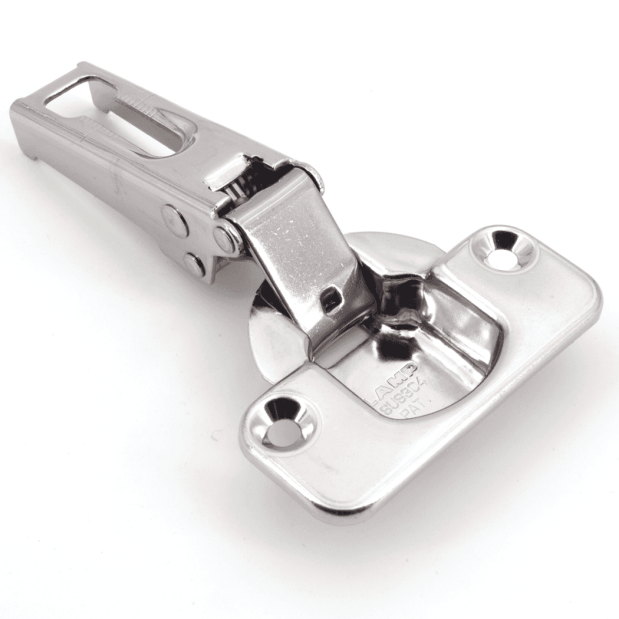

Self-Closing 304SS Concealed Hinge - 19mm (15-19mm) Overlay
SKU: 169627 Item ID: SUG 304B-C46/19
- 304SS Polished Finish

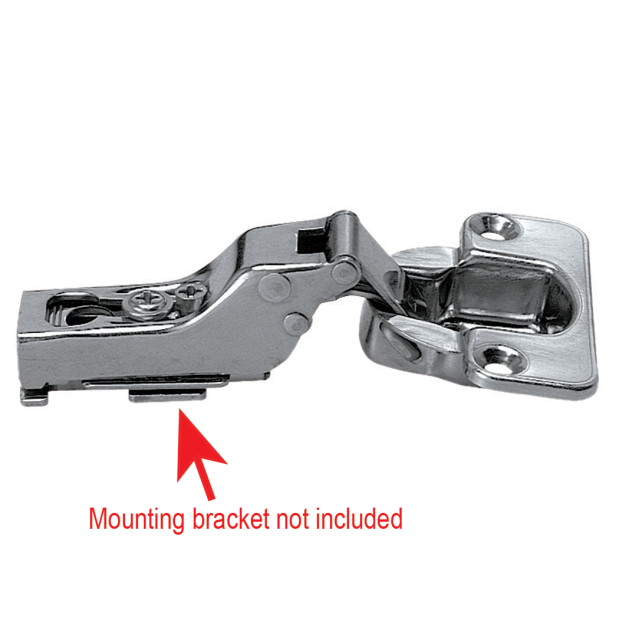

- Mounting plate required
Description
• Stainless steel hinge body construction allows for usage in outdoor environments.
• Passed 500 hour salt spray test.
• Resin casing protects damper from corrosive elements.

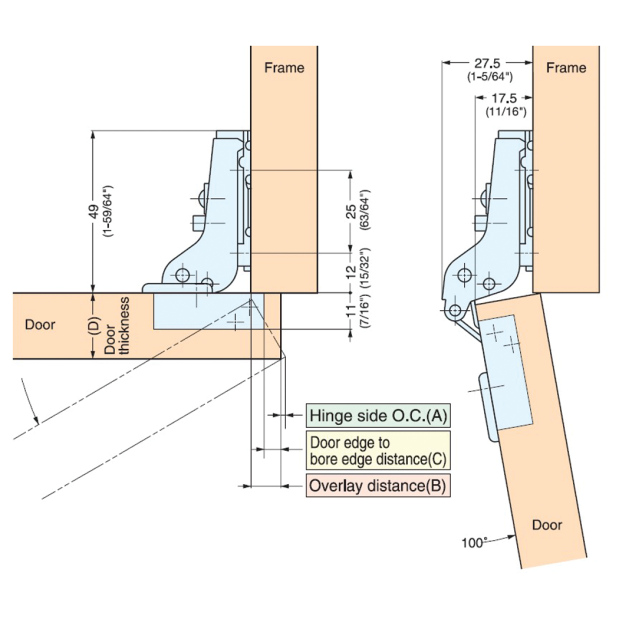

• 100° opening, cup diameter 35/bore depth 11mm, door thickness 15-20mm
• Requires mounting plate for installation
Specifications
MFG #:304B-C46/19
| Overlay19mm (15-19mm)
Mounting Plate (Sold Separately)
304B-P4A/32-3W
Overlay
19mm (15-19mm)
Barcodes
A 3201026
A 3203102
201120 4908034
769785904445
A 3203102
201120 4908034
769785904445
WARNING
"WARNING: This product can expose you to chromium, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov."
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Overlay | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 169075 | MFG #: 304B-C46/14 | Special Order Only | 14mm (10-14mm) | $11.49 | |||
| SKU #: 169627 | MFG #: 304B-C46/19 | 15 In Stock Ships immediately | 19mm (15-19mm) | $9.49 Each |
