TLP Push Knob Latch - Knob Only

The TLP is a very slim, low profile, cabinet door push-button latching system. When the cabinet door is closed, the latch is engaged, whether the knob is in or out. Push the knob to flush position to lock the latch. Push the knob again - to out position - to unlock the latch. In the unlocked position, pull on the knob to open the cabinet door. The push knob assures safety and has a sleek-looking appearance when locked.

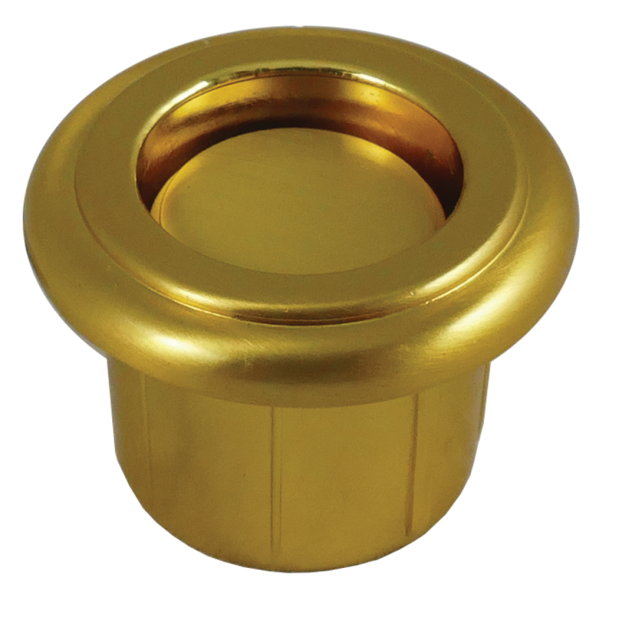

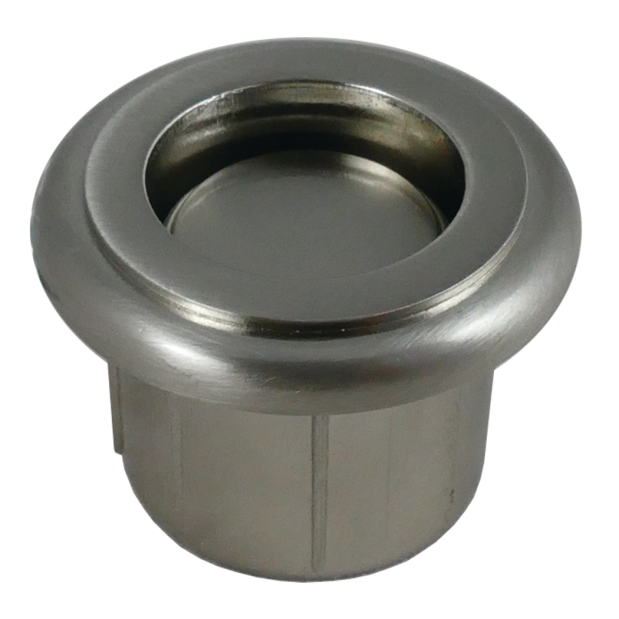

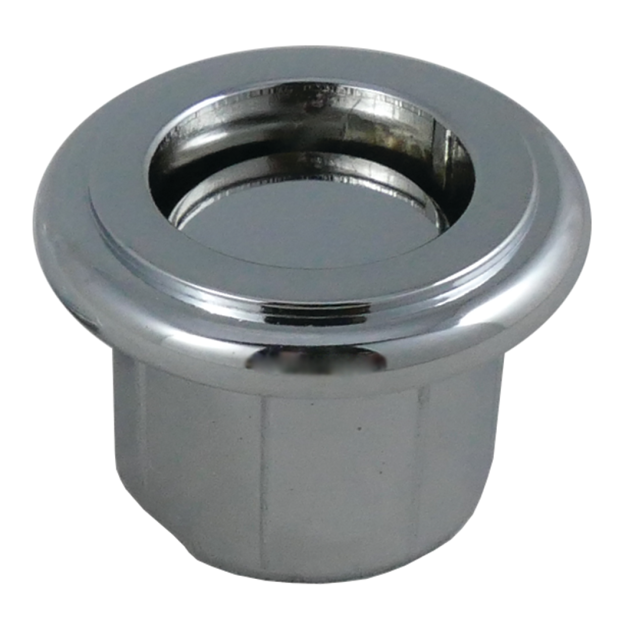

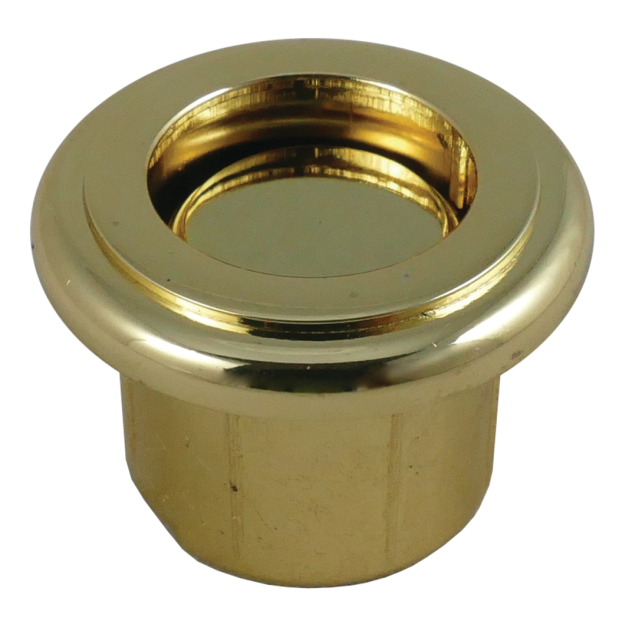

The products listed here are the metal knobs and knob base (neck with flange) only.

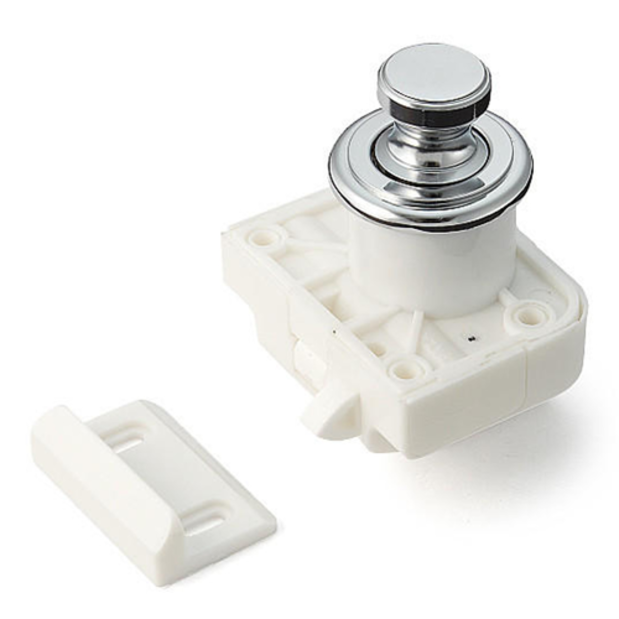

The white plastic latch body (sold separately) mounts on the rear surface of the door. See Related Products, below.
The neck portion (knob base) is inset into the door, up to the thin flange, so the mechanism is only 4mm proud on the door surface - just over 1/8" with the knob in the recessed position. A counterplate/strike plate (comes with the latch body) mounts on side wall of cabinet. The TLP-LBWHT comes with an integral plastic deadbolt to lock the latch.

• Knob protrudes a total of 19mm (3/4") when released
• Door thickness from 19 - 30mm (3/4" to 1-3/16")
• Non-handed
• Holding force: 44 lb
• ABS plastic (latch body), zinc alloy (knob base/neck); brass (knob)
• Push knob and latch body sold separately; order one of these knobs and a latch body to make a functional set; see Related Products, below, for the latch body
