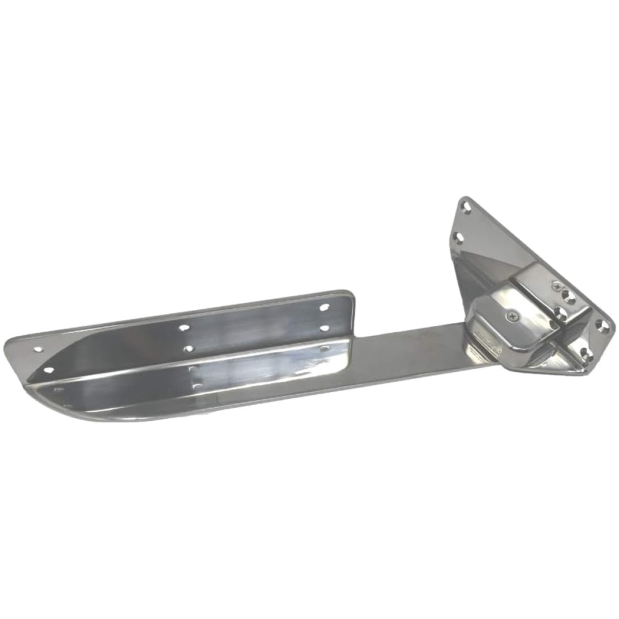

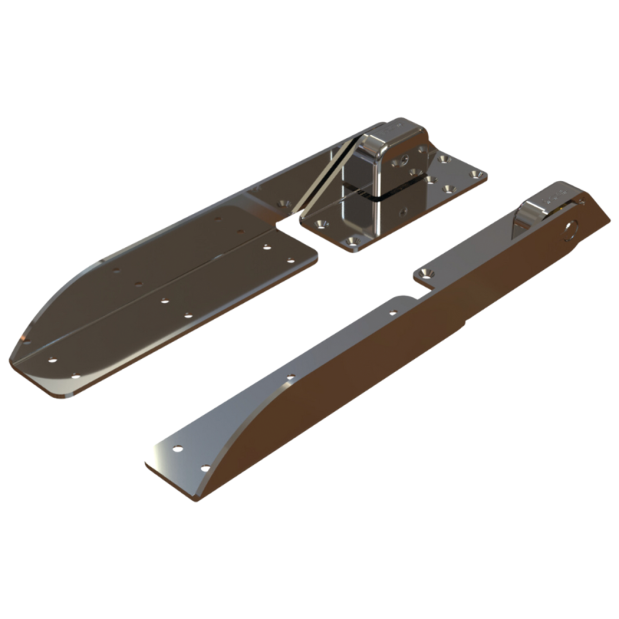

Command Ratchet Hinge, 18-1/2" with Hard Stop

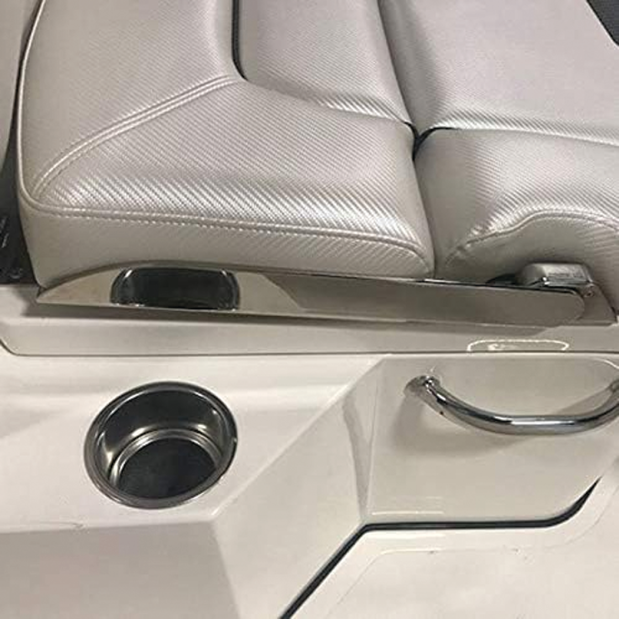

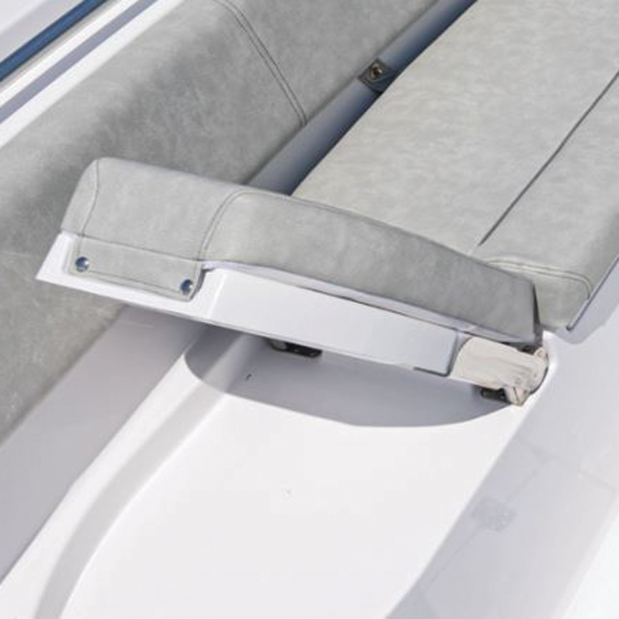

Leveraging the success of the H25-0023 heavy-duty Command Ratchet Hinge, this new 18-1/2" hinge incorporates a hard stop at 105º and is well-suited for longer seat backs measuring up to 22". This extended specialty hinge offers a single locking position at 62.5º, making it an excellent choice for sun pads, bolsters, and lounge backrests.
• Single- or double-seat capacity
• Can be used for seat backs up to 22" long
• Compatible for cushions up to 4" thick

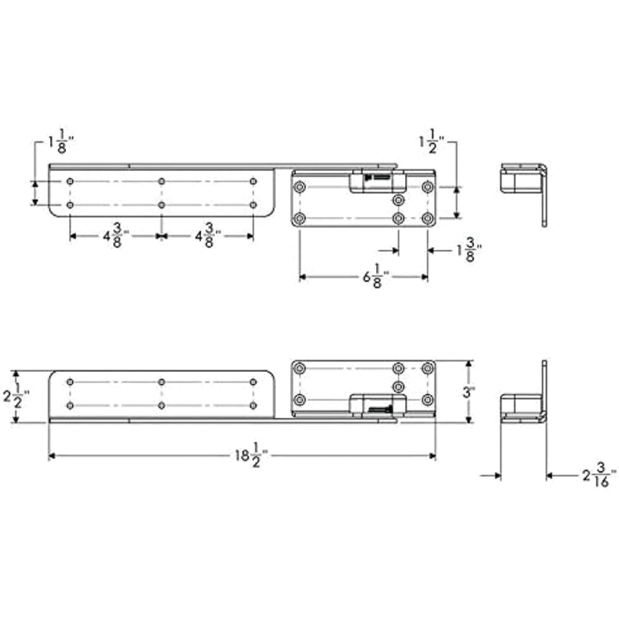

• 18-1/2" long x 3" wide
• Mounts above the deck

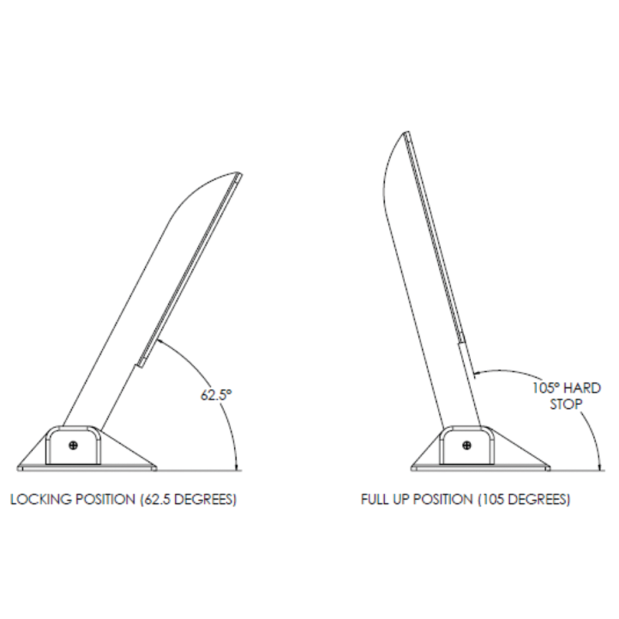

• One locking position at 62.5º
• Hard stop at 105°
• Polished Type-304 stainless steel
• Meets ABYC H-31 standards class B* application, 500 ft-lb. of torque load for pair
• 500-hour salt fog test
• Sold in pairs
• 5-year limited warranty
