What you need to know –
• Combination LED Masthead/All-Round white Anchor Light
• 3 Nautical Mile visibility – 3 NM 225° beam white Masthead and 360° beam white All-Round (Anchor)
• Certified for use on vessels under power less than 12m (39.4 ft) in length
• Mounts on horizontal surfaces
• Machined aluminum body
• 12V

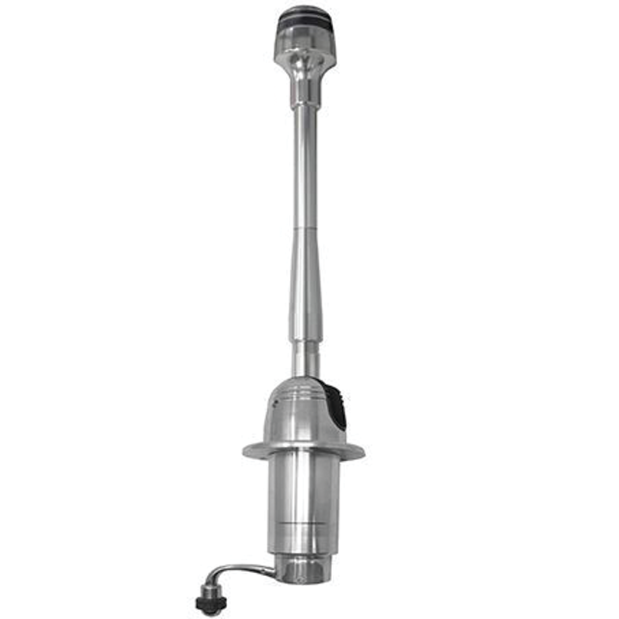

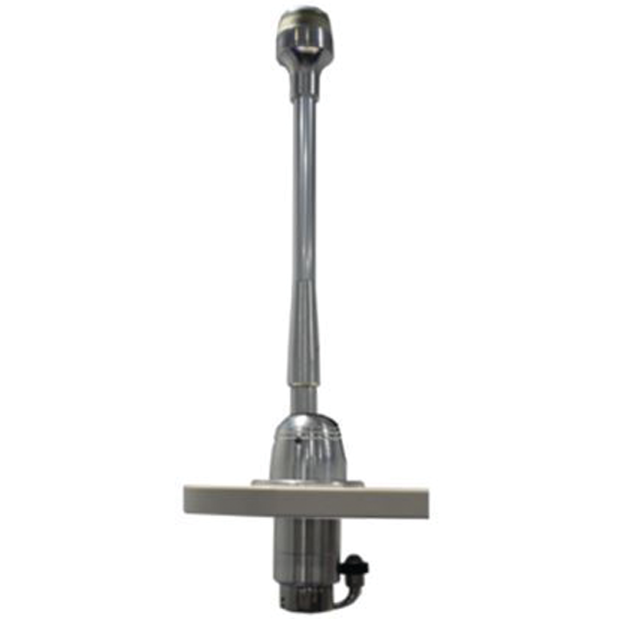

The Grand Slam 900 Anchor Light was created specifically for boaters' safety and convenience.
Climbing over seatbacks or out on the boat's gunnels or cabin roof to raise and lower an anchor light is dangerous and time consuming.
Installed in the coach or cabin roof, the GS-900 allows boat operators to raise and lower the anchor light from the safety of the cabin interior.

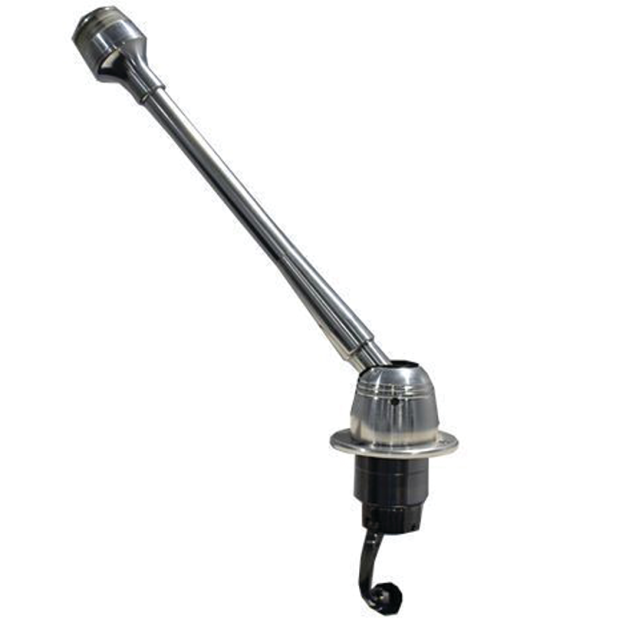

Simply extend the crank and rotate the handle to raise the light to the upright position or back to its stowed, trailer towing position.
The light runs on 12 volts and consists of four 3-Watt Cree LED chips driven by two Mean Well drivers.
It features smooth operation, attractive machined aluminum frame and a cast stainless-steel rotator.
Patent number US7114283
• Safe, no-hassle raising and lowering of your anchor light
• Total height above mounting surface is 39-1/2"
• Ideal for boats 39 ft in length or shorter (12 meters or shorter)
• Certified USCG-required for 2 nautical mile visibility
• Standard 1"-14 thread (male) shaft
• Requires 2-1/2" diameter mounting hole
• LED light and shaft included
• Machined / Anodized aluminum body with a light brushed finish
• Polished Type-316L stainless steel crank handle
• Folding crank handle locks flush into base
• Threaded shaft for consistent lift and descent
• Delrin bearings for smooth operation
• Roller bearings in crank assembly
• Mounts through up to 2" thick hardtops
• Includes 4" x 1/4" round backing plate (hardware not included)
• Includes 32.75" of tube
• Light tube length allows for modification by installer to exact required height
• 1-year limited warranty
