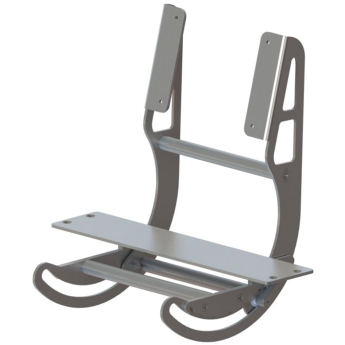

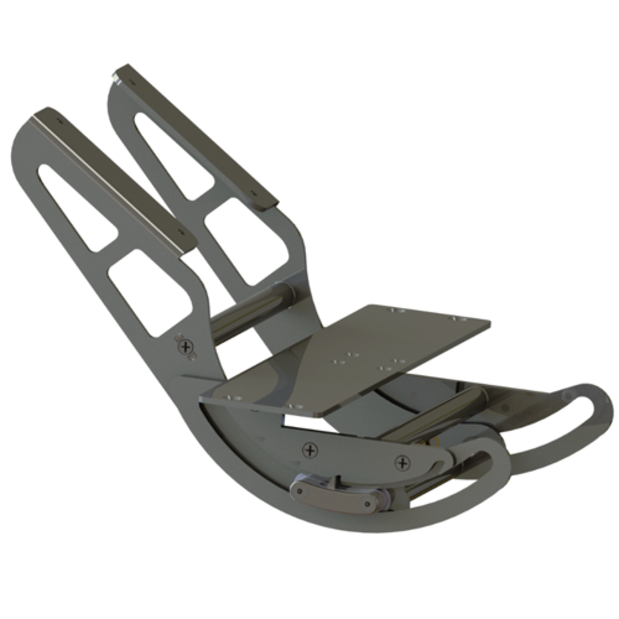

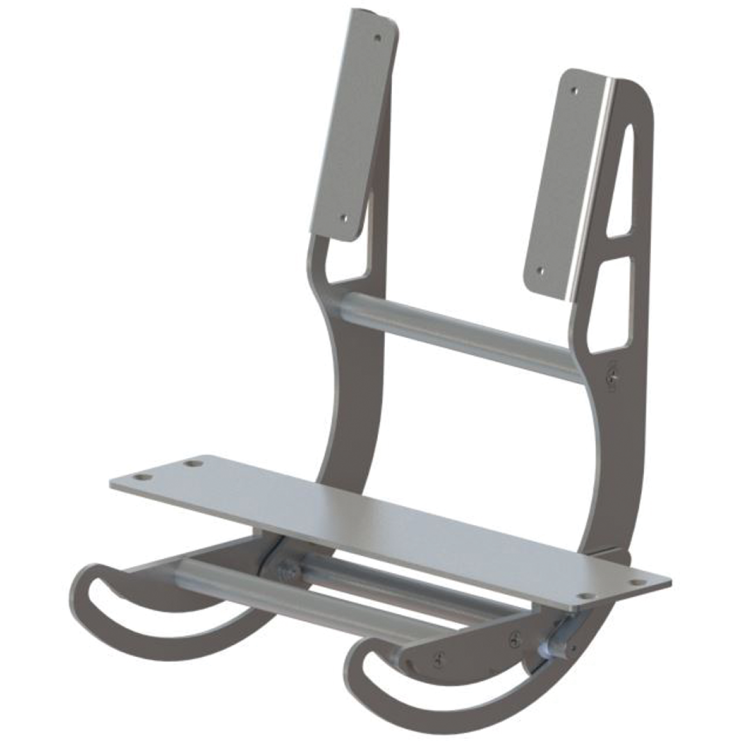

Hideaway Ratchet Seat Back Hinge

Versatile, robust and concealed describe the innovative Hideaway Ratchet Hinge!
The Hideaway Hinge allows you to transform a standard cockpit seat cushion into an on-demand backrest for versatile seating and deck options. The distinctive below-deck design provides functional, adjustable hinge operation without visible hardware.

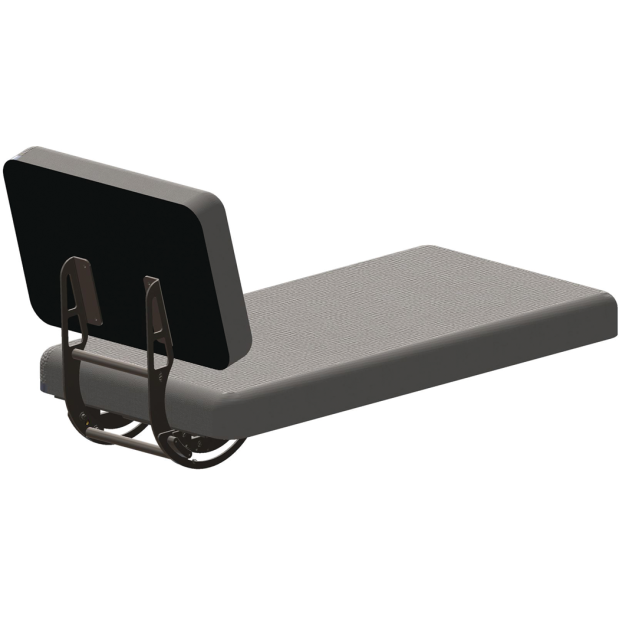

Under-cushion installation permits long runs of backrests to operate in independent sections.
The Hideaway Ratchet Hinge is adaptable to varied seatback widths which allows for unique applications, such as fold-down transom seats, hideaway tables and access doors.

• Smooth operation with multiple backrest positions
• Effortlessly return backrest to lounging position

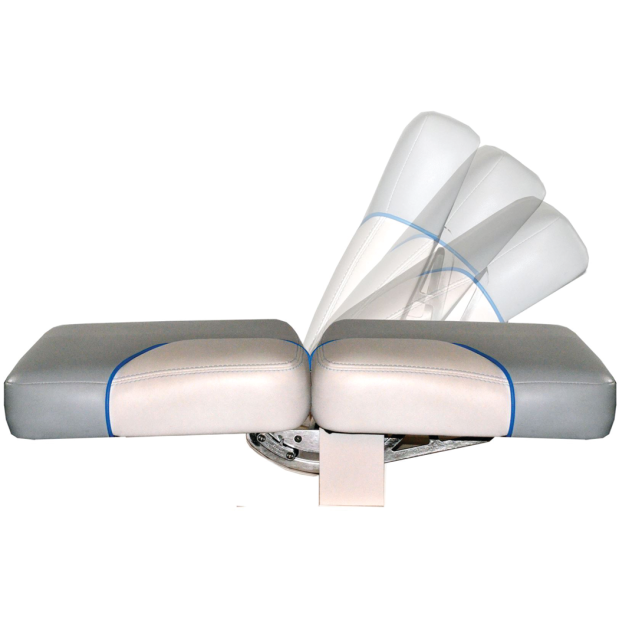

• Three locking positions at 35°, 50° and 65°
• Easily modified to accommodate more or different angles by changing side plates
• Mounts to edge of bulkhead with the majority of hinge below deck
• Easily add independent operating backrests
• Versatile - can be used for applications beyond just seating
• Electro-polished, Type-316L stainless steel
• Full Down Position: 4-5/16"H x 18-1/2"W x 17"L
• Full Up Position: 17-3/4"H x 18-1/2"W x 12-5/16"L
• For cushions 3” to 3-1/2" thick
• Can be used for seat backs up to 20"
• Single seat capacity
• Tested up to 600 pounds vertical load
• 500-hour ASTM B117-16 salt fog
• This hinge exceeds the strength requirements specified for seat backs in H31.9.2.
• 5-year limited warranty

Images show several views and applications.
