Rigid Vinyl Rub Rail w/Flexible Insert
Rigid Vinyl Rub Rail w/Flexible Insert

Rigid Vinyl Rub Rail - Insert Is Sold Separately

Ideal for 20 - 40 Foot Boats
By: Taco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).
Provides the ultimate in durability and elegance with flexible vinyl inserts (sold separately). Insets may be offered in several colors. See entry for: Flexible Vinyl Inserts for choices.
• Color and gloss levels can be matched to gelcoats to blend rub rail with hull and deck
• Cutting and drilling is equivalent to wood
• Tight radius forming may require preheating

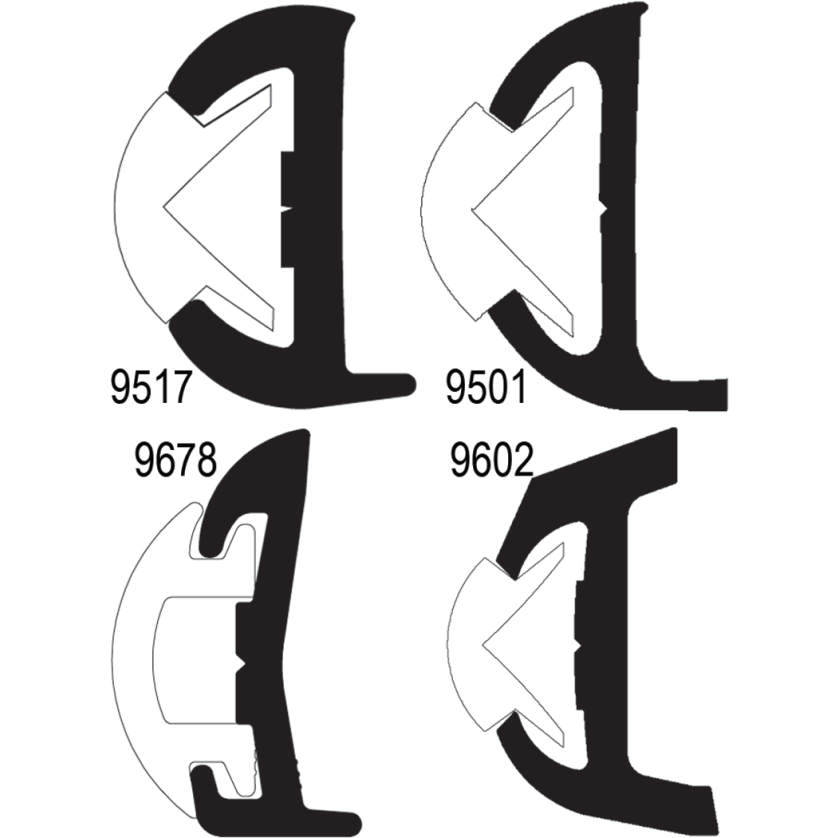

• Dimensions are given for the orientation shown in the illustrations
• Width dimension is overall width, including flanges
• Sold in 20 foot lengths
• All install with #10 fasteners, except 0426, 1008 & 9678 use #8 fasteners
• All are drilled and countersunk on 6" centers, except 0426, 9602 & 9678 are drilled and countersunk on 8" centers, 1008 & 9501-WHC are drilled (only) on 6" centers
• Note: due to their length, these items must be shipped by truck or air freight
• Inserts sold separately
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDTaco#AvailabilityDescriptionUOMYour PriceQTY

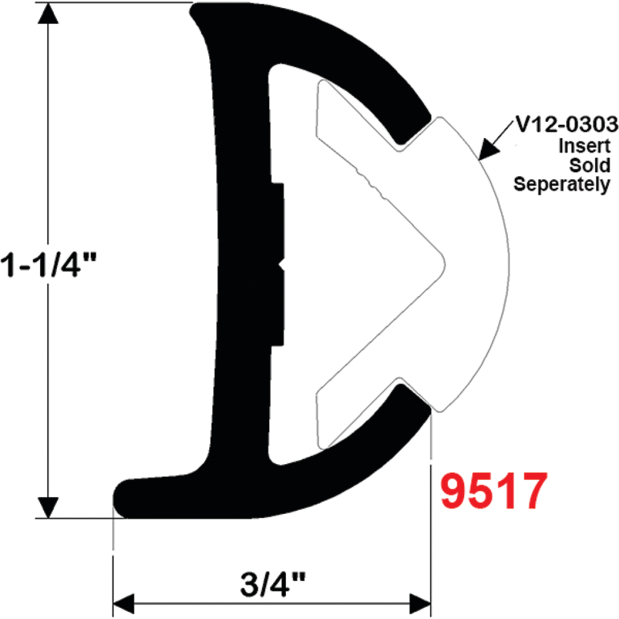

157500TCO V21-9517BKA20D V21-9517BKA20DLoading...Rigid Vinyl Rub Rail, 9517 - Black - 20 ft. x 1-1/4" x 3/4"Loading...
149437TCO V21-9501WHC20D V21-9501WHC20DLoading...Rigid Vinyl Rub Rail, 9501 - Frosty Wht. - 20 ft. x 1-1/2" x 7/8"Loading...

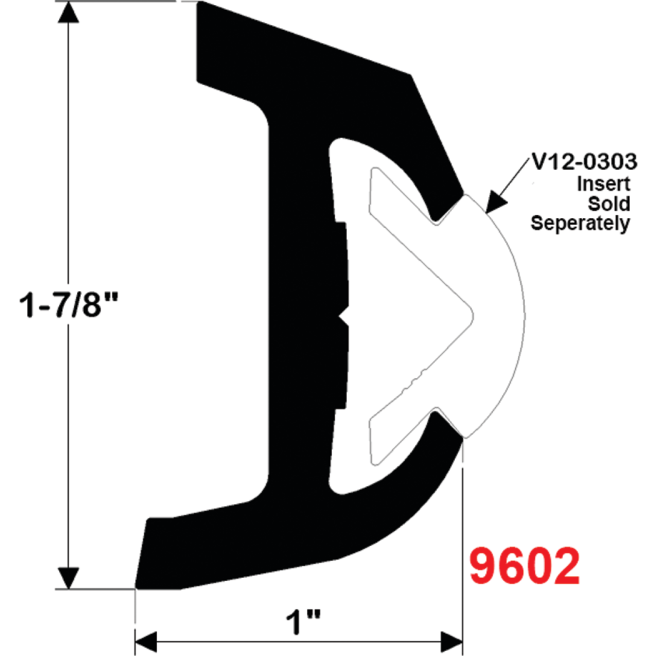

134299TCO V21-9602WHA20D V21-9602WHA20DLoading...Rigid Vinyl Rub Rail, 9602 - Arctic Wht. - 20 ft. x 1-7/8" x 1"Loading...
160588TCO V21-9662WHC20D V21-9662WHC20DLoading...Rigid Vinyl Rub Rail, 9662 - Frosty Wht. - 20 ft, x 1-1/2" x 13/16"Loading...
159598TCO V21-9678BKA20D V21-9678BKA20DLoading...Rigid Vinyl Rub Rail, 9678 - Black - 20 ft. x 1-1/2" x 5/8"Loading...
162902TCO V21-9678WHA20D V21-9678WHA20DLoading...Rigid Vinyl Rub Rail, 9678 - Arctic Wht. - 20 ft. x 1-1/2" x 5/8"Loading...
Add To Cart
