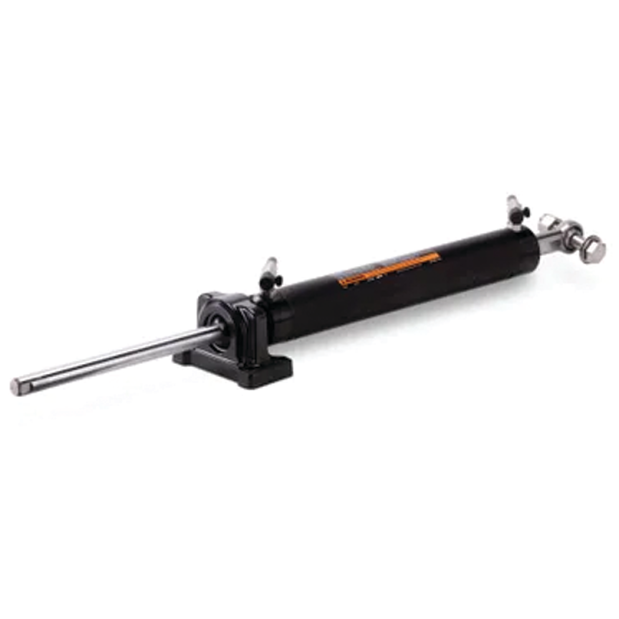

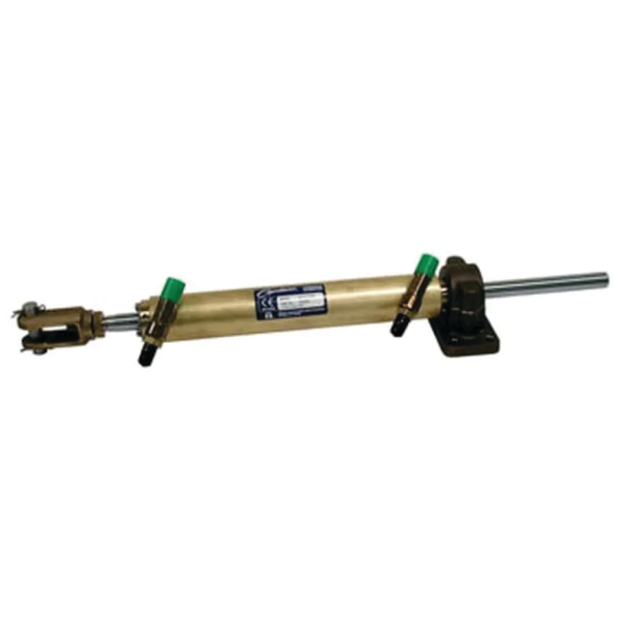

Capilano Inboard Hydraulic Steering Cylinders

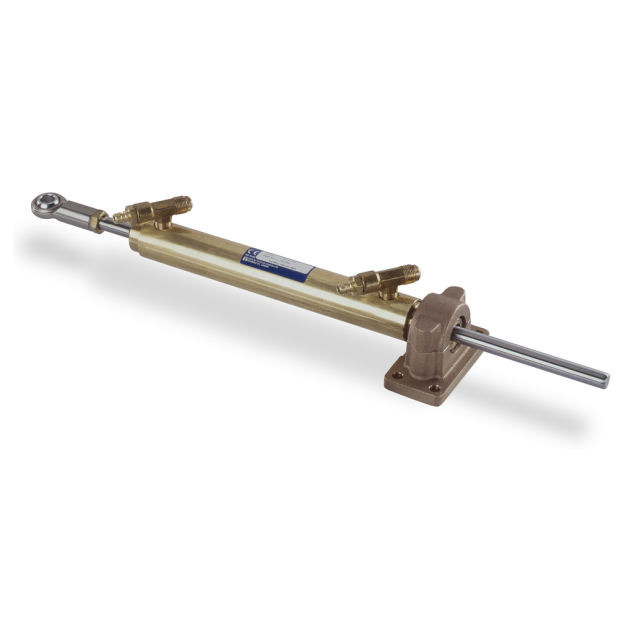

Capilano Inboard Cylinder - BA175-9TM - Ball Joint
SKU: 170580 Item ID: TFX HC5373-3
- Heavy duty brass
- Easy installation
- Single or dual rudder vessels
Description
Cylinders are made from brass & stainless steel and feature stainless steel and bronze mounting hardware. Suitable for single or dual station use.
• Heavy duty brass cylinder
• Easy installation for single and dual rudder vessels
• Cylinders supplied with bleeder fittings
• Two axis articulation
• Easy autopilot interface
Specifications
MFG #:HC5373-3
| Stroke (Joint)9" (Ball)
| Bore Diameter1.75"
Bore Dia (mm)
44.4mm
Bore Diameter
1.75"
Joint
Ball
Seal Kit
HS5183
Shaft Dia (mm)
19.0mm
Shaft Diameter
.75"
Strike (mm)
229mm
Stroke
9"
Torque
12600 IN-LB (145.5 Kg-m)
Type
BA175-9TM
Volume
17.7 CU. IN (290cc)
Barcodes
731957934413
HC5373
731957880185
HC5373-3
HC5373
731957880185
HC5373-3
WARNING
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Stroke (Joint) | Bore Diameter | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 27517 | MFG #: HC5351 | Out of Stock | 7" (Ball) | 2.00" | $1,292.33 | |||
| SKU #: 27521 | MFG #: HC5357 | Special Order Only | 7" (Clevis) | 2.00" | $1,235.29 | |||
| SKU #: 170580 | MFG #: HC5373-3 | Out of Stock | 9" (Ball) | 1.75" | $988.20 | |||
| SKU #: 140573 | MFG #: HC5378 | Special Order Only | 11" (Ball) | 2.00" | $1,420.57 | |||
| SKU #: 51989 | MFG #: HC5379 | 1 Remaining In Stock Ships immediately | 11" (Clevis) | 2.00" | $1,379.70 |
