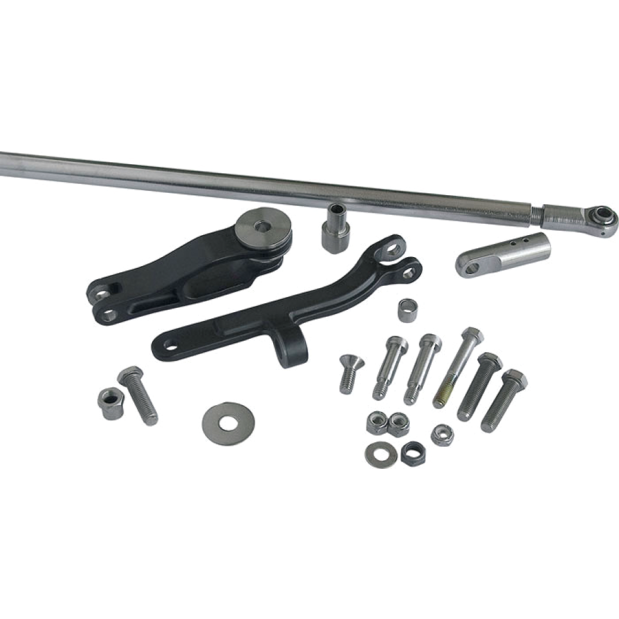

Tie Bar Kit - for Twin Engines with Single Hydraulic Cylinder (Use w/ HC5345, HC5348 & HC5358 Cylinders)

This tie bar kit is used when linking hydraulically steered twin outboard engines with just one pivot-mount steering cylinder.
The HO6003 Tie Bar has a Drive Bracket Assembly at the Hydraulic Cylinder end, and an Eye at the other end for attaching to the tiller arm on the second (slave) outboard.

For triple engine applications, add a second tie bar kit of the type you would use for a dual engine set-up. This will be determined by the number of steering cylinders used, and the engine type.

Kits include the adapter plates, tie bar, and hardware required to connect twin engines that utilize a single front-mount outboard steering cylinder.

NOTE – These kits are for engine center-center distance(s) of 36" or less. For wider engine centers, please call Seastar Solutions Technical Support at 610-495-7011.

Refer to the included Compatibility Chart for specific outboard engine recommendations, as well as notes and exceptions.
