- 5 locking positions
- Smooth operation
- Tapered shaft
Description

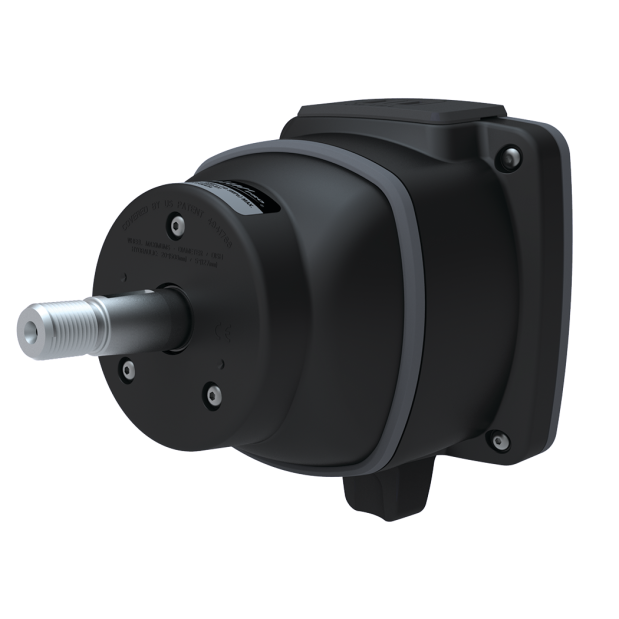

Built for the SeaStar hydraulic helm, these PRO helm pumps with the "Classic" cover style turn your system into a tilt wheel system, or can be a replacement helm pump for the HK63XX and the premium stern drive steering. SeaStar PRO outboard steering helms and cylinders are suited for critical high speed, single powered outboard boats, like bass, flats, combo race/ski and other performance orientated boats capable of speeds in excess of 65mph.
• 5 positive lock wheel positions allow adjustment to the most comfortable steering position
• Very smooth operation and feel

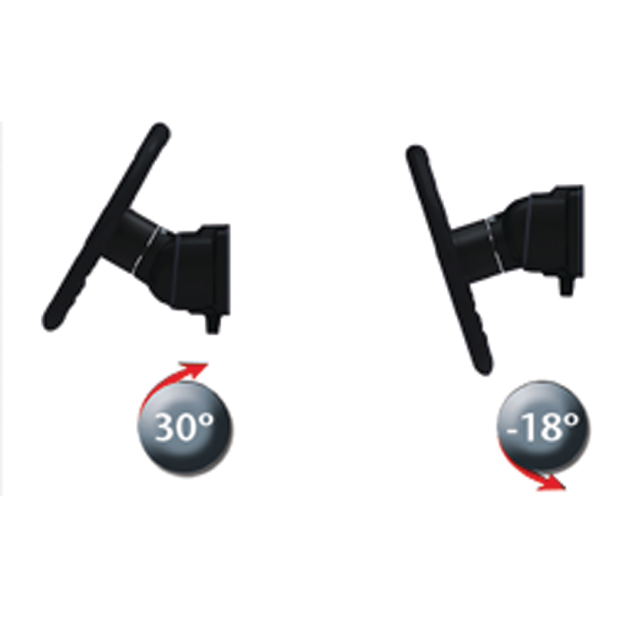

• 48° tilt range - 18° down and 30° up
• Convenient front of dash fill
• Complete with elbow fittings
• Maximum 20" wheel diameter
• Fits steering wheels up to 20"
• 3/4" tapered shaft
• Shaft seals prevent water ingresss
• Pre-loaded dual taper bearings ensure minimal free play
• Compact footprint
• Maintenance free
• Fits most styled and formed dashes
Please Note: All PRO helms must be used with SeaStar PRO hoses and in a SeaStar PRO application only! DO NOT use an un-balanced cylinder with any PRO helm pump.
