SeaStar Inboard Cylinders
SeaStar Inboard Cylinders, BA125-7ATM
SKU: 27487 Item ID: TFX HC5312-3
Description

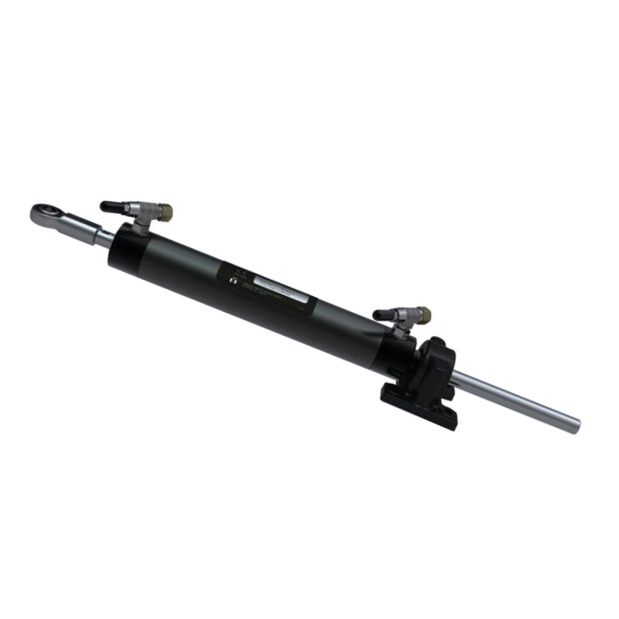

These cylinders are for single and dual rudder vessels with two axis articulation and easy autopilot interface. Cylinders are also supplied with bleeder fittings.
Features:
• Low friction hydraulic steering system
• Configurations for most inboards
• Easy installation on single or dual rudders
• Adjustable O-ring sealed fittings c/w bleeder fittings
• Anodized aluminum or heavy duty brass cylinders (two axis articulation)
• Meets A.B.Y.C. standards
• Meets N.M.M.A. certification requirements
Specifications
MFG #:HC5312-3
| Bore Diameter1.25" (31.7mm)
| Torque5025 IN-LB
Bore Diameter
1.25" (31.7mm)
Seal Kit
HS5154
Shaft Diameter
.63" (16.0mm)
Stroke
7" (178mm)
Torque
5025 IN-LB
Type
BA125-7ATM
Volume
7.2 CU IN (118cc)
Barcodes
731957801685
HC5312-3
731957900487
HC5312-3
731957900487
WARNING
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Bore Diameter | Torque | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 27487 | MFG #: HC5312-3 | 1 Remaining In Stock Ships immediately | 1.25" (31.7mm) | 5025 IN-LB | $751.31 | |||
| SKU #: 27493 | MFG #: HC5313-3 | 1 Remaining In Stock Ships immediately | 1.35" (34.9mm) | 5741 IN-LB | $774.92 | |||
| SKU #: 27496 | MFG #: HC5314-3 | 2 In Stock Ships immediately | 1.50" (38.1mm) | 7117 IN-LB | $801.62 | |||
| SKU #: 27507 | MFG #: HC5319-3 | 5 In Stock Ships immediately | 1.75" (44.4mm) | 9569 IN-LB | $861.30 |
