Seastar Kicker Cable Tie Bar

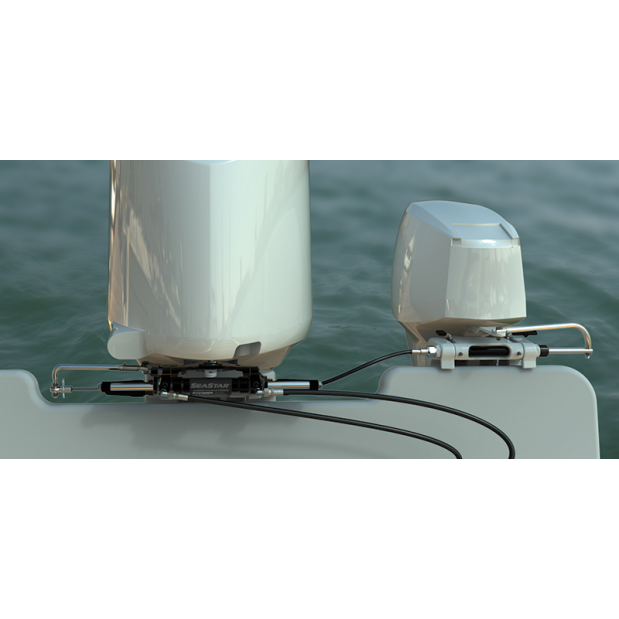

This new SeaStar product allows a user to manually steer an auxiliary engine (kicker motor) using their existing SeaStar hydraulic steering system. Today this is accomplished with a variety of solid mechanical linkages between the main engine and the auxiliary engine. SeaStar has developed a patent pending design that incorporates an Xtreme cable as the linkage between the two engines.

The SeaStar Kicker Cable Tie Bar has been engineered for easy and secure installation on outboard powered vessels with SeaStar hydraulic steering. By using a universal ABYC steering connection on the kicker motor, SeaStar Solutions® has made it simpler than ever for builders, dealers and boaters to rig, operate and steer both motors simultaneously.

• Flexible cable allows for adjustable locations of kicker motor
• Allows independent trim/tilt of both engines
• Allows full steering stroke of both engines
• Simplified installation using universal ABYC steering connection (as per ABYC P17 & P21 standards) on kicker motor
• Retrofittable to SeaStar Front Mount Cylinders
• Incorporates unique patented Xtreme cable technology

Installation Note: Kicker Cable Tie Bar systems require a minimum clearance of 14 " from the end of the tilt tube towards the motor side well or gunnel

Important Notice:
• Will NOT work with a BayStar Steering System
• Will ONLY work with SeaStar HC5345, HC5358 and HC5348 steering cylinders
• Do NOT use on Honda 200-250HP engines, cable damage will occur

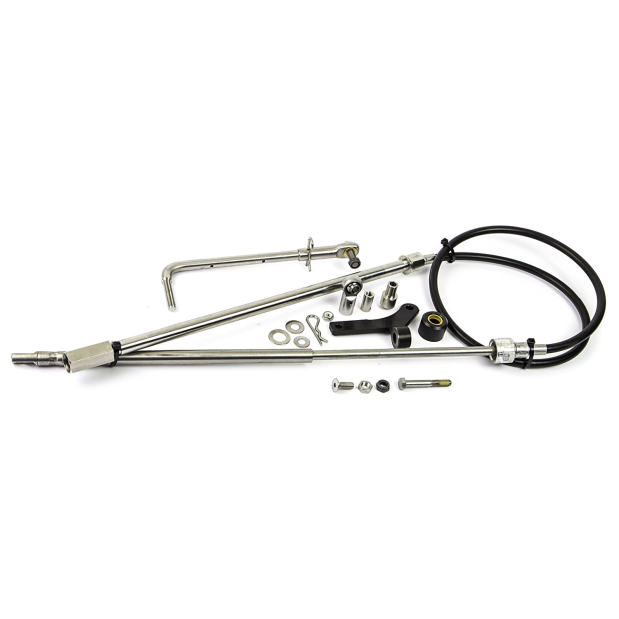

What's Inside:
• 1 Steering Cable Assembly (TFXtreme 40 series cable and a custom drilled out support rod)
• 1 Pivot Cylinder Drive Link-arm (connects the drive bracket to one side of the cable assembly)
• 1 Pivot Cylinder Drive Plate (allows for the link-arm to mount to the pivot cylinder pivot plate)
• 2 Support Brackets (keyed version for use with this product)
• Fasteners
Not Included: Drive/drag link from auxiliary (kicker) engine to the end of the kicker steering cable
