SeaStar Sport Tilt - Hydraulic Tilt Steering
SeaStar Sport Tilt - Hydraulic Tilt Steering

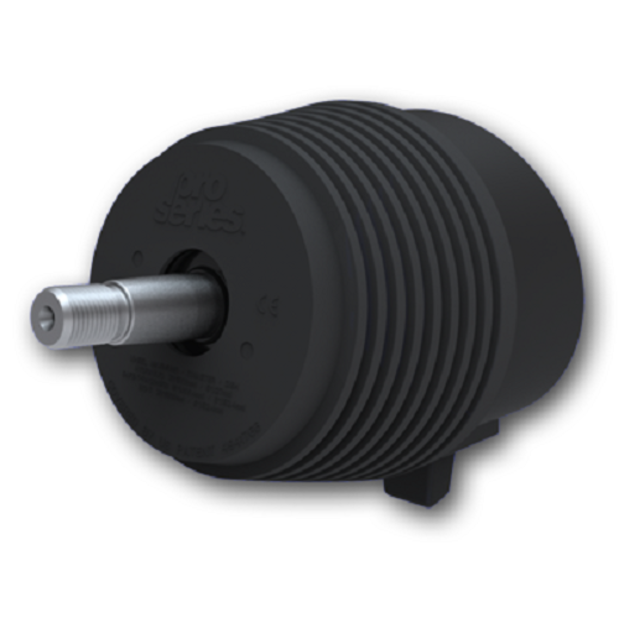

SeaStar Sport Tilt - Hydraulic Tilt Steering - 1.7 cu. in.
SKU: 1043116 Item ID: TFX HH6191-4
- 5 wheel positions
- 48 degree tilt range
- Range of displacements
Description
The ultimate in tilt steering technology, the SeaStar Sport Tilt Steering delivers unsurpassed performance and flexibility making it the perfect system for all possible applications and boat types. All hydraulic tilt helms listed include the hydraulic helm and tilt mechanism with cover.
• Newly designed tilt mechanism
• 5 wheel positions allow adjustment to most comfortable steering position
• 48 degree tilt range (12 down – 36 up)
• Maximum steering wheel diameter is 20? (508mm)
• Note: All sport tilt helms are shipped with remote filler tube
• Available in 1.7, 2.0 and 2.4 cubic inch displacements
• Remote fill point
• Comes complete with elbow fittings
Specifications
MFG #:HH6191-4
| Displacement1.7 cu. in.
Displacement CU IN
1.7 cu. in.
Pro Series
