TEMO 450 Spare Chargers

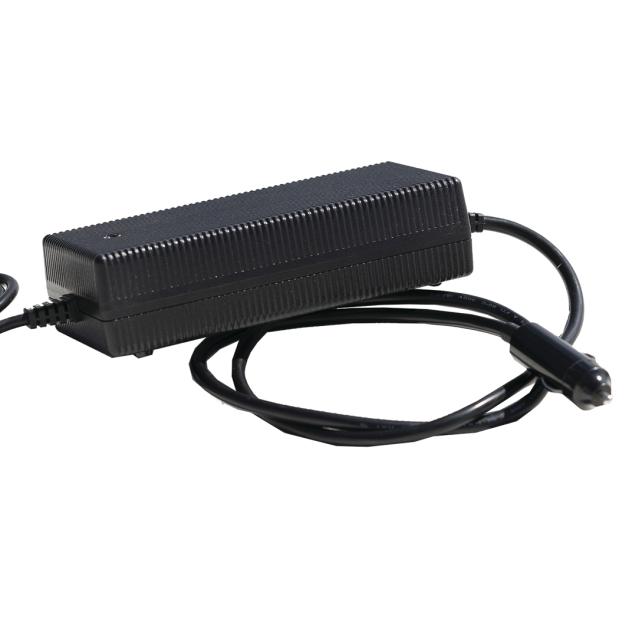

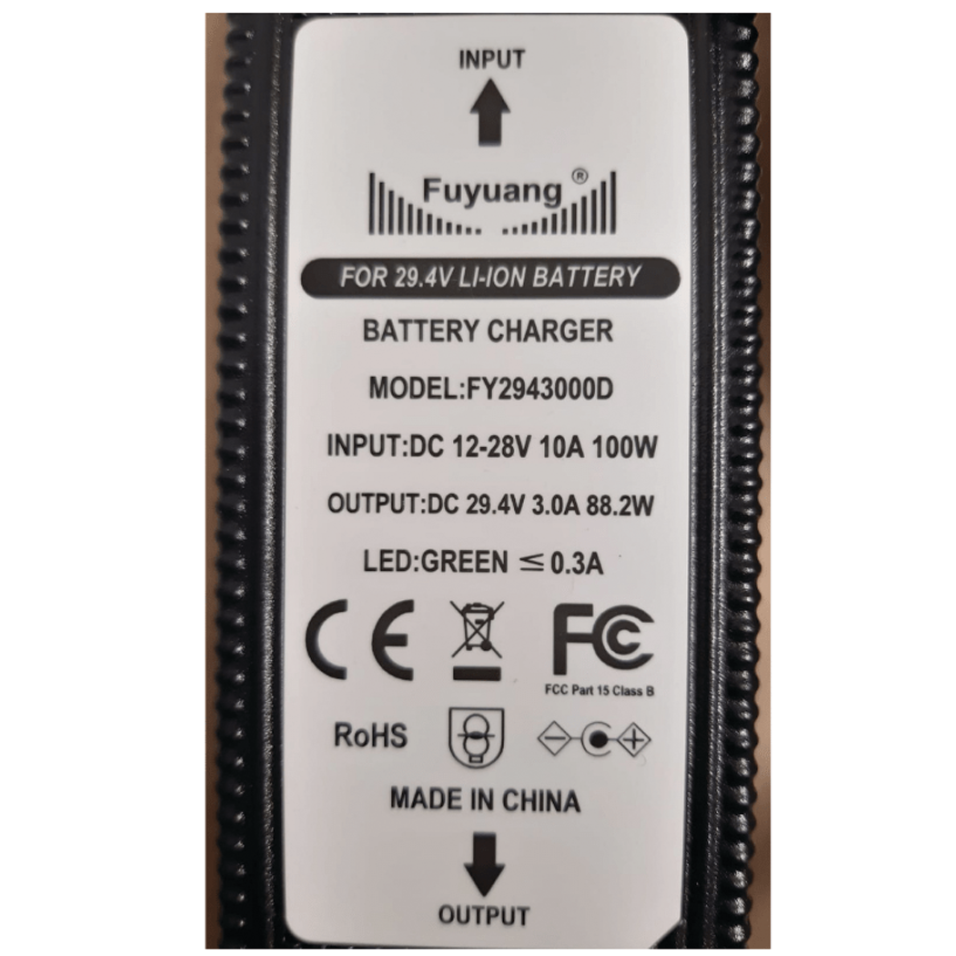

TEMO's 12V charger has been specially designed to recharge your TEMO·450 aboard your boat, using a cigarette-lighter type socket.
With a power of 100 watts (up to 8.3 amps at 12V), the charger consumes approximately 30 Ah at 12V for a full charge. Your TEMO·450 battery will be fully charged in approximately 3½ hours.

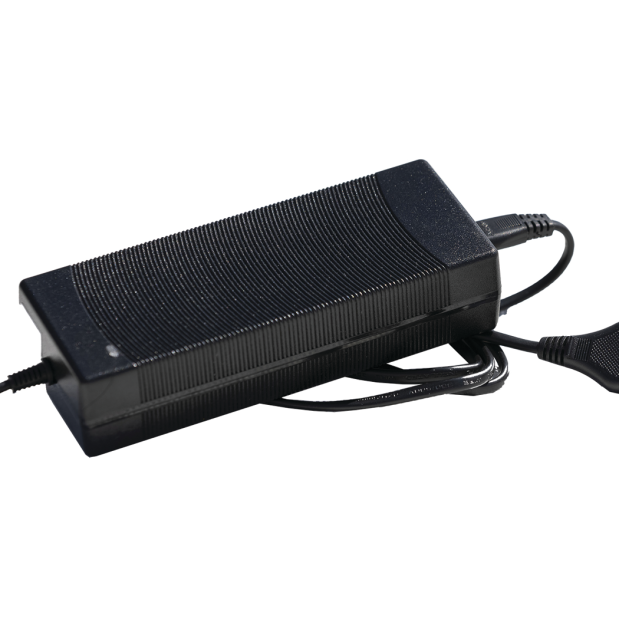

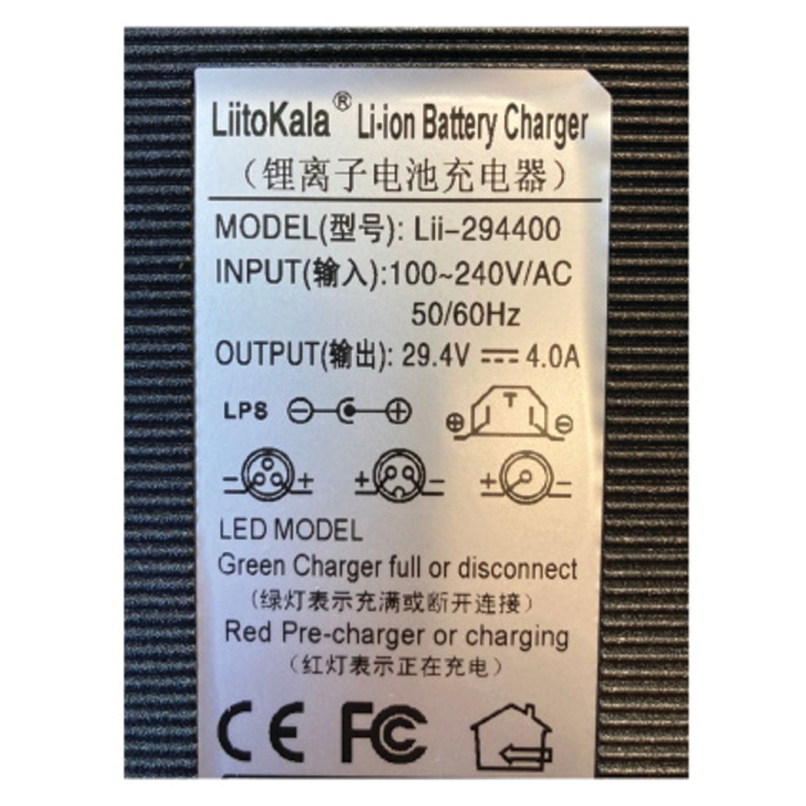

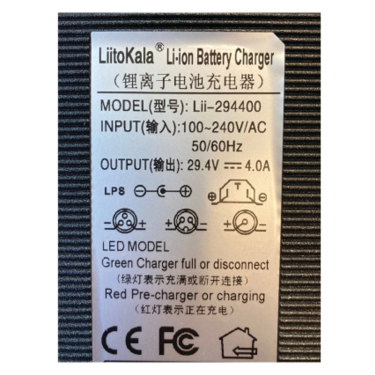

The 110/220V charger has been specially designed for TEMO·450 motors and is supplied initially when you purchase your motor. With 116 watts of power, it allows you to fully charge the battery of your TEMO·450 in 3 to 3½ hours. This is with an energy consumption of around 0.37 kWh (8 cents per 3½ h).
With the 110/220V charger, recharge your TEMO·450 from a mains socket (220V).

Instructions for use:

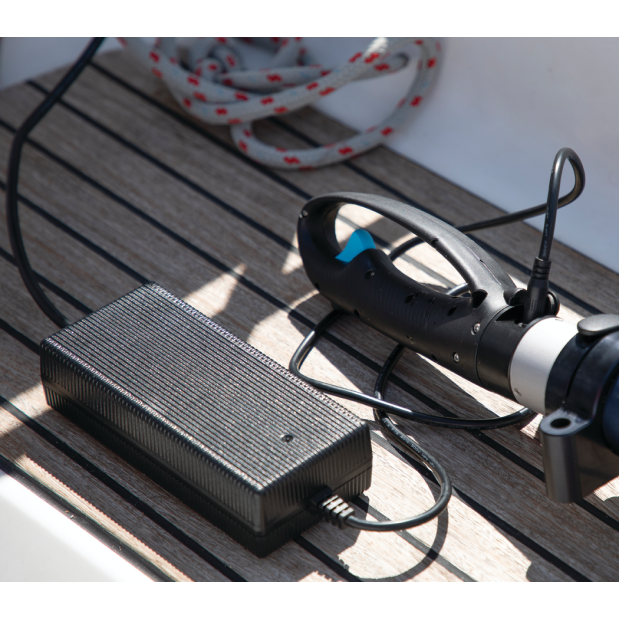

Before plugging in your motor to charge up, make sure you use the charger in a well-ventilated area and do not cover the TEMO or the charger to avoid overheating during the charging process.

Note that the TEMO·450 charging connector is waterproof and IP67 certified. However, always check that the connector is dry and that the charger itself is not wet before charging to avoid the risk of a short circuit or sparks.
When charging the TEMO·450, do not plug in the magnetic key, as the motor gauge does not indicate the state of charge. When charging is complete after around 3-1/2 to 4 hours (12V) or 3 to 3-1/2 hours (110V) if the battery is completely flat, the charger indicator light will change from red (while charging) to green, indicating that your TEMO·450 is fully charged.
To disconnect your TEMO·450, remove the plug from the power first, then the plug from the motor itself.
