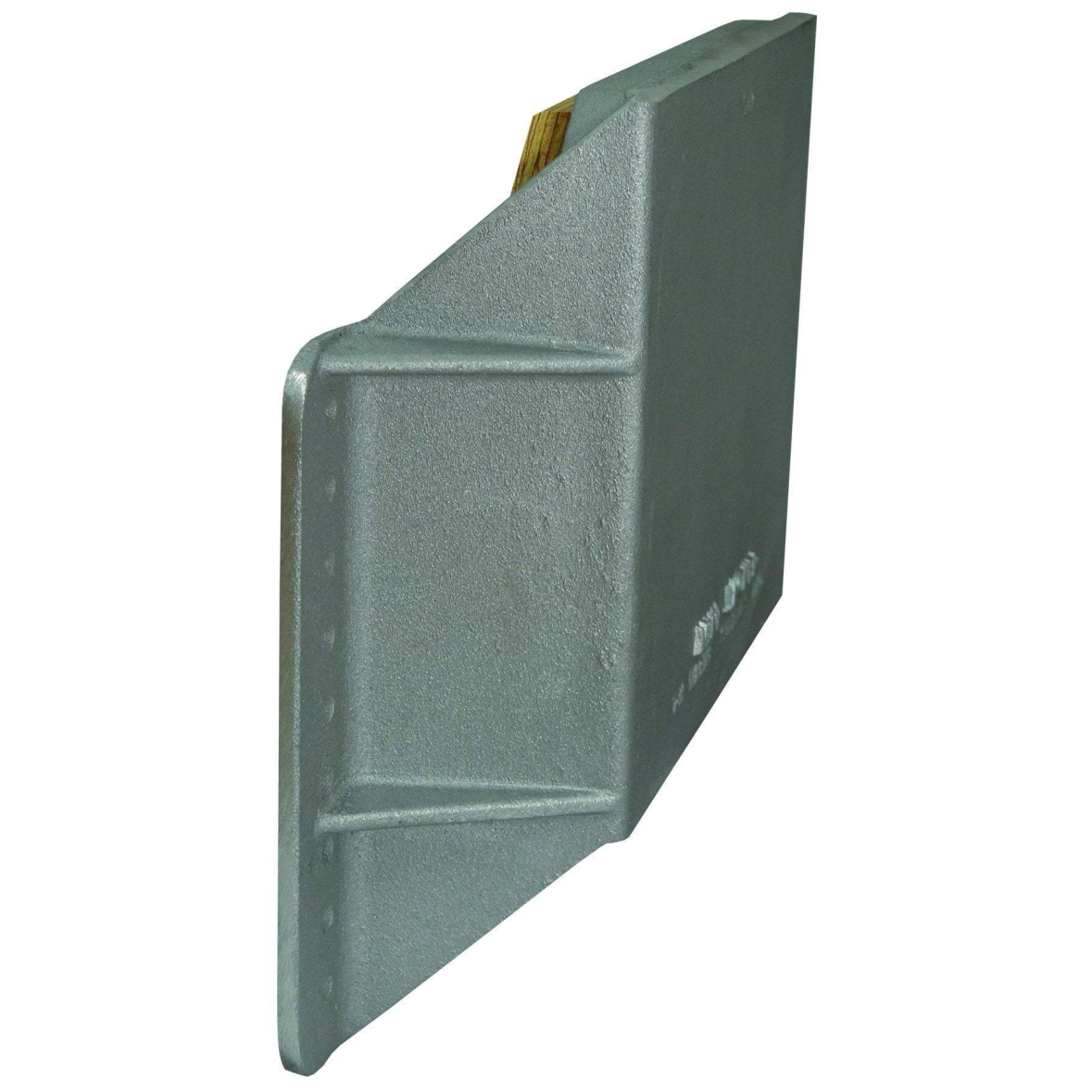

Mini Jacker Offset Outboard Jack Plate

The Mini Jacker™ allows mounting of long shaft engines to boat transoms designed for short shaft engines. This cast aluminum offset-type jack plate is designed for clamp-on mount outboard motors up to 35 HP.

The Mini-Jacker™ stands off transom 4".

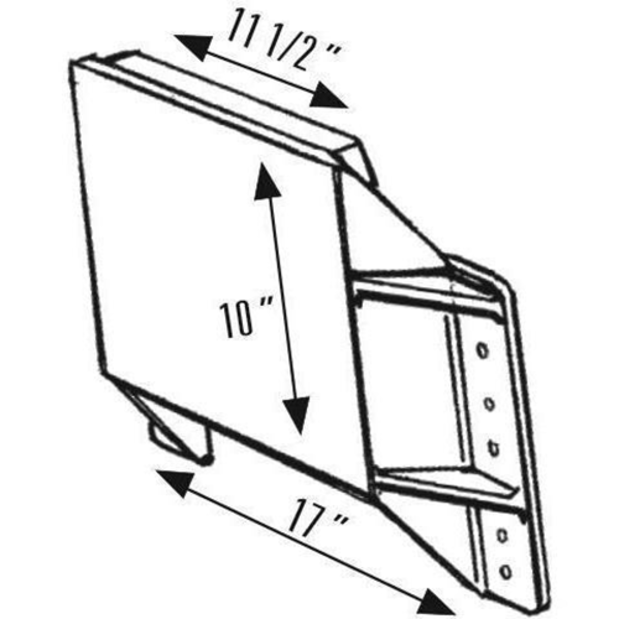

The engine mounting surface is 11-1/2" wide x 10" high and features a vertical offset of 3".
The overall width of transom mounting flange is 17".

Super for skiffs, aluminum boats, and inflatables.

• “Clamp Style” Small Outboard Jack Plate
• Cast Aluminum Bracket

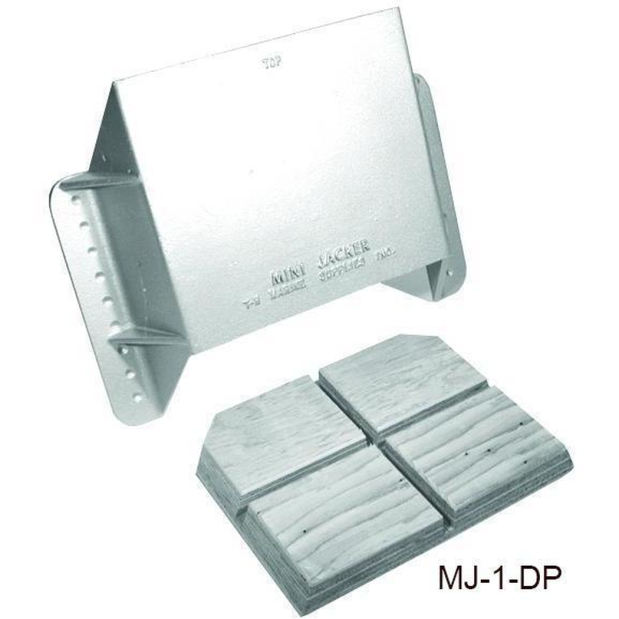

• Marine Grade Transom Block
• 4” Setback – 3” Vertical Offset
• Max Wt – 150lb
• Max HP-35
