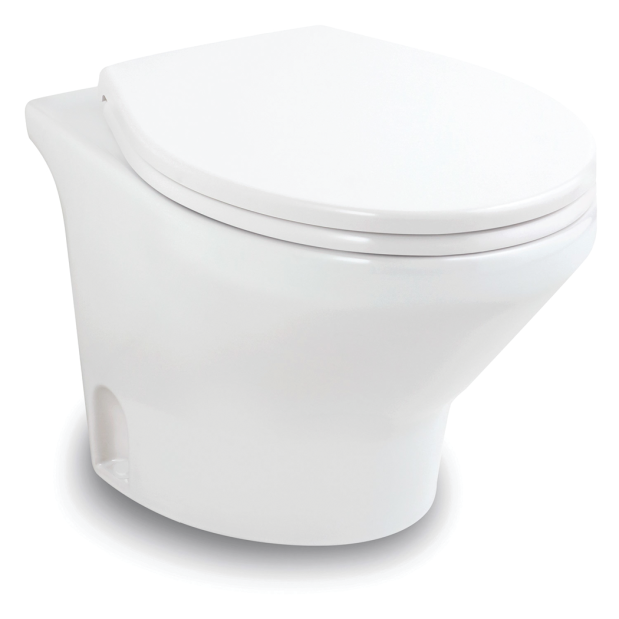

Compass Premium Plus - Short - 12V DC

The Thetford Tecma Compact Line is recommended for yachts of length ranging between 20 and 50 feet. It is a real challenge for a yacht designer to assemble all the components in the volume space of a 20-50 foot yacht, as boat owners expect to find the same level of comfort of a bigger yacht. These Tecma toilets are equipped with a properly sized macerator pump combined with a space saving toilet shape.

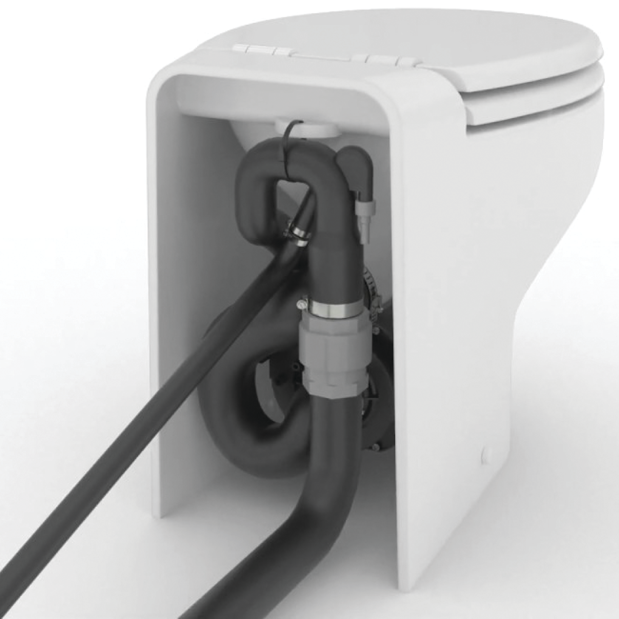

The narrow footprint and smart back of the Compass toilet gives maximum space and maximum flexibility wherever it is installed on board. It can go straight to the wall or even further towards the hull thanks to the cut away. The Compass is not limited by a vertical back. In this way the visual installation remains perfect, whatever installation space you have. The small footprint and the hose design facilitate a very easy installation. The discharge pipes can easily be connected either below the step or surface mounted in all directions.
The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing and wiring is easy and fast, with virtually no maintenance.
Equipped with an innovative soft closing system. A gentle finger touch to the lid activates the soft-close damper mechanism which controls the closing speed of the cover. In addition to user convenience, a slow-closing lid keeps noise to a minimum and prevents potential damage to the toilet seat.
The softclose damper mechanism is a design original to Tecma.
• Compact toilet with a small footprint
• 12V DC (24V available on special order)
• Perfect visual installation
• Due to overhanging back it is straight to the wall
• Flexible installation options
• Easy to use
• Easy to control the water consumption (0.1 - 0.5 gal per flush)
• Fully self contained
• Low in maintenance
• No need to replace valves and seals

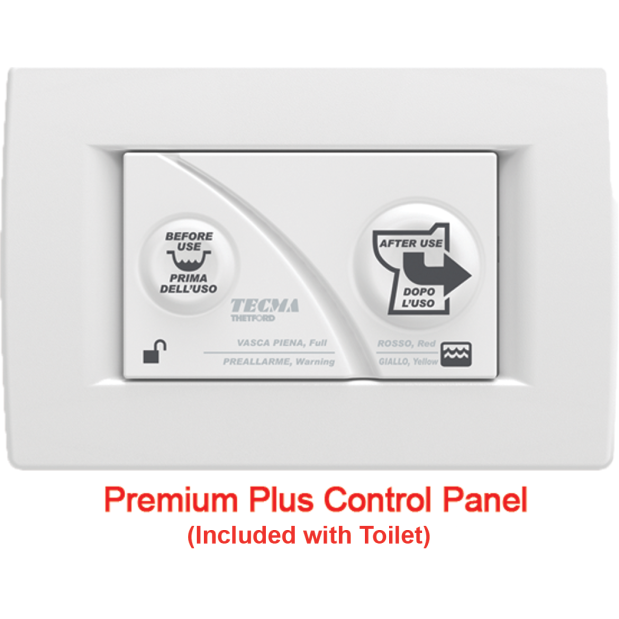

Premium Plus Control Panel (included)
Silicon pad control panel with Tecma patented Smart Flush technology. Water amount trim, overfill protection and tank monitoring. Flushing cycle and fittings specially designed for Compact line. Sailing mode function not available. Fresh water solenoid or raw water pump required for installation but not included.
