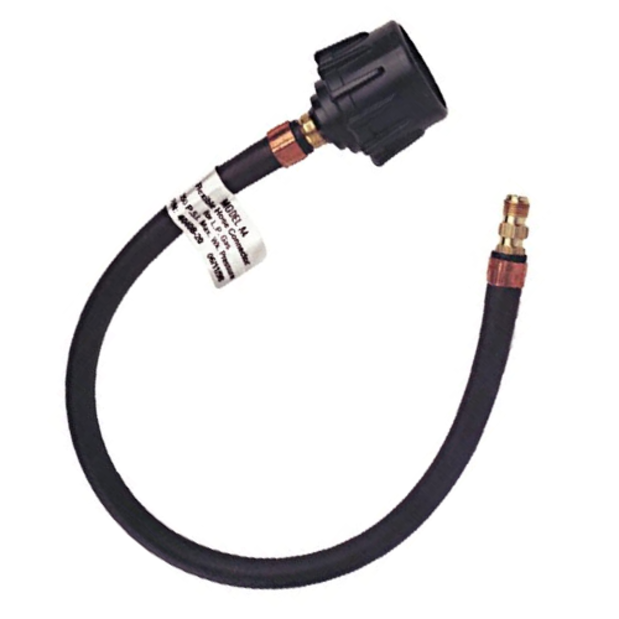

This hose assembly is used to connect a wall mounted regulator with a female inverted flare inlet, to a (newer) gas cylinder with a Type 1 valve that has outside RH threads, as well as internal left-hand threads.
This hose assembly is 20" long, and is fully assembled and leak tested. It has a convenient black plastic hand-tightened nut fitting on the tank end.
• Connections: hand nut connection for Type 1 tank x 1/4" male inverted flare fitting, specifically compatible with Trident and some Xintex regulators
• Allows no gas flow unless fully connected
• Nut has heat sensing feature that shuts off all gas flow if temperatures reach 240° - 300° F
• In case of a downstream gas leak, a flow control device activates and restricts further gas flow to <10 cu ft/hr (@ 100 psi)
• UL listed
