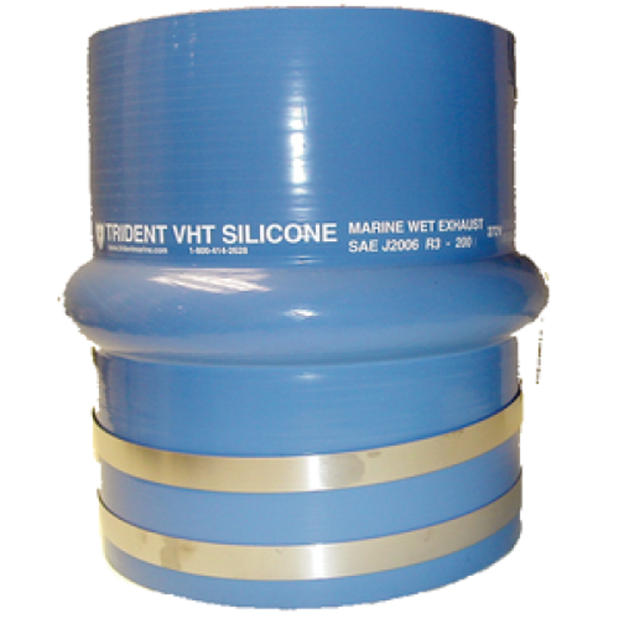

Reinforced VHT Blue Silicone Bellows - Single Hump

272V Series - Blue 350 Deg Max | Single Hump - Reinforced | Very Hi Temp; w/ or w/o Clamps

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Silicone Hump Hose Bellows provide flexible connectors for marine wet exhaust systems. They offer much greater tolerance to heat, misalignment, engine movement and vibration than rigid connectors, with significant savings in cost, parts, labor and space.

Characteristics of the 272V Series of Bellows Exhaust Hose:
Glossy blue, very high temperature, 100% silicone* rubber, which is reinforced with multiple plies of polyester fabric.
Single hump.
Designed for wet exhaust & higher pressure critical water service.
Available from 2" to 12" inside diameter.

• 100% blue silicone rubber bellows - rated -65°F to +350°F maximum, continuous duty, with a 10-year warranty
• Hand built
• Inlet/outlet cuffs are long enough to fit 2 hose clamps
• Note: Any part #s ending in SS come with 4 wide stainless T-bolt hose clamps


High Temperature Exhaust Hose Color Comparison
• Black exhaust hoses: made from molded, high temperature, black EPDM rubber. Rated -40°F to +250°F maximum continuous, with a 5-year warranty
• Blue exhaust hoses: made from a very high temperature, blue silicone rubber. Rated -65°F to +350°F maximum continuous, with a 10-year warranty
• Red exhaust hoses: made from an extra high temperature, red silicone rubber. Rated -65°F to +500°F maximum continuous, with a 10-year warranty

The addition of multi-ply fabric reinforcing enhances a hose's pressure resistance for coolant, turbocharger, and other higher pressure applications.


*Silicone rubber's outstanding characteristic is its resistance to higher temperatures, as well as having a longer service life than EPDM. Silicone hose is compatible with water and anti-freeze/coolants.
By comparison, EPDM (Ethylene Propylene Diene Monomer, commonly referred to as EPDM or EPDM rubber) can withstand modestly high temperatures and exhibits excellent resistance to environmental factors such as Ozone, UV, acids, bases, and general weathering.
Neither of these synthetic rubbers is compatible with fuel or oil, so be careful to protect from exposure.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDTrident Marine Hose & Propane#AvailabilityDescriptionUOMYour PriceQTY
440939HOS 272V1580 272V1580Loading...Reinforced Blue 100% Silicone Exhaust Bellows - 1-5/8" ID, Single Hump, w/o ClampsLoading...
133702HOS 272V2000SS 272V2000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 2" ID, Single Hump, w/ ClampsLoading...
137439HOS 272V2120 272V2120Loading...Reinforced Blue 100% Silicone Exhaust Bellows - 2-1/2" ID, Single Hump, w/o ClampsLoading...
76741HOS 272V3000SS 272V3000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 3" ID, Single Hump, w/ ClampsLoading...
76742HOS 272V3120SS 272V3120SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 3-1/2" ID, Single Hump, w/ ClampsLoading...
76743HOS 272V4000SS 272V4000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 4" ID, Single Hump, w/ ClampsLoading...
76744HOS 272V5000SS 272V5000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 5" ID, Single Hump, w/ ClampsLoading...
79833HOS 272V6000SS 272V6000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 6" ID, Single Hump, w/ ClampsLoading...
368853HOS 272V8000 272V8000Loading...Reinforced Blue 100% Silicone Exhaust Bellows - 8" ID, Single Hump, w/o ClampsLoading...
79834HOS 272V8000SS 272V8000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 8" ID, Single Hump, w/ ClampsLoading...
139370HOS 272V10000 272V10000Loading...Reinforced Blue 100% Silicone Exhaust Bellows - 10" ID, Single Hump, w/o ClampsLoading...
79835HOS 272V10000SS 272V10000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 10" ID, Single Hump, w/ ClampsLoading...
95930HOS 272V12000SS 272V12000SSLoading...Reinforced Blue 100% Silicone Exhaust Bellows - 12" ID, Single Hump, w/ ClampsLoading...
