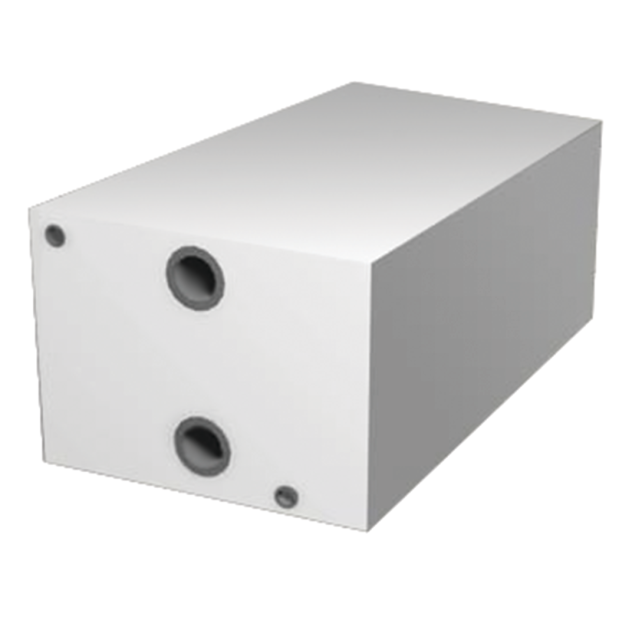

This tank is rotationally molded to form a seamless, one piece, non-corroding linear polyethylene unit that meets FDA CFR 177.1520 and Coast Guard regulations.
The tank is guaranteed to be extremely durable and will not collapse when emptied with high capacity pumps.
• Overbuilt, stiff, full 3/8" wall thickness won't allow odors to permeate
• (2) Large ports - 1-1/2" female NPT - one for fill; and one for emptying (when used as a holding tank)
• (2) Small ports - 1/2" female NPT - one for vent; and one for outflow (when used for drinking water)
• All openings are located on one end of the tank
Tank bottoms should be fully supported when installed; connect using flexible hose

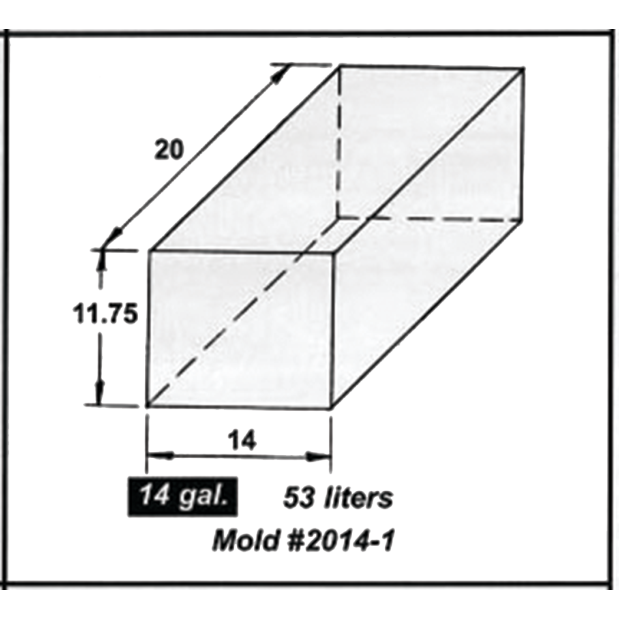

Dimensions - 20"L x 14"W x 11-3/4"H
This tank is available in a "Blank" version without any ports — so you can install your own ports in the locations required by your installation. Please inquire at 800-426-6930.
