- High strength
- Superior corrosion resistance
- 17-4 PH stainless steel
Description

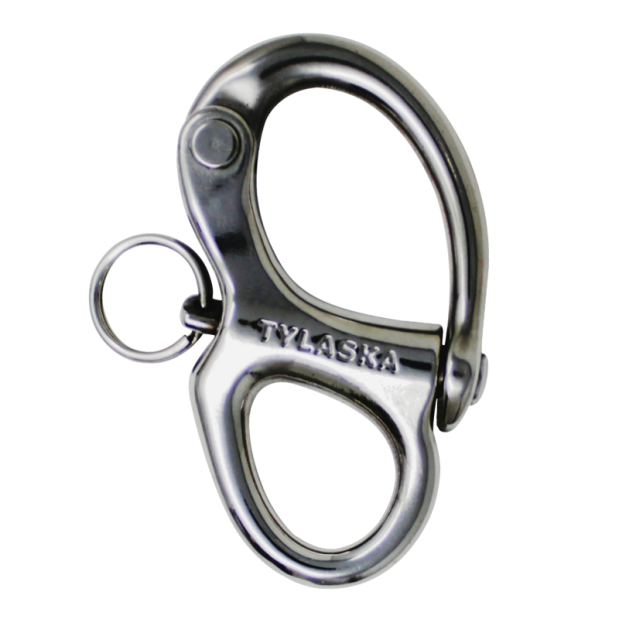

The CR snap shackle incorporates the extreme strength, outstanding corrosion resistance, and aerospace quality of Tylaska’s high performance racing hardware at a price that the cruiser or casual racer will find appealing.
• 100% proof loading to W.L.L.
• High strength 17-4 PH stainless steel
• Superior corrosion resistance
• Sleek snag-resistant geometry
• Captive plunger-pin mechanism with firm spring action
• Captive crimped plunger pin

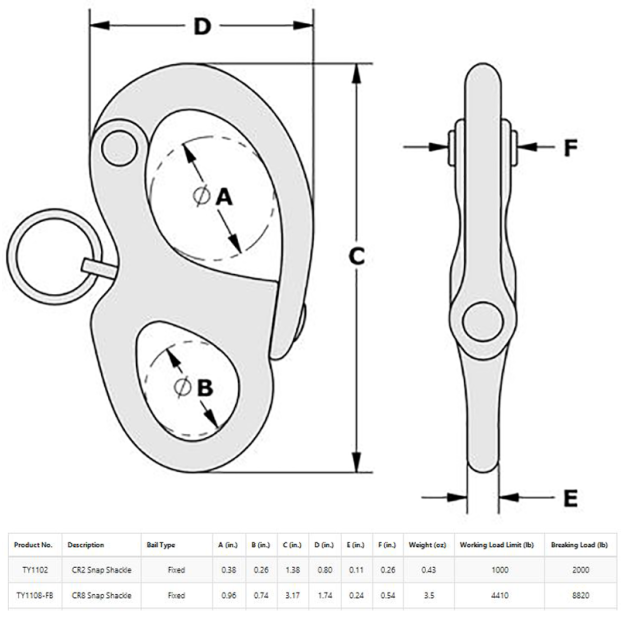

Specifications
MFG #:TY1102
"A"
0.38" (9.7 mm)
"B"
0.26" (6.6 mm)
"C"
1.38" (35.1 mm)
"D"
0.80" (20.3 mm)
"E"
0.11" (2.8 mm)
"F"
0.26" (6.6 mm)
Breaking Load
2000 lbs (910 kg)
Weight
0.43 oz (12 g)
Working Load Limit
1000 lbs (455 kg)
