- Fixed bail
- Superior corrosion resistance
- 17-4 PH Stainless steel
Description

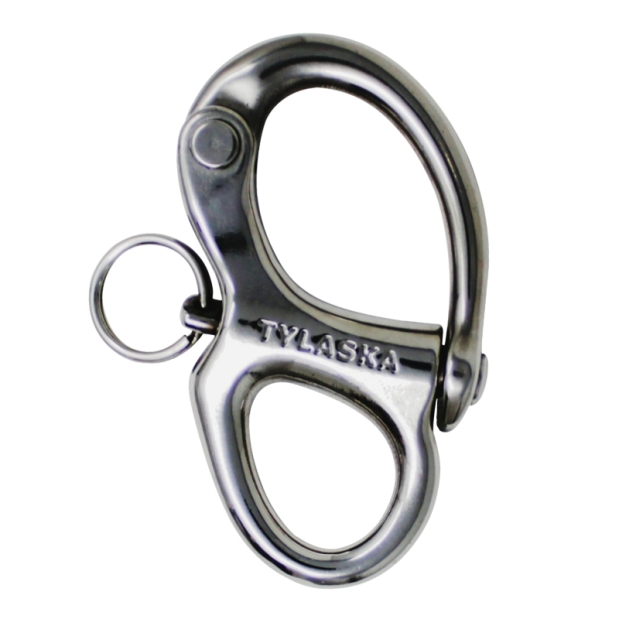

The CR snap shackle incorporates the extreme strength, outstanding corrosion resistance, and aerospace quality of Tylaska’s high performance racing hardware at a price that the cruiser or casual racer will find appealing.
• 100% proof loading to W.L.L.
• High strength 17-4 PH stainless steel
• Superior corrosion resistance
• Sleek snag-resistant geometry
• Captive plunger-pin mechanism with firm spring action
• Captive crimped plunger pin
• Working Load Limit: 4,000 lbs, Breaking Load: 8,000 lbs

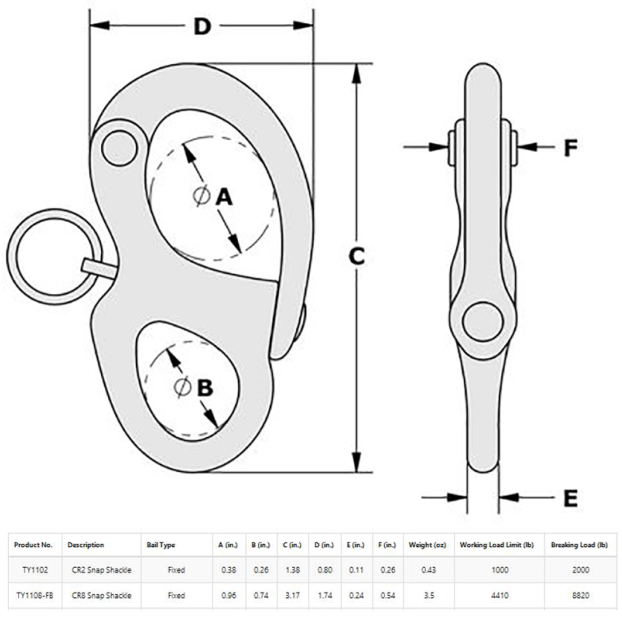

Specifications
MFG #:TY1108-FB
"A"
0.96" (24.4 mm)
"B"
0.74" (18.7 mm)
"C"
3.17" (80.5 mm)
"D"
1.74" (44.2 mm)
"E"
0.24" (6.1 mm)
"F"
0.54" (13.7 mm)
Weight
3.5 oz (99 g)
Working Load Limit
4410 lbs (2000 kg)
Breaking Load
8820 lbs (4000 kg)
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
