Triple Engine with Dual Hydraulic Cylinders Tie Bar

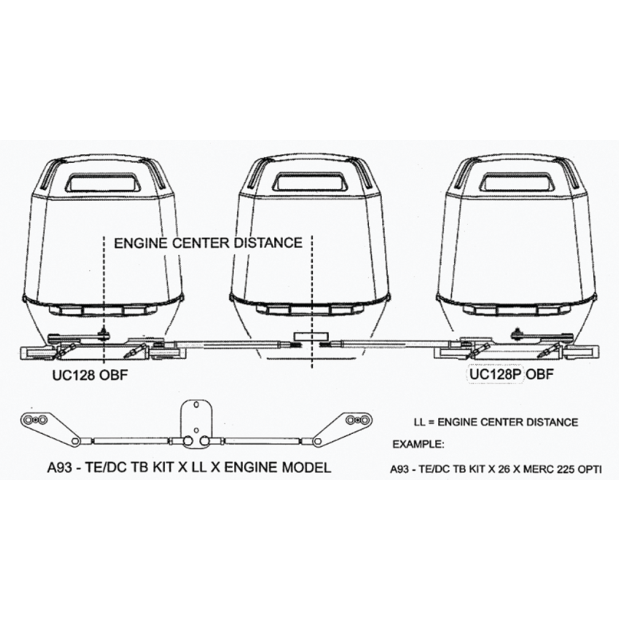

Suitable for applications with triple outboard engines and dual cylinders UC128-OBF (or UC128-SVS)

4 different lengths available:
A93 x 26 - 42613Y - 26” (660,4 mm) twin engine centers
A93 x 27 - 42637N - 27” (685,8 mm) twin engine centers
A93 x 28 - 42638R - 28” (711,2 mm) twin engine centers
A93 x 30 - 42639T - 30” (762,0 mm) twin engine centers

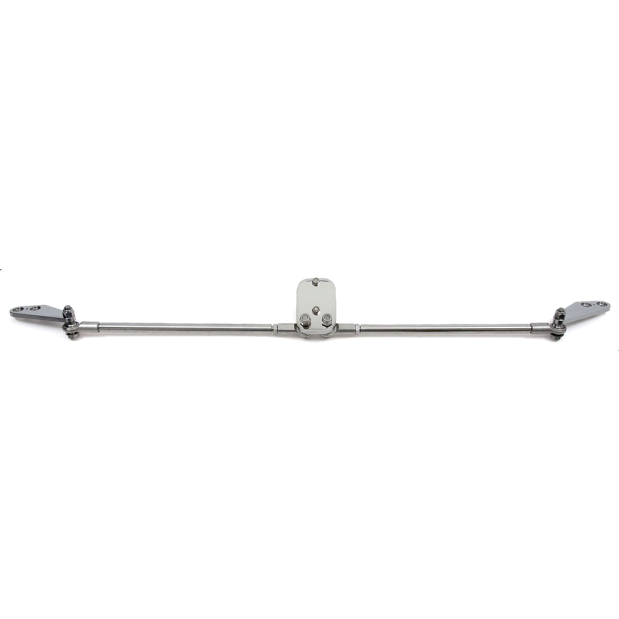

Heavy duty triple engine/twin cylinder tie bar kit for use with UC128 and UC128P “Port” version outboard cylinders. Suitable for use with Protech and SilverSteer™ cylinders these AISI 304 electropolished and passivated stainless steel tie bars are simple to install and allow for independent trimming of engines with minimal effect on engine alignment.

ATTENTION: As the tiller arm position varies from engine to engine and the distance between two engines is not predictable, unexpected interferences may occur while tilting.
We recommend that, after the tie bar installation, you carefully check for binding when both engines are tilted, or when one is tilted but the other is not (say, in the case of one engine breaking down.
Should you need additional information, please contact U-Flex Technical Help Service at 941-351-2628.
