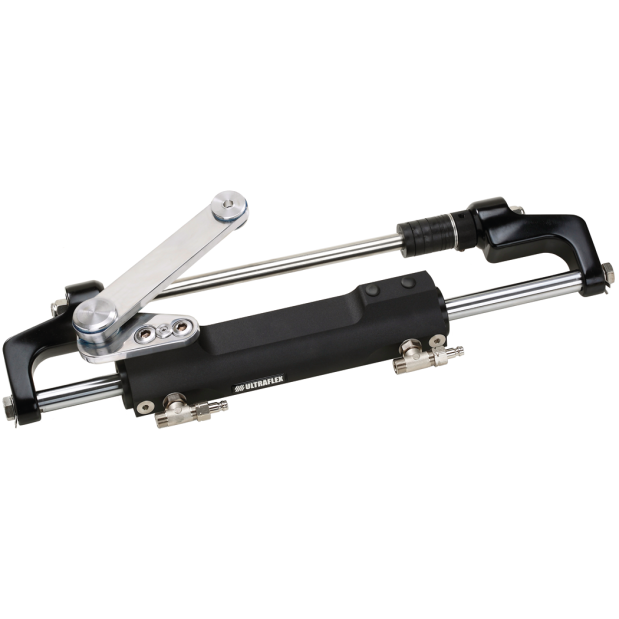

UC128TS SilverSteer Front Mount Outboard Cylinder

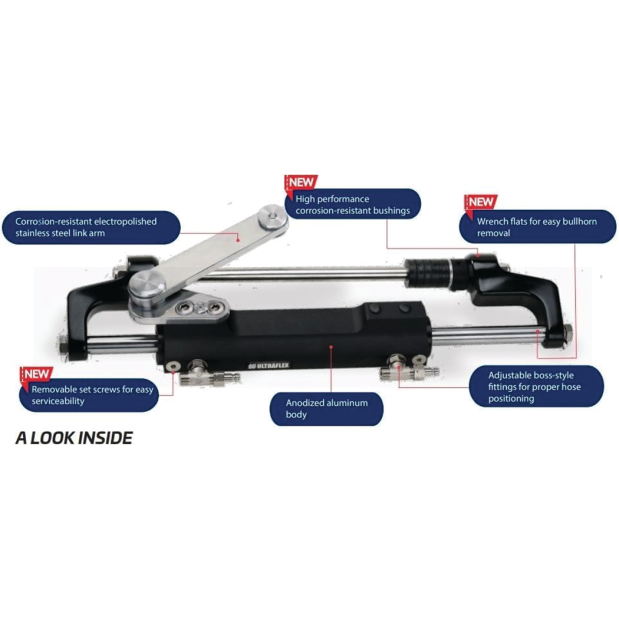

The Protech Front Mount Outboard Steering Cylinders are characterized by their durability and performance. The UC128TS cylinder signifies a significant enhancement over its predecessor. The newly introduced Triple Sealed End Cartridges not only extend the lifespan but, in contrast to competing products, the seals can now be replaced easily and at a low cost.

Engineered specifically for high-performance, high-torque applications, the SilverSteer™ UC128 SVS cylinder is highly recommended for bass boats, flat boats, and tournament fishing vessels.

• Compatible with competing helms, hoses and oil, the UC128-SVS cylinder is built with heavy duty stainless steel cylinder rod, seals and link assemblies, is simple to install and fits almost every 2 and 4 stroke outboard engine on the market.
• Depending on the applications on the outboard engines, the UC128-SVS is available in 3 versions – see the application guide to choose the appropriate cylinder (UC128-SVS/1, UC128-SVS/2, or UC128-SVS/3) for your application.
• UC128-SVS cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and preassembled hoses (Kit OB and Kit OB/R5).
• In the applications with dual UC128-SVS cylinder it is necessary to order a standard UC128-SVS cylinder (link arm attached to the starboard side of the cylinder) and a port UC128P-SVS cylinder (link arm attached to the port side of the cylinder). See tie bars section to select the required model for dual engine/dual cylinder applications. Depending on the applications on theoutboard engines, the UC128P-SVS cylinder is available in 2 versions

APPLICATION: UC128-SVS front mount cylinder is not recommended for use in installations where the boat speed exceeds 69 mph (60 knots); 75 mph (65 knots) in dual engine, dual cylinder and counter rotating engines application).
Not intended for use in racing applications.

Meet with the EN28848, EN29775, ABYC P22 and UKCA standards
