- 3/4" stainless steel shaft
- Includes 90° 3/8” fittings
Description

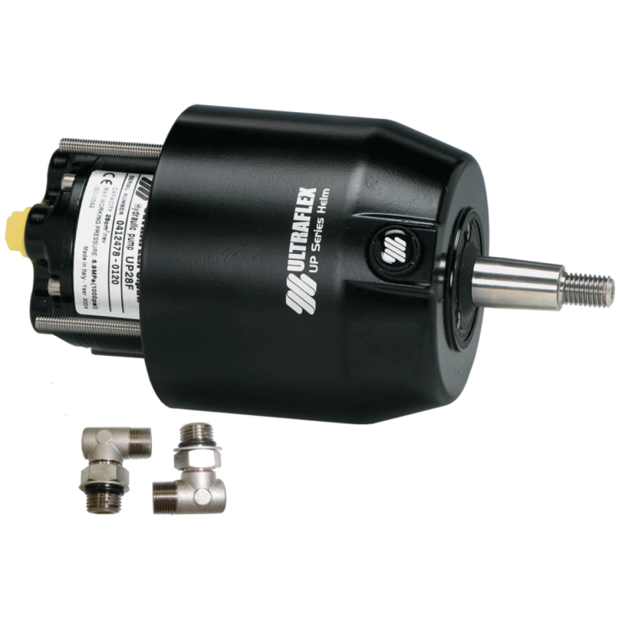

Front mount helm pump. Compact, axial pistons. Lock valve for positive rudder lock.
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4" tapered stainless steel shaft
• Easy accessible lock valve and shaft seal for replacement
• Includes 90° adjustable fittings for 3/8” hose
• Ball bearing piston race
• Cast iron rotor for greater durability and longer life
• X64 square flange or X57 round flange to install the pumps with intermediate dashboard position.
• Tilt mechanism: X72 tilt range of 60° and five locking positions
Specifications
MFG #:UP33FM
Max. Wheel Diameter
28"
Displacement
2 cu in
No. of Pistons
7
Relief Valve Setting
1000 PSI
Weight
11 lb
Barcode
702755021629
