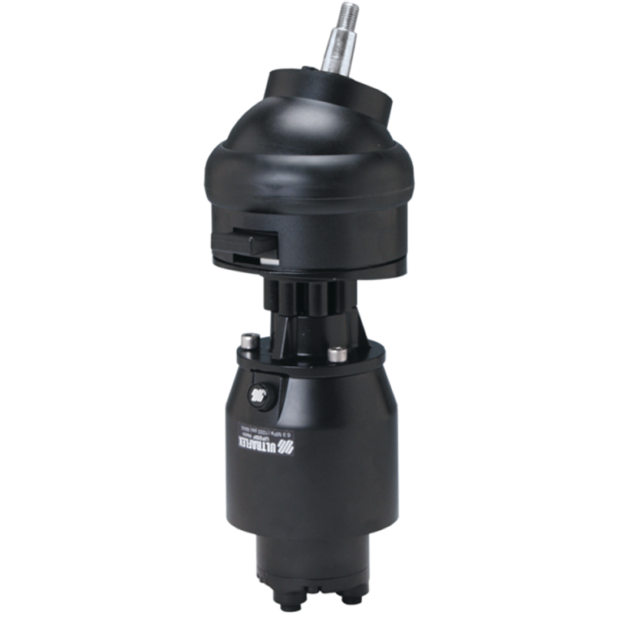

Tilt mount helm pump available in five different displacement sizes. Built-in lock valve for positive rudder lock, and integrated relief valve for over-pressure protection. 5/7 pistons, 1.5/1.7/2.0/2.4/2.7 cu.in displacement/revolution. X52 Tilt mechanism
• Ball bearing piston race
• Built-in lock valve for positive rudder lock
• Integrated relief valve for over-pressure protection
• Stainless steel shaft
• Easy accessible lock valve and shaft seal for replacement
• Cast iron rotor for greater durability and longer life
• Includes 90° adjustable fittings for 3/8” hose
• Tilt mechanism: X52 tilt range of 48° and five locking positions
• KIT F (optional): remote fill adapter
