ALAS I 12/24V Fuel Senders
New Product1

ALAS I 12/24V Fuel Senders

An Economical & Practical Solution For Fuel Monitoring

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).

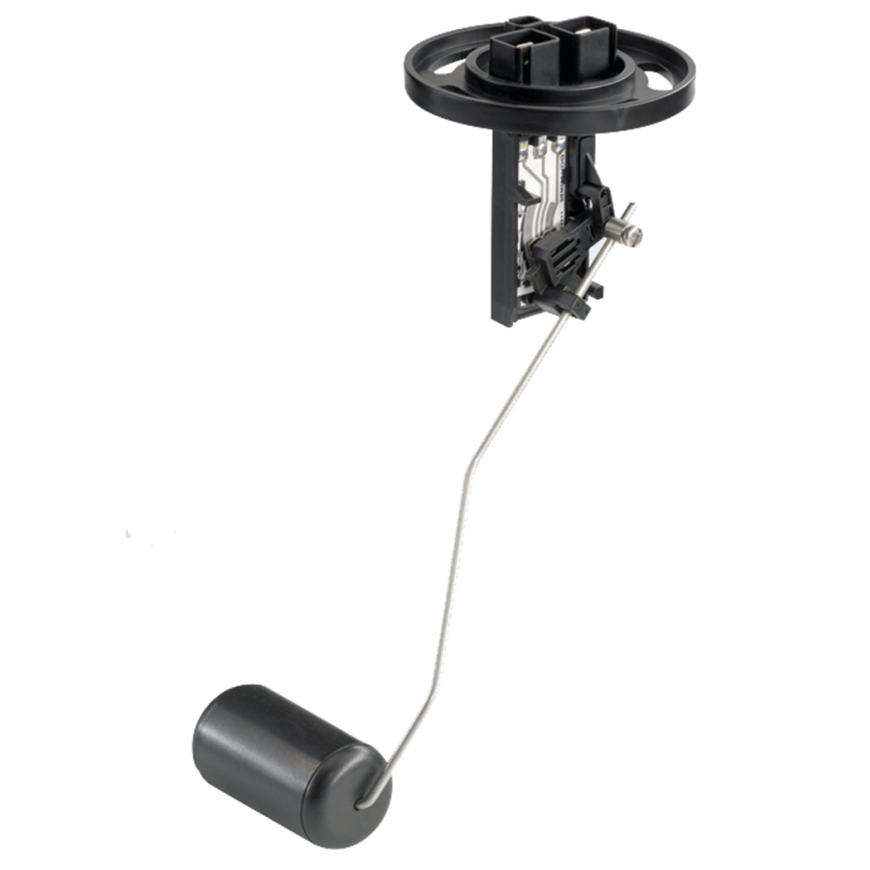

Engineered with a redundant dual wiper system, our unique VDO 'quiet arm’ and thick film technology, VDO ALAS I leads the field in reliability and durability. In fact, this family of senders has the ability to withstand over one million swing arm cycles without failure. ALAS I senders feature our unique slotted SAE five-hole flange mount, an industry first that gives you the utmost in versatility for sender mounting positions.
Three resistance values are available, 10-180 ohm, 240-33 ohm & 0-90 ohm. ALAS I senders are available with an optional low fuel warning contact circuit found in no other universal type sender.
• Available with low fuel warning contact
• Redundant ground connection
• Unique SAE 5-hole slotted mounting plate allows for positioning sender for left or right hand applications
• Stainless steel float arm and pivot adjusts from 5-1/2" to 15-3/4" (140mm to 400mm)
• No sink solid float
• Steel reinforced mounting hardware (included with single packed senders)
• VDO thick film element with 39-step resolution
• Redundant dual wiper system
• Quiet arm minimizes float movement
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDVDO Gauges#AvailabilityDescriptionUOMYour PriceQTY
431523VDO 226-162 226-162Loading...ALAS I 12/24V Fuel Senders With Low Fuel Warning Contact, 10-180 OhmLoading...
431439VDO 226-163 226-163Loading...ALAS I 12/24V Fuel Senders With Low Fuel Warning Contact, 240-33 OhmLoading...
431524VDO 226-164 226-164Loading...ALAS I 12/24V Fuel Senders With Low Fuel Warning Contact, 0-90 OhmLoading...
431440VDO 226-169 226-169Loading...ALAS I 12/24V Fuel Senders Without Low Fuel Warning Contact, 240-33 OhmLoading...
Add To Cart
